| 产品型号 | 规格书 | 产品图片 | 中心频率 (MHz) |
通带 (±KHz) |
通带衰减 (dB) |
阻带 (±KHz) |
阻带衰减 (dB) |
封装尺寸 长 x 宽 x 高 (mm) |
| DEI5632-3-4300MHz |
|
|
4300 | 200000 | -3 | 3700000 - 4900000 | -50 | 21 x 13 x 5.1 |
| DEI5750-1.4MHz |
|
|
1.4 | 1400.5 to 1402.5 | 3 | 1399.3 to 1405 | -45 | 76.2 x 26.9 x 22.5 |
| DEI5751-1.4MHz |
|
|
1.4 | 1398 to 1399.2 | 3 | 1400.7 | -45 | 76.2 x 26.9 x 22.5 |
| DEI5757-1.6MHz-30MHz |
|
|
1.6 to 30 | / | / | 35400 | 40 | 38.4 x 18.2 x 14.5 |
| DEI5758-51.2MHz |
|
|
51.2 | 14200 | -3 | 2000 to 30000 | / | 38.4 x 18.2 x 14.5 |
| DEI5787-113MHz |
|
|
113 | ±5 MHz | -3 | @78 MHz and 165 MHz | - 50 | 36 x 16.5 x 10 |
| DEI5787-113MHz-VIB |
|
|
113 | ±5 MHz | -3 | @78 MHz and 165 MHz | -50 | 36 x 16.5 x 10 |
| DEI5881-134.4MHz |
|
|
134.4 | 10000 | -3 | 15000 | -50 | 35 x 12 x 7 |
| DEI5882-132.475MHz |
|
|
132.475 | 10000 | -3 | 15000 | 50 | 35 x 12 x 7 |
| DEI5882-132.4MHz |
|
|
132.4 | 10000 | -3 | 15000 | -50 | 35 x 12 x 7 |

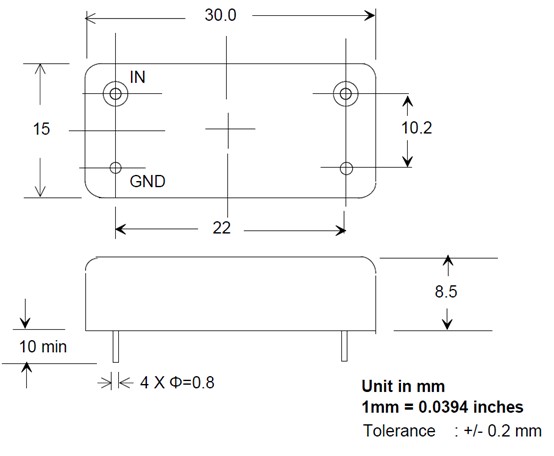

| DEI5883-75MHz |
|
|
75 | 11 | -3 | 33 | 60 | 30 x 15 x 8.5 |
| DEI5884-15.75MHz |
|
|
15.75 | ±1.1 | -3 | ±5 | 60 | 36 x 16 x 10 |
| LCF1000 |
|
|
21.4 | 500 | 3 | 2000 | 60 | 44.5 x 16.0 x 13.72 |
| LCF1001 |
|
|
113 | 5000 | 3 | 78000 to 165000 | 50 | 36.8 x 12.7 x 11.43 |
| LCF1002 |
|
|
220 | 25000 | 0.6 | 280000 to 1000000 | 40 | 22.9 x 10.2 x 8.89 |
| LCF1003 |
|
|
125 | 5000 | 3 | 250000 | 60 | 22.9 x 10.2 x 8.89 |
| LCF1005 |
|
|
400 to 470 | 400000 to 470000 | 0.5 | 800000 to 900000 | 50 | 135.0 x 25.0 x 50.0 |
| LCF1006 |
|
|
121.5 | 3000 | 3 | Fo -78700 | 65 | 25.4 x 13.5 x 10.7 |

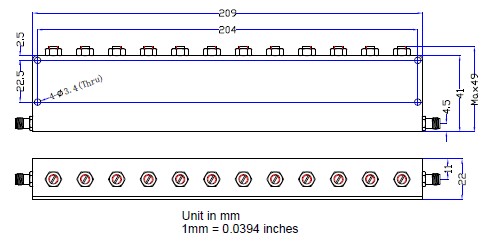

| NF20941BA-2315.9MHz-2349.1MHz-A |
|
|
2315.9 to 2349.1 |
DC to 2304.9MHz 2360.1 to 6600MHz |
1, 2.5 | 2315.9 to 2349.1MHz | 45 | 209 x 41 x 22 |
