晶振产品汇总 (XO)    当前位置:首页 >公司产品 >晶体振荡器 (XO) >晶振产品汇总 (XO)
产品型号 频率
(MHz)
输出类型 频率稳定度
(ppm)
供电电压
(V)
工作温度范围
(°C)
封装尺寸
长 x 宽 x 高
(mm)
产品类别 规格书 产品图片

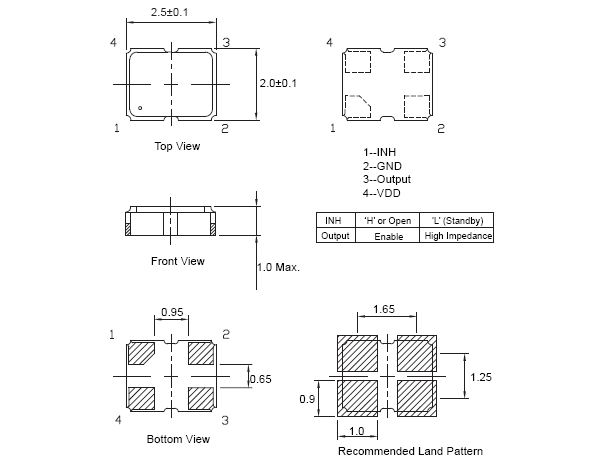

XO2520S-ET 1.25 to 100 CMOS 50 1.8, 2.5, 3.3 -55 to +125 2.5 x 2.0 x 1.0 Extended Temperature
XO3225S-ET 1.25 to 100 CMOS 50 1.8, 2.5, 3.3 -55 to +125 3.2 x 2.5 x 1.0 Extended Temperature
ETXOI-D 0.00001 to 110 HCMOS, TTL, Sinewave 100 1.2 to 18 0 to +210 4.5 height8-pin TO-5 leaded Extreme Temperature

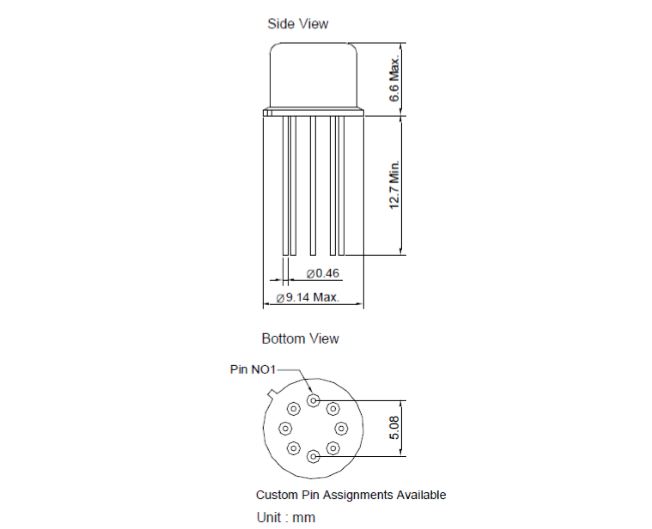

ETXOI-C 0.00001 to 110 HCMOS, TTL, Sinewave 100 1.2 to 18 0 to +210 6.6 height8-pin TO-5 leaded Extreme Temperature
ETXOI-A 0.00001 to 110 HCMOS, TTL, Sinewave 100 1.2 to 18 0 to +300 13.0 x 13.0Half-Dip Leaded Extreme Temperature

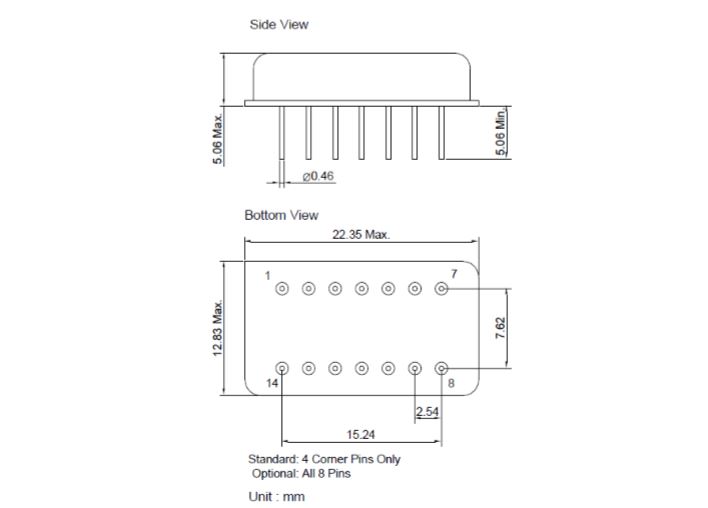

ETXOI-B 0.00001 to 110 HCMOS, TTL, Sinewave 100 1.2 to 18 0 to +300 22.4 x 12.8Full-Dip Leaded Extreme Temperature
ETXO7500I 0.000016 to 80 CMOS 60 1.8, 2.5, 3.3, 5 -100 to +230 7.2 x 5.0 SMD Extreme Temperature
ETXO3225I-32.768KHz 0.032768 CMOS -600 to +25 1.8 to 5.5 -55 to +150 3.2 x 2.5 SMD Extreme Temperature

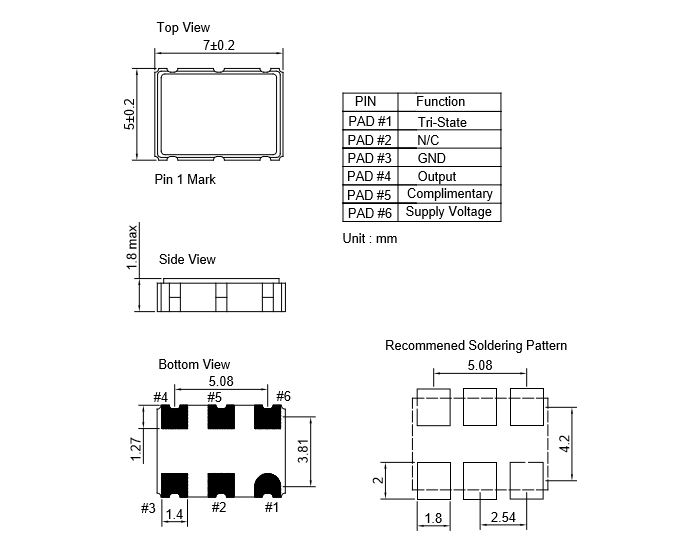

XO7500L-G2 40 to 200 LVDS 25 3.3 -40 to +85 7.0 x 5.0 x 1.8 Low Jitter
XO3001 19.44 to 320 LVDS, LVPECL 20 2.5, 3.3 -20 to +70-40 to +85 7.0 x 5.0 x 1.5 Low Jitter
XO5300S-CMOS 8 to 250 CMOS 25 2.5, 3.3 -40 to +85 5.0 x 3.2 x 1.3 Standard
XO5300S-LPLV 8 to 1500 LVDS, LVPECL 25 2.5, 3.3 -40 to +85 5.0 x 3.2 x 1.3 Standard

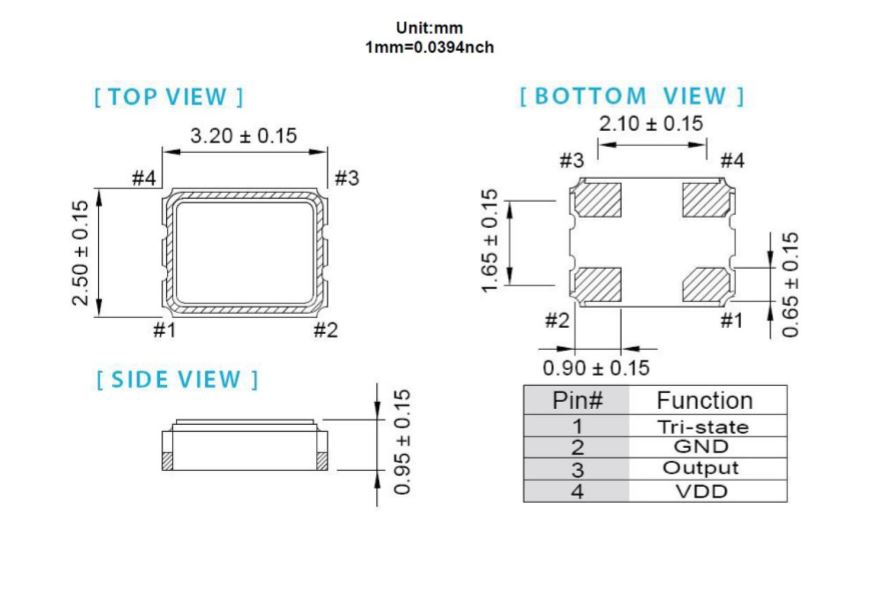

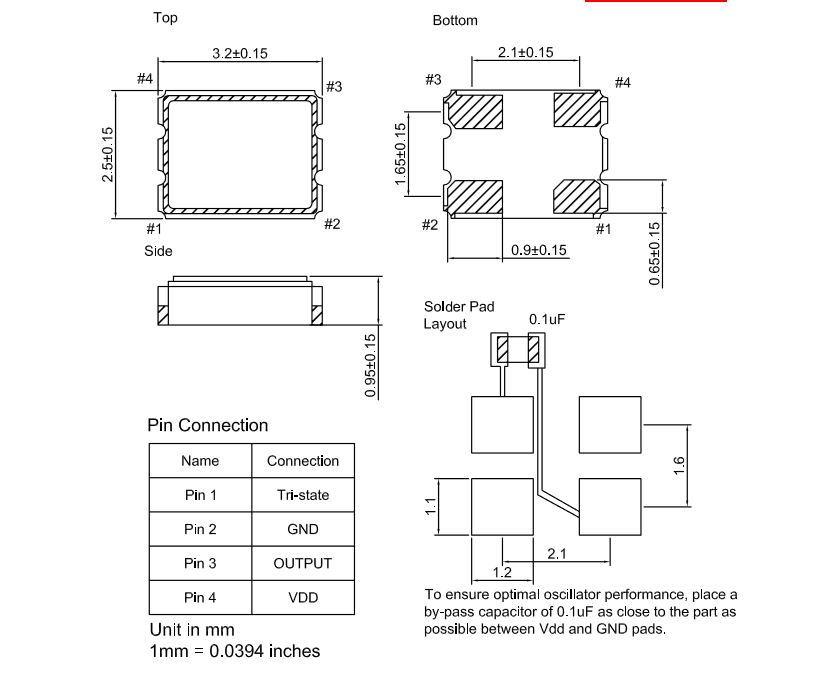

XO3225S 1.25 to 125 CMOS 20, 25, 50 1.8, 2.5, 3.3 -40 to +85 3.20 x 2.50 x 0.95 Standard

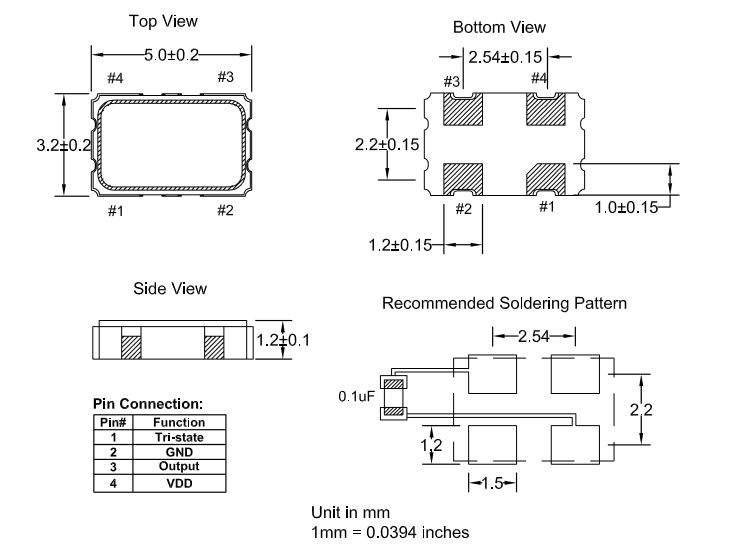

XO5300S 0.0137 to 160 CMOS 25 1.8, 2.5, 3.3 -40 to +85 5.0 x 3.2 x 1.2 Standard
XO7500S 0.0137 to 166 CMOS, LVPECL, LVDS 20, 25, 50 1.8, 2.5, 3.3 -40 to +125 7.0 x 5.0 x 1.3 SMD
XO7500R-125MHz-LV-A 125 LVDS 25 3.3 -40 to +85 7.0 x 5.0 x 1.8 SMD

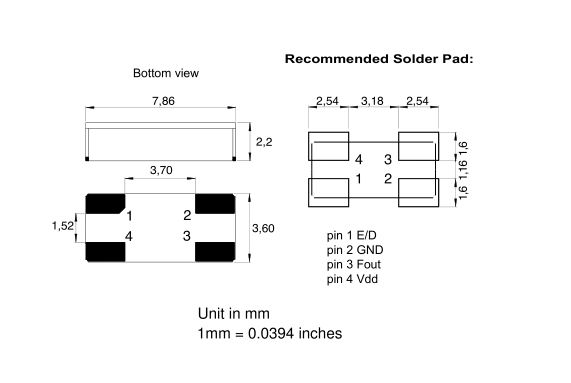

ETXO7836BZ 0.032 to 100 HCMOS 100, 150, 300, 400 2.5, 3.3, 5 -55 to +210 7.86 X 3.60 X 2.20 High Temperature

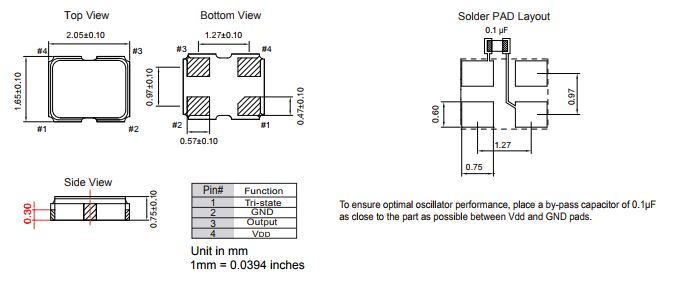

XO2016BM 1 to 200 CMOS 25 1.8, 2.5, 3.3 -40 to +85 2.05 x 1.65 x 0.75 Standard
XO3225BM-32.768KHz 0.032768 CMOS 50 1.8, 2.5, 3.3 -40 to +125 3.20 x 2.50 x 0.95 Standard

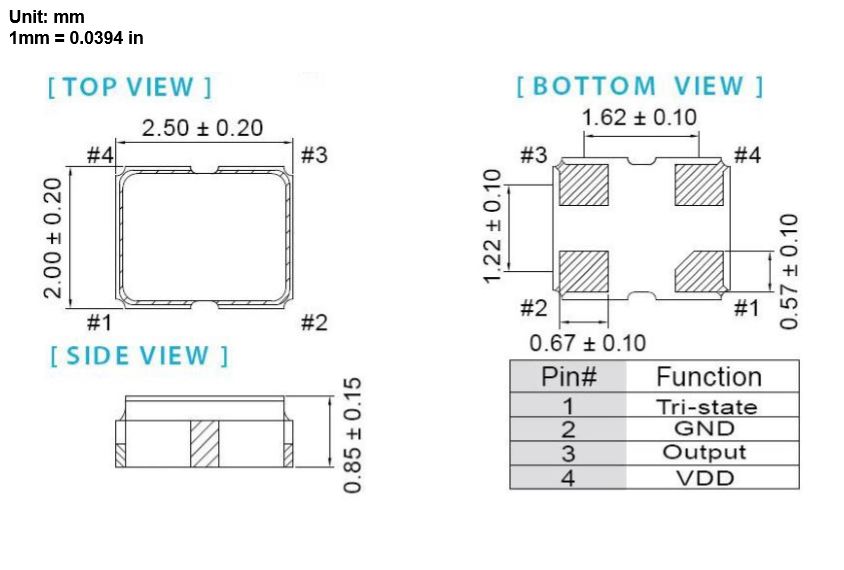

XO2520BM-32.768KHz 0.032768 CMOS 25 1.8, 2.5, 3.3 -40 to +85 2.50 x 2.00 x 0.81 Standard

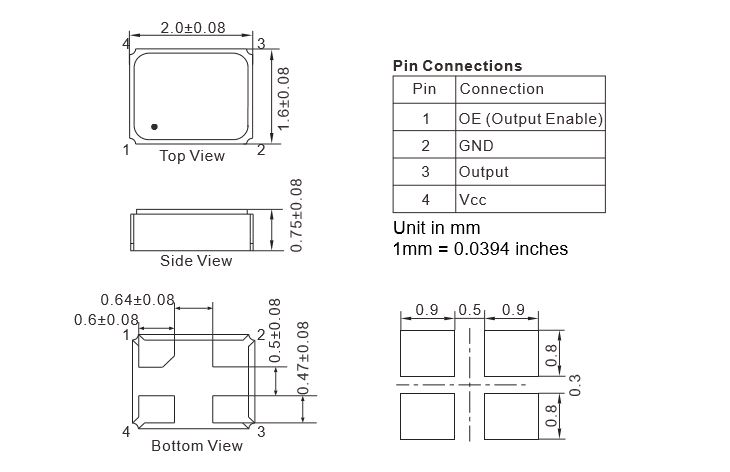

XO2016AL 4 to 54 CMOS 25, 50 1.8, 2.5, 3.3 -40 to +85 2.00 x 1.60 x 0.75 High Stability
XO2520AL 4 to 75 CMOS 25, 50 1.8, 2.5, 3.3 -40 to +85 2.5 x 2.0 x 0.8 High Stability
XO3225AL 1 to 125 CMOS 25, 50 1.8, 2.5, 3.3 -40 to +85 3.2 x 2.5 x 1.0 High Stability

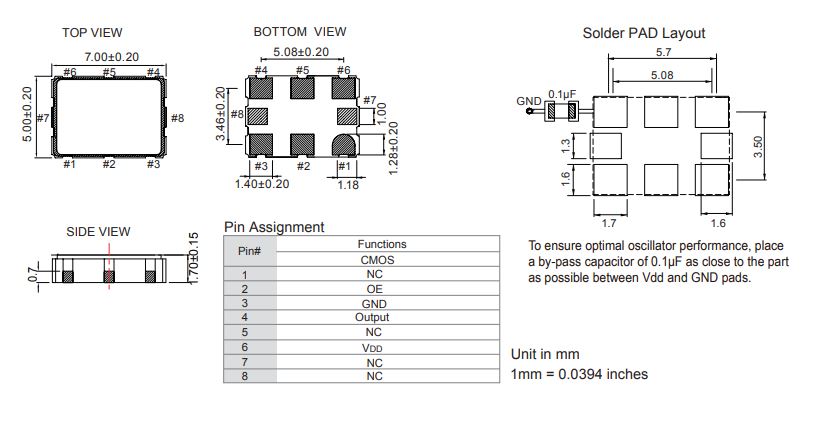

XO7500AL 1 to 170 CMOS 20, 25 1.8, 3.3, 5 -40 to +85 7.0 x 5.0 x 1.3 High Stability
XO5300AL 1 to 150 CMOS 25, 50 1.8, 2.5, 3.3 -40 to +85 5.0 x 3.2 x 1.2 High Stability

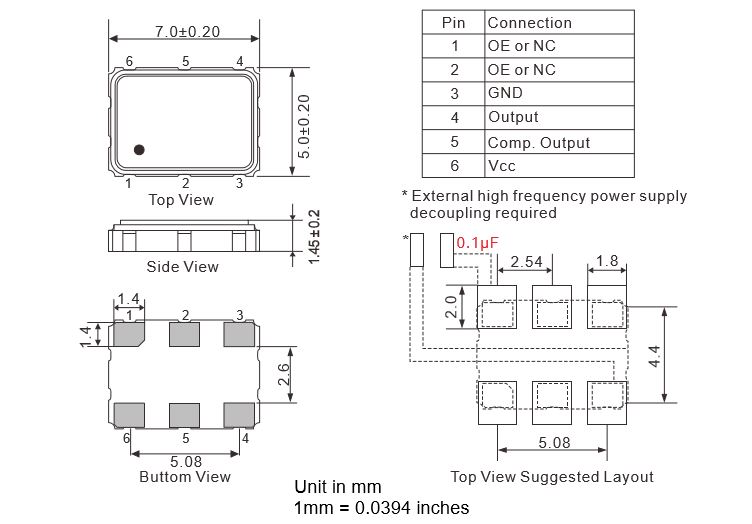

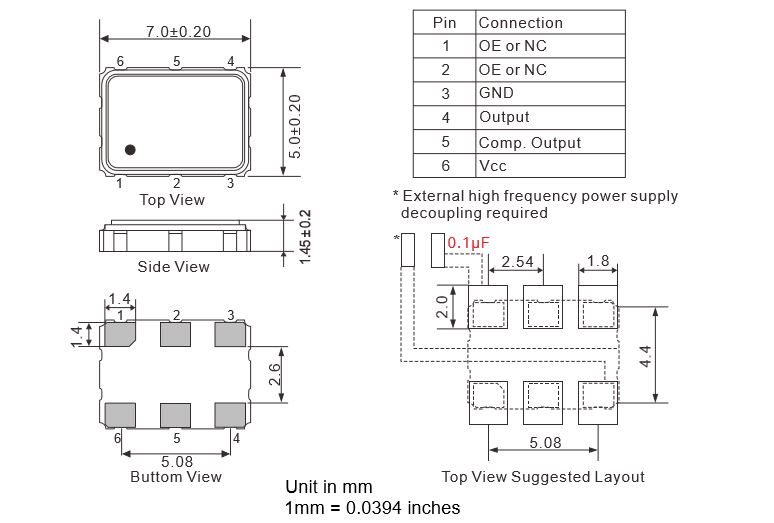

DXO7500AL_LVDS 10 to 1500 LVDS 25, 50 2.5, 3.3 -40 to +85 7.00 x 5.00 x 1.45 Standard
DXO7500AL_LVPECL 10 to 1500 LVPECL 25, 50 2.5, 3.3 -40 to +85 7.00 x 5.00 x 1.45 Standard
DXO7500AL_HCSL 25 to 200 HCSL 25, 50 2.5, 3.3 -40 to +85 7.00 x 5.00 x 1.45 Standard

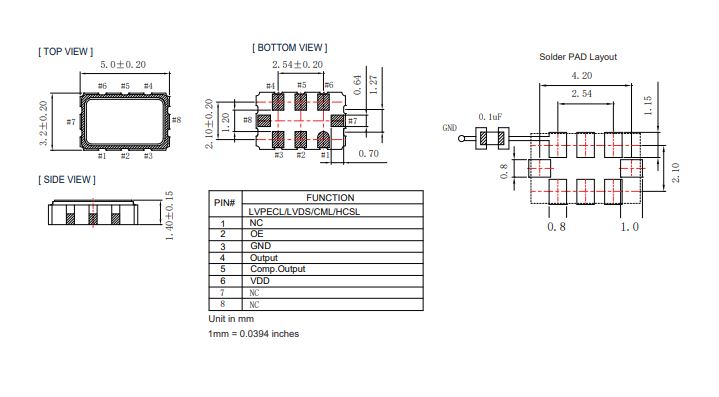

FXO5300BM-LVPECL 15 to 2100 LVPECL 20, 25, 30, 50 2.5, 3.3 -40 to +85 5.0 x 3.2 x 1.4 Standard
FXO5300BM-HCSL 15 to 700 HCSL 20, 25, 30, 50 1.8, 2.5, 3.3 -40 to +85 5.0 x 3.2 x 1.4 Standard
FXO5300BM-LVDS 15 to 2100 LVDS 20, 25, 30, 50 1.8, 2.5, 3.3 -40 to +85 5.0 x 3.2 x 1.4 Standard
FXO5300BM-CML 15 to 2100 CML 20, 25, 30, 50 1.8, 2.5, 3.3 -40 to +85 5.0 x 3.2 x 1.4 Standard
FXO5300BM-CMOS 15 to 250 CMOS 20, 25, 30, 50 1.8, 2.5, 3.3 -40 to +85 5.0 x 3.2 x 1.4 Standard

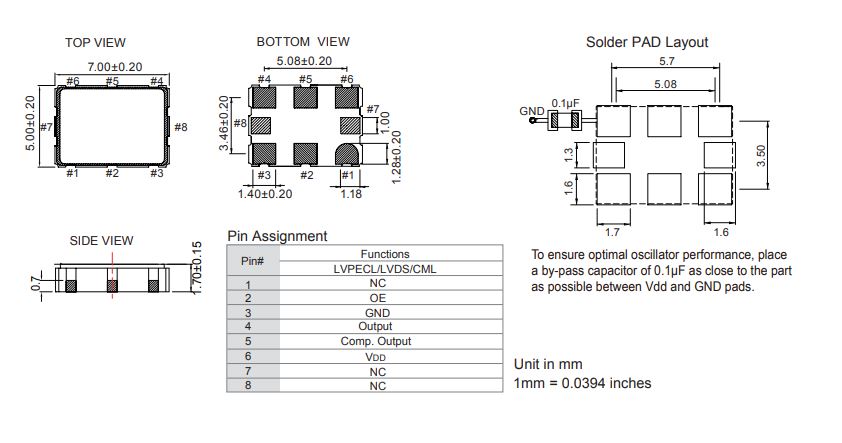

FXO7500BM-CMOS 15 to 250 CMOS 20, 25, 30, 50 1.8, 2.5, 3.3 -40 to +85 7.0 x 5.0 x 1.7 Low Phase Noise
FXO7500BM-CML 15 to 2100 CML 20, 25, 30, 50 1.8, 2.5, 3.3 -40 to +85 7.0 x 5.0 x 1.7 Low Phase Noise
FXO7500BM-LVDS 15 to 2100 LVDS 20, 25, 30, 50 1.8, 2.5, 3.3 -40 to +85 7.0 x 5.0 x 1.7 Low Phase Noise
FXO7500BM-LVPECL 15 to 2100 LVPECL 20, 25, 30, 50 2.5, 3.3 -40 to +85 7.0 x 5.0 x 1.7 Low Phase Noise
XO3226BM 19 to 60 CMOS 5, 10, 15 1.8, 2.5, 3.3 -40 to +85 3.20 x 2.50 x 0.95 Standard
XO2521BM 19 to 60 CMOS 5, 10, 15 1.8, 2.5, 3.3 -40 to +85 2.50 x 2.00 x 0.85 Standard

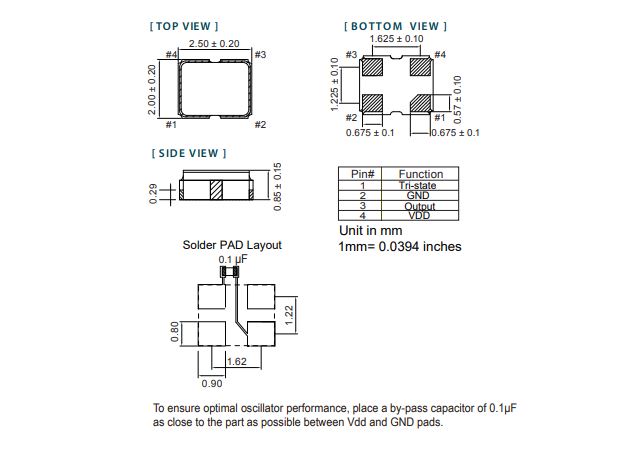

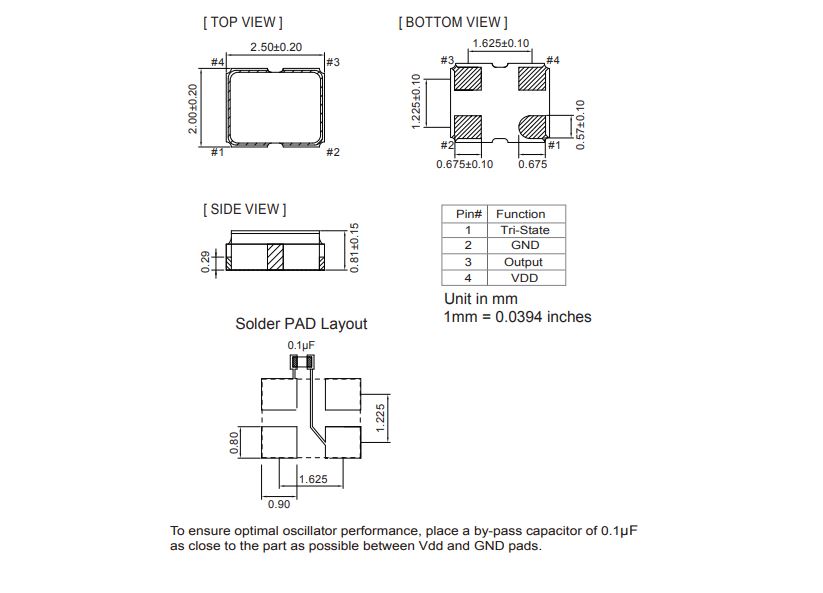

FXO2521BM-CMOS 1 to 200 CMOS 25 1.8, 2.5, 3.3 -40 to +105 2.50 x 2.00 x 0.81 Standard
FXO2017BM-CMOS 1 to 200 CMOS 25 1.8, 2.5, 3.3 -40 to +105 2.05 x 1.65 x 0.75 Standard
XO2520AT-6.5MHz-A 6.5 CMOS 50 5 -40 to +85 2.5 x 2.0 x 1.0 Standard
XO2520AT-20MHz-A 20 CMOS 50 5 -40 to +85 2.5 x 2.0 x 1.0 Standard
XO3225AL-76.8MHz-A 76.8 CMOS 20 3.3 -40 to +85 3.20 x 2.50 x 0.75 Ultra Small

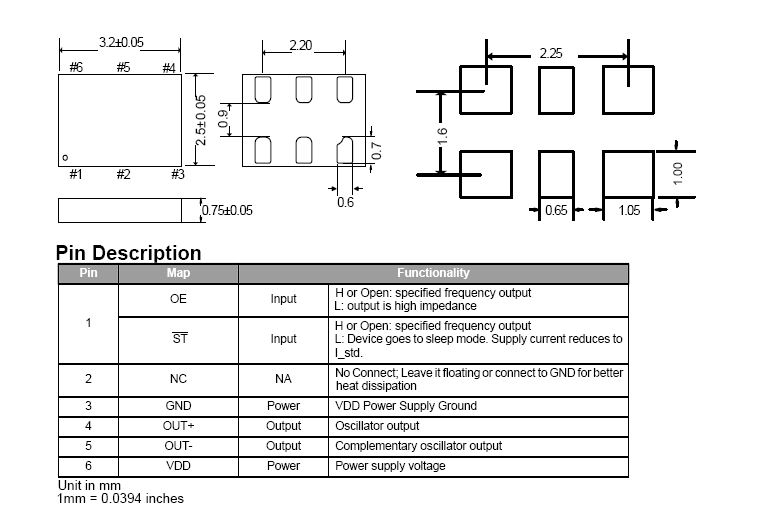

XO3225AL-LVDS-100MHz-A 100 LVDS 20 3.3 -40 to +85 3.20 x 2.50 x 0.75 Standard
XO7500AJ_LVDS 13.5 to 50
65 to 220
LVDS 25 2.5, 3.3 -40 to +85 7.0 x 5.0 x 1.8 Low Noise
XO7500AJ_LVPECL 13.5 to 50
65 to 220
LVPECL 25 3.3 -40 to +85 7.0 x 5.0 x 1.8 Low Noise

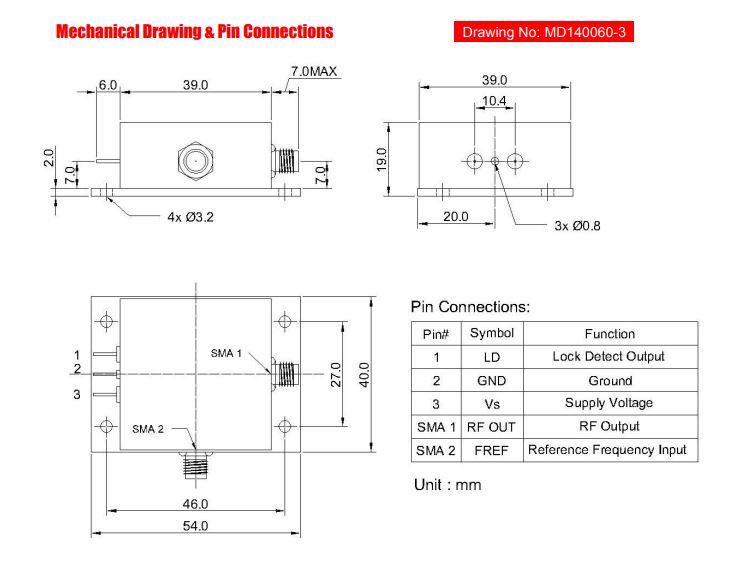

PLXO5440L-10-100-A 100 Sinewave 0.5 5 -40 to +85 54 x 54 x 19 Phase Locked

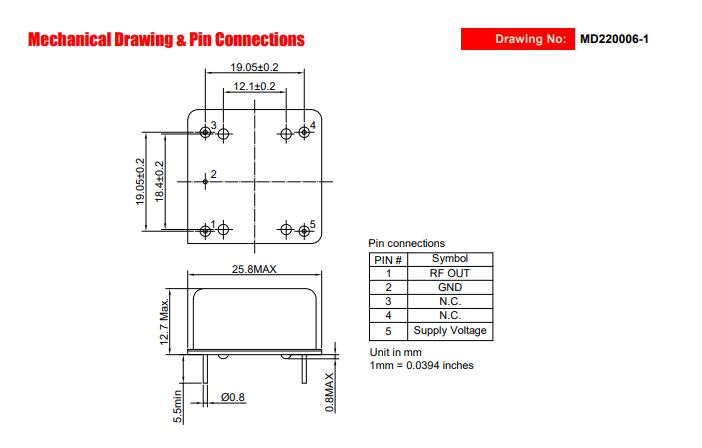

GXO2525BF-LN-1090MHz-A 1090 Sinewave 30 5 -40 to +85 25.8 x 25.8 x 12.7 High Frequency
XO3225AL-63.22MHz-A 63.22 CMOS 50 1.8 -40 to +85 3.2 x 2.5 x 1.2 Standard
XO2016BM-ULP-32.768KHz 0.032768 / 25 to 50 1.5, 1.8 -40 to +85 2.05 x 1.65 x 0.75 Low Power
XO2520BM-ULP-32.768KHz 0.032768 / 25 to 50 1.5, 1.8 -40 to +85 2.5 x 2.0 x 0.8 Low Power
XO2520BM01-LP 1 to 50 / 25 to 50 0.9, 1.2, 1.5 -40 to +85 2.50 x 2.00 x 0.81 Low Power
XO2016BM-ULP-32.768KHz-112 0.032768 / 25 1.8 -20 to +70 2.05 x 1.65 x 0.75 Ultra-low Power
XO2016BM-ULP-32.768KHz-212 0.032768 / 25 1.8 -40 to +85 2.05 x 1.65 x 0.75 Ultra-low Power
XO2016BM-ULP-32.768KHz-122 0.032768 / 50 1.8 -20 to +70 2.05 x 1.65 x 0.75 Ultra-low Power
XO2016BM-ULP-32.768KHz-222 0.032768 / 50 1.8 -40 to +85 2.05 x 1.65 x 0.75 Ultra-low Power
XO2520BM-ULP-32.768KHz-112 0.032768 / 25 1.8 -20 to +70 2.50 x 2.00 x 0.81 Ultra-low Power
XO2520BM-ULP-32.768KHz-122 0.032768 / 50 1.8 -20 to +70 2.50 x 2.00 x 0.81 Ultra-low Power
XO3225BM01-LP 1 to 50 CMOS 25 to 50 0.9, 1.2, 1.5 -40 to +85 3.20 x 2.50 x 0.95 Ultra-low Power
XO2520BM-ULP-32.768KHz-212 0.032768 / 25 1.8 -40 to +85 2.50 x 2.00 x 0.81 Ultra-low Power
XO2520BM-ULP-32.768KHz-222 0.032768 / 50 1.8 -40 to +85 2.50 x 2.00 x 0.81 Ultra-low Power
XO2520BM01-LP-10MHz-111 10 CMOS 25 0.9 -10 to +60 2.50 x 2.00 x 0.81 Ultra-low Power
XO2520BM01-LP-10MHz-121 10 CMOS 50 0.9 -10 to +60 2.50 x 2.00 x 0.81 Ultra-low Power
XO2520BM01-LP-10MHz-211 10 CMOS 25 0.9 -20 to +70 2.50 x 2.00 x 0.81 Ultra-low Power
XO2520BM01-LP-10MHz-221 10 CMOS 50 0.9 -20 to +70 2.50 x 2.00 x 0.81 Ultra-low Power
XO1490AL 1 to 170 CMOS 20 3.3 -40 to +85 14.0 x 9.6 x 5.6 SMD
XO7500BC-HT-32.768KHz-A 0032768 CMOS 175 3.3 -55 to +200 7.2 x 5.2 x 2.16 XO
