²Ʒ (TCXO)    ǰλãҳ >˾Ʒ >² (TCXO) >²Ʒ (TCXO)
Ʒͺ Ƶ
(MHz)
Ƶȶ
(ppm)
ѹ
(V)
¶ȷΧ
(C)
װߴ
x x
(mm)
Ʒ ƷͼƬ
TCXO7500S-ET 5 to 52 Clipped Sinewave, CMOS 2 3.3, 5 -40 to +85 7.0 x 5.0 x 2.0 Extended Temperature
TCXO2012S-UHS-xx.xxxMHz-A-B-C-D 10 to 40 Clipped Sinewave, CMOS 0.1 3.3, 5 -40 to +105 20.4 x 12.8 x 7.8 Extended Temperature
TCXO3413 1.6 to 156 LVCMOS 1 3.3 -40 to +85 7.0 x 5.0 SMD Low Phase Noise
TCXO2520S 10 to 52 Clipped Sinewave 0.5 1.8, 2.5, 2.8 -40 to +85 2.5 x 2.0 x 0.7 Standard
TCXO3225S 10 to 52 Clipped Sinewave 0.5 1.8, 2.5, 3 -40 to +85 3.2 x 2.5 x 0.9 Standard
TCXO5300S 10 to 52 HCMOS, Clipped Sinewave 0.5 3.3, 5 -40 to +85 5.0 x 3.2 x 1.1 Standard
TCXO7500S 5 to 52 HCMOS, Clipped Sinewave 0.5 2.5, 3.3 -40 to +85 7.0 x 5.0 x 1.9 Standard

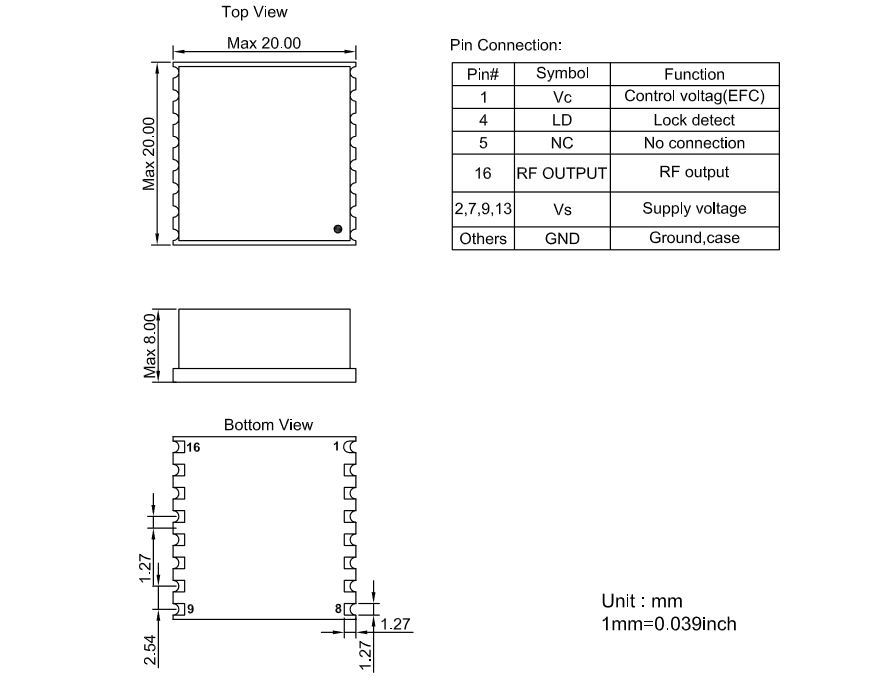

TCXO2020L-xMHz-y-z 500 to 2500 Sinewave 0.5 3.3, 5 -40 to +85 20 x 20 x 8 Integrated Module

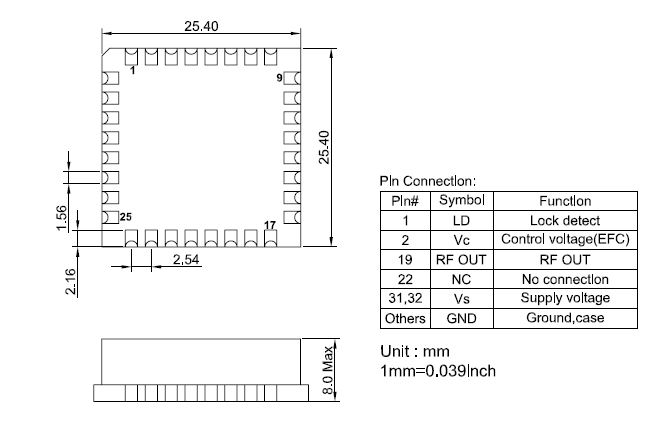

TCXO2525L-xMHz-y-z 500 to 2500 Sinewave 0.5 5 -40 to +85 25.4 x 25.4 x 8 Integrated Module
TCXO5440L 300 to 1300 Sinewave 0.5 12 -40 to +85 54 x 40 x 19 Integrated Module
TCXO5300AP_3.3V 10 to 40 Clipped Sinewave, CMOS 0.28 3.3 -40 to +85 5.0 x 3.2 x 1.5 High Stability
TCXO7500AP 10 to 52 CMOS 0.3 2.7 to 5.5 -40 to +85 7.5 x 5.0 x 1.85 High Stability
TCXO7500AP_3.3V 10 to 40 Clipped Sinewave, CMOS 0.28 3.3 -40 to +85 7.0 x 5.0 x 2.0 High Stability
TCXO5300AP 10 to 52 CMOS 0.5 to 2 2.7 to 5.5 -40 to +85 5.0 x 3.2 x 1.8 High Stability
TCXO2521S 9.5 to 60 CMOS 5 1.8, 2.5, 3.3 -40 to +90 2.5 x 2.0 x 0.85 SMD
TCXO2016S 10 to 52 Clipped Sinewave 0.5 1.8, 2.5, 3, 3.3 -40 to +85 2.0 x 1.6 x 0.8 SMD
TCXO7501S 5 to 52 Clipped Sinewave, CMOS 0.28 3.3, 5 -40 to +85 7.0 x 5.0 x 1.9 High Precision
TCXO3226S 9.5 to 60 CMOS 2.5 1.8, 2.5, 3.3 -40 to +85 3.2 x 2.5 x 0.95 SMD
TCXO3225BL-32.768KHz-A 0.032768 CMOS 5.0 3.3 -40 to +85 3.3 x 2.5 x 1.3 Standard
TCXO914BTLG_series 50 to 150 Sinewave 0.5 3.3 -40 to +85 14.0 x 9.0 x 6.7 High Stability
TCXO3225AO-25MHz-A-V 25 HCMOS 1.5 3.3 -40 to +85 3.2 x 2.5 x 1 Ultra-miniature SMD
TCXO7500BM-40MHz-B 40 CMOS 0.2 5 -20 to +70 7.0 x 5.0 x 1.9 High Stability
TCXO7500BL-30.72MHz-A 30.72 CMOS 0.5 3.3 -40 to +85 7.0 x 5.0 x 2.5 High Stability
TCXO914AW-100MHz-A 100 LVPECL 0.5 3.3 -40 to +85 14.3 x 9.3 x 6.2 High Stability
TCXO7500BT-50MHz-A-V 50 CMOS 0.28 3.3 -40 to +85 7.0 x 5.0 x 1.8 Highly Reliable
TCXO5302BM 10 to 52 Clipped Sinewave, CMOS 0.1 2.5, 3.3 -40 to +105 5.0 x 3.2 x 1.85 High Precision
TCXO7502BM 10 to 52 Clipped Sinewave, CMOS 0.1 2.5, 3.3 -40 to +95 7.0 x 5.0 x 1.9 High Precision
TCXO7500BTLG 5 to 52 Clipped Sinewave, CMOS 0.5 2.8, 3, 3.3, 5 -40 to +85 7.0 x 5.0 x 1.9 Low G-sensitive
TCXO7501BTLG 5 to 100 Clipped Sinewave, CMOS 0.5 2.8, 3, 3.3, 5 -40 to +85 7.0 x 5.0 x 1.75 Low G-sensitive
TCXO2522BJ-400MHz-A-V 400 Sinewave 1 5 -40 to +85 25.4 x 22.0 x 12.8 High Stability
TCXO3225BL-25MHz-A-V 25 LVDS 1 3.3 -40 to +85 3.2 x 2.5 x 1.6 High Stability
TCXO2520BL 10 to 52 Clipped Sinewave 1 1.8, 2.5, 2.8, 3, 3.3 -40 to +85 2.5 x 2.0 x 0.8 High Stability
TCXO2520BM-40MHz-B-V 40 Clipped Sinewave 0.5 1.8 -20 to +75 2.5 x 2.0 x 0.7 Standard
TCXO2520BM-40MHz-A-V 40 Clipped Sinewave 0.5 1.8 -40 to +85 2.5 x 2.0 x 0.7 Standard
TCXO2017BM 10 to 52 Clipped Sinewave 0.2 1.8, 2.5, 2.8, 3, 3.3 -40 to +85 2.05 x 1.65 x 0.7 Standard
TCXO914CELN 10 to 120 CMOS, Sinewave 1 3.3, 5 -40 to +85 14.2 x 9.2 x 6 Low Phase Noise
TCXO1196BE_Sine 10 to 50 Sinewave 0.5 3.3, 5 -40 to +85 11.4 x 9.6 x 4.5 Standard
TCXO1196BE_HCMOS 0.001 to 800 HCMOS 0.5 3.3 -40 to +85 11.4 x 9.6 x 4.5 Standard
TCXO1212BE_Sine 10 to 50 Sinewave 0.5 3.3, 5 -40 to +85 12.7 x 12.7 x 5.1 Standard
TCXO1212BE_HCMOS 0.001 to 800 HCMOS 0.5 3.3, 5 -40 to +85 12.7 x 12.7 x 5.1 Standard
TCXO1812BE_Sine 6 to 190 Sinewave 0.5 3.3, 5 -40 to +85 18.5 x 12.0 x 8.5 Standard
TCXO1812BE_HCMOS 0.001 to 800 HCMOS 0.5 3.3, 5 -40 to +85 18.5 x 12.0 x 8.5 Standard
TCXO7500BT-12.8MHz-A 12.8 CMOS 0.5 3.3 -40 to +85 7.0 x 5.0 x 1.75 Standard
TCXO5300BT-10MHz-A-V 10 CMOS 0.25 3.3 -40 to +85 5.0 x 3.2 x 1.7 High Precision
TCXO7500BT-50MHz-B-V 50 Clipped Sinewave 1 3.3 -40 to +85 7.0 x 5.0 x 1.75 High Precision
TCXO3225CI-26MHz-A 26 Clipped Sinewave 0.5 3.3 -30 to +85 3.2 x 2.5 x 1.2 High Precision
TCXO7500BT-26MHz-A 26 (LV)CMOS 0.2 3.3 -40 to +85 7.0 x 5.0 x 1.75 High Precision
TCXO5300BJ-STR3-25MHz-A 25 HCMOS 0.28 3.3 -40 to +85 5.0 x 3.2 x 1.65 High Stability
TCXO2013BE-80MHz-A 80 Sinewave 1 5 -20 to +70 20.7 x 13.06 x 7.5 Sinewave
TCXO7500BT-50MHz-C-V 50 CMOS 0.5 3.3 -40 to +85 7.0 x 5.0 x 1.75 High Precision
TCXO7500BT-50MHz-D-V 50 CMOS 0.5 3.3 -40 to +85 7.0 x 5.0 x 1.75 High Precision
TCXO3225CK-13MHz-A 13 Clipped Sinewave 2 3.3 -30 to +75 3.2 x 2.5 x 0.9 Standard
TCXO5300BT-CS-26MHz-A 26 CMOS 0.2 3.3 -40 to +55 5.0 x 3.2 x 1.7 COSPAS SARSAT
TCXO914CELN 10 to 120 CMOS 0.2 to 1 3.3, 5 -40 to +85 14.2 x 9.2 x 6.0 Low Noise
TCXO5234CL-16MHz-A-V 16 CMOS 1 3.3 -40 to +85 5.1 x 3.4 x 2.0 High Precision
TCXO5300BT-32MHz-A 32 CMOS 0.5 3.3 -20 to +70 5.0 x 3.2 x 1.7 High Precision
DE200 32 CMOS 0.25 5 -40 to +85 7.0 x 5.0 x 2.0 High Precision
HTXO3225S-16MHz-A 16 CMOS 0.5 3.3 -55 to +125 3.2 x 2.5 x 1.2 High Temperature
MTCXO1000 0.625 to 320 HCMOS, Clipped Sinewave 0.05 5 -40 to +85 20.8 x 13.2 x 16.0 VHF
MTCXO1004 0.625 to 800 HCMOS, Sinewave 0.05 5 -40 to +85 20.7 x 20.7 x 10.8 VHF
MTCXO1005 0.625 to 320 HCMOS, Sinewave 0.05 5 -40 to +85 25.4 x 22.0 x 12.7 VHF
MTCXO1006 1.25 to 77.76 HCMOS, Sinewave 0.05 5 -40 to +85 14.6 x 9.0 x 7.5 VHF
T5300TMP-16.32MHz-A-V 16.32 CMOS 0.5 3.3 -40 to +85 5.0 x 3.2 x 1.55 Low Noise
T5300TMP-16.32MHz-B-V 16.32 Clipped Sinewave 0.5 3.3 -40 to +85 5.0 x 3.2 x 1.55 Low Noise
TCVCXO3261 10 Clipped Sinewave 0.25 3.3 -40 to +85 7.0 x 5.0 x 2.0 Miniature
TCXO1000IM-9.6MHz 9.6 Sinewave 0.6 5 -42 to +70 25 x 15 x 5 Standard
TCXO1000IM-9.6MHz-B 9.6 Sinewave 0.6 5 -30 to +60 25 x 15 x 5 Standard
TCXO1000IM-9.6MHz-C 9.6 Sinewave 0.6 5 -20 to +70 25 x 15 x 4.8 Standard
TCXO1000QST3 25 CMOS 0.28 3.3 -40 to +85 7.0 x 5.0 x 2.0 Stratum III
TCXO1000QST3-20MHz 20 CMOS 0.28 3.3 -40 to +85 7.0 x 5.0 x 2.0 Stratum III
TCXO1000QST3-25MHz 25 CMOS 0.28 3.3 -40 to +85 7.0 x 5.0 x 2.0 Stratum III
TCXO119KP 10 to 50 Sinewave 0.5 3.3, 5 -40 to +85 11.4 x 9.6 x 4.5 SMD
TCXO119KP-12.8MHz-A-V 12.8 Clipped Sinewave 1.5 5 -20 to +70 11.4 x 9.6 x 2.3 SMD
TCXO119KPH 0.001 to 800 HCMOS 1 3.3, 5 -40 to +85 11.4 x 9.6 x 2.3 SMD
TCXO119KPH6 1.25 to 50 HCMOS 0.5 3.3, 5 -40 to +85 11.4 x 9.6 x 4 SMD
TCXO1212DG-40.96MHz-A-V 40.96 CMOS 1 3.3 -40 to +85 13.2 x 13.2 x 11.3 Standard
TCXO1301 2 to 120 HCMOS, Sinewave 1 3.3 -40 to +85 5.0 x 3.2 x 1.7 High Frequency
TCXO1302 2 to 120 HCMOS, Sinewave 1 5 -40 to +85 19.9 x 13.0 x 7.5 High Frequency
TCXO1303 2 to 80 HCMOS, Sinewave 1 3.3 -40 to +85 25.4 x 22.0 x 12.8 Long Term Stability
TCXO1304 2 to 120 HCMOS, Sinewave 1 5 -40 to +85 25.4 x 22.0 x 12.8 Low Aging
TCXO1305 2 to 125 HCMOS 1 3.3 -40 to +85 20.27 x 12.65 x 14.09 High Frequency
TCXO1306 2 to 125 HCMOS 1 5 -40 to +85 20.27 x 12.65 x 14.09 High Frequency
TCXO1307 2 to 105 HCMOS, Sinewave 1 3.3 -40 to +85 20.2 x 20.2 x 14.66 High Frequency
TCXO1308 2 to 105 HCMOS, Sinewave 1 3.3 -40 to +85 20.2 x 20.2 x 14.66 High Frequency
TCXO1309 2 to 150 HCMOS, Sinewave 1 12 -40 to +85 36 x 27 x 11.05 High Frequency
TCXO1310 2 to 150 HCMOS, Sinewave 1 3.3 -40 to +85 36 x 27 x 11.05 High Frequency
TCXO1311 2 to 150 HCMOS, Sinewave 1 5 -40 to +85 36 x 27 x 11.05 High Frequency
TCXO1487K-100MHz-A-V 100 Clipped Sinewave 1 5 -40 to +85 14.3 x 7.0 x 5.5 Standard
TCXO1490BF-41MHz-A-V 41 Sinewave 0.5 5 0 to +50 14.3 x 8.7 x 5.5 High Stability
TCXO1612CG-26MHz-A 26 Clipped Sinewave 0.5 1.8 -30 to +85 1.65 x 1.25 x 0.55 High Precision

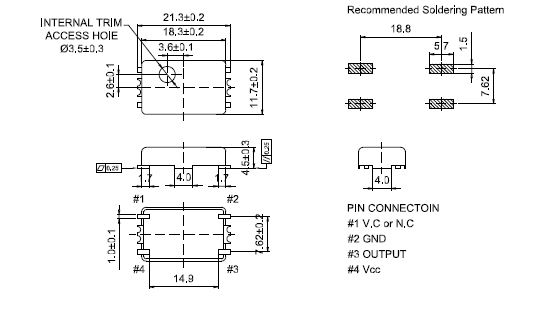

TCXO1811S-28MHz 28 Clipped Sinewave 1.5 5 -40 to +85 21.3 x 11.7 x 4.5 Low Noise
TCXO2012BL-40.92MHz-A-V 40.92 HCMOS 0.5 3.3 -20 to +70 20.2 x 12.8 x 13.85 High Stability
TCXO2012S_series 10 to 40 Clipped Sinewave, CMOS 0.03 3.3, 5 -40 to +105 20.4 x 12.8 x 14.2 High Stability
TCXO2012S-UHS-xx.xxxMHz-A-B-C-D 10 to 40 Clipped Sinewave, CMOS 0.03 3.3, 5 -40 to +105 20.4 x 12.8 x 14.2 Ultra Stable
TCXO2012T-1.544MHz-A-V 1.544 LVCMOS 1.5 3.3 0 to +70 20.4 x 12.8 x 14.2 Low Noise
TCXO2013H-100MHz-A-V 100 Sinewave 5 5 -40 to +85 20.8 x 13.2 x 10 High Frequency
TCXO2013IQ-30MHz-A-V 30 HCMOS 0.5 5 -20 to +55 20.7 x 13.06 x 7.5 HCMOS
TCXO2013IQ-36.864MHZ-A-V 36.864 HCMOS 0.5 5 -20 to +55 20.7 x 13.06 x 7.5 Standard
TCXO2013K-12MHz-A 12 Sinewave 1 5 -40 to +85 20.7 x 13.06 x 7.5 High Performance
TCXO2013K-21.855MHz-A 21.855 Sinewave 1 5 -40 to +85 20.7 x 13.06 x 7.5 High Performance
TCXO2013K-36.55MHz-A 36.55 Sinewave 1 5 -40 to +85 20.7 x 13.06 x 7.5 High Performance
TCXO2013K-38.4MHz-B-V 38.4 HCMOS 0.5 3.3 -40 to +85 20.7 x 13.06 x 7.5 High Stability
TCXO2016AO-20MHz-A-V 20 Clipped Sinewave 1 3.3 -40 to +85 2.05 x 1.65 x 0.70 Miniature
TCXO2016S_series 10 to 52 Clipped Sinewave 0.5 3.3 -40 to +85 2.0 x 1.6 x 0.8 Miniature
TCXO2020AM-26MHz-A 26 Squarewave 2.5 3.3 -30 to +85 20.4 x 20.4 x 10.7 Squarewave
TCXO2020AM-26MHz-B 26 Squarewave 1 3.3 -20 to +70 20.4 x 20.4 x 10.7 High Stability
TCXO2020K-10MHz-A-V 10 Clipped Sinewave 2.5 5 -30 to +75 20 x 20 x 10 Low Power Consumption
TCXO2020K-10MHz-B-V 10 Clipped Sinewave 2 5 -30 to +75 20 x 20 x 10 Low Power Consumption
TCXO2020K-18.432-110.592MHz 18.432 to 110.592 Sinewave 0.5 5 -40 to +80 20.7 x 20.7 x 10.0 High Stability
TCXO2020KP 1.8432 to 190 Sinewave 0.5 3.3, 5 -40 to +85 20 x 20 x 5 High Frequency
TCXO2515KP-25.6MHz-A 25.6 Sinewave 0.3 5 -40 to +65 25.75 x 15.45 x 5.6 Ultra Stable
TCXO2515KP-9.6MHz 9.6 Sinewave 0.25 5 -40 to +70 25.2 x 15.2 x 5.6 Ultra Stable
TCXO2520AO-26MHz-A-V 26 Clipped Sinewave 0.5 2.8 -30 to +85 2.5 x 2.0 x 0.8 Miniature
TCXO2520AO-26MHz-B-V 26 Clipped Sinewave 0.5 3.3 -30 to +85 2.5 x 2.0 x 0.8 Miniature
TCXO2520E 13 to 52 Clipped Sinewave 0.5 1.8, 3.3 -40 to +85 2.5 x 2.0 x 0.8 High Stability
TCXO2520E-16.32MHz-A-V 16.32 Clipped Sinewave 0.5 3.3 -40 to +85 2.5 x 2.0 x 0.8 High Performance
TCXO2520S_series 10 to 52 Clipped Sinewave 0.5 1.8, 2.5, 2.8 -40 to +85 2.5 x 2.0 x 0.7 High Stability
TCXO2520S-10MHz-A-V 10 Clipped Sinewave 0.5 3 -40 to +85 2.5 x 2.0 x 0.7 High Stability
TCXO2520S-26MHz-A-V 26 Clipped Sinewave 0.5 3 -40 to +85 2.5 x 2.0 x 0.7 High Stability
TCXO2520S-26MHz-C 26 CMOS 2.5 1.8 -40 to +85 2.5 x 2.0 x 0.85 Miniature
TCXO2520V-10MHz-B-V 10 Sinewave 1 3.3 -30 to +85 2.5 x 2.0 x 0.9 Sinewave
TCXO2520V-10MHz-C-V 10 Clipped Sinewave 1.5 3.3 -40 to +85 2.5 x 2.0 x 0.9 Miniature
TCXO2521S_series 9.5 to 60 CMOS 2.5 1.8, 2.5, 3.3 -40 to +85 2.5 x 2.0 x 0.85 Miniature
TCXO2522P-500MHz-A 500 Sinewave 0.5 3.3 -20 to +70 25.4 x 22.0 x 10.5 High Stability

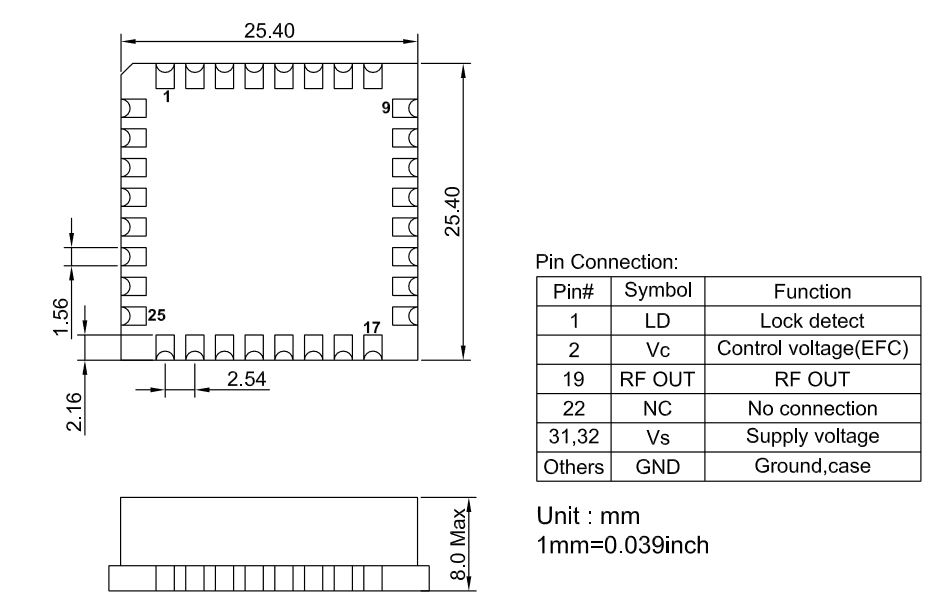

TCXO2525L-xMHz-y-z 500 to 2500 Sinewave 0.5 5 -40 to +85 25.4 x 25.4 x 8.0 High Stability
TCXO3080 10 to 800 LVDS 0.5 3.3 -40 to +85 14.2 x 9.1 x 7.6 UHF
TCXO3081 10 to 50 CMOS 1 3.3, 5 -40 to +85 20.2 x 12.6 x 8.8 CMOS
TCXO3116 9.6 Clipped Sinewave 0.3 5 -40 to +85 19.8 x 11.5 x 5.5 High Stability
TCXO3118 10 Clipped Sinewave 0.5 5 -40 to +85 7.0 x 5.0 x 0.8 Clipped Sinewave
TCXO3126 9.6 Sinewave 0.5 3.3 -40 to +85 20.6 x 13.0 x 7.62 High Stability
TCXO3172 9.6 Clipped Sinewave 0.2 5 -40 to +85 19.8 x 11.5 x 5.5 High Stability
TCXO3178 2 to 50 HCMOS, Clipped Sinewave 0.5 5 -55 to +85 7.0 x 5.0 x 2.0 High Stability
TCXO3179 2 to 50 HCMOS, Clipped Sinewave 1 5 -40 to +85 7.0 x 5.0 x 2.0 SMD
TCXO3185 6.4 to 52 LVCMOS, Clipped Sinewave 0.5 3.3 0 to +70 7.0 x 5.0 x 2.0 Telecom Performance
TCXO3186 12.8 LVCMOS 0.28 3.3 0 to +70 7.0 x 5.0 x 2.0 High Precision
TCXO3189 19.2 HCMOS 0.25 5 -40 to +85 7.0 x 5.0 x 2.0 Standard
TCXO3190 9.6 Clipped Sinewave 0.25 5 -40 to +85 7.0 x 5.0 x 2.0 Standard
TCXO3200 75 Sinewave 1 12 -40 to +85 20.5 x 20.5 x 10.0 Sinewave
TCXO3200M 9.6 to 40 Clipped Sinewave 1 2.8, 3, 5 -40 to +85 3.2 x 2.5 x 1.3 Miniature
TCXO3200T 10 to 40 Clipped Sinewave 1 1.8, 3.3, 5 -40 to +85 3.2 x 2.5 x 1.2 Miniature
TCXO3200T-16.320000MHz 16.32 Clipped Sinewave 1 3.3 -40 to +85 3.2 x 2.5 x 1.2 Miniature
TCXO3200T-16.368000-10-0-1 16.368 Clipped Sinewave 1 3 -40 to +85 3.2 x 2.5 x 1.2 Miniature
TCXO3200T-19.200000-9-0-1 19.2 Clipped Sinewave 1.5 3 -40 to +85 3.2 x 2.5 x 1.2 Miniature
TCXO7500CL-40MHz-A-V 40 CMOS 0.5 3.3 -30 to +85 7.1 x 5.0 x 2.2 High Precision
TCXO914BE-100MHz-B-V 100 Sinewave 1 5 -40 to +85 14.3 x 8.7 x 5.5 High Stability
TCXO914BT-100MHz-A 100 Sinewave 1 3.3 -40 to +85 14.0 x 9.0 x 6.5 Low Noise
TCXO7500CL-37.4MHz-A 37.4 LVCMOS 0.5 3.3 -20 to +70 7.0 x 5.0 x 1.9 High Precision
TCXO7500CL-26MHz-A 26 LVCMOS 0.5 3.3 -20 to +70 7.0 x 5.0 x 1.9 High Precision
TCXO3225AJ-18.432MHz-A 18.432 CMOS 1 3.3 -40 to +85 3.2 x 2.5 x 1.0 Miniature
TCXO3225BL-48MHz-A-V 48 LVCMOS 2.5 3.3 -40 to +85 3.2 x 2.5 x 1.6 Miniature
TCXO3225R-2.5V-LVCMOS-xMHz-y 10 to 245 LVCMOS 2.5 2.5 -40 to +85 3.2 x 2.5 x 1.6 Miniature
TCXO3225R-3.3V-LVCMOS-xMHz-y 10 to 245 LVCMOS 2.5 3.3 -40 to +85 3.2 x 2.5 x 1.6 Miniature
TCXO3225S_series 10 to 52 Clipped Sinewave 0.2 1.8, 2.5, 3 -40 to +85 3.2 x 2.5 x 0.9 Miniature
TCXO3225S-22MHz-A 22 Clipped Sinewave 1 3.3 -40 to +85 3.2 x 2.5 x 0.9 Miniature
TCXO3225S-26MHz-A-V 26 Clipped Sinewave 0.5 2.8 -20 to +70 3.2 x 2.5 x 0.9 Miniature
TCXO3225S-32MHz-A 32 Clipped Sinewave 1.5 3.3 -40 to +85 3.2 x 2.5 x 0.9 Miniature
TCXO3225S-40MHz-A 40 Clipped Sinewave 0.5 1.8 -40 to +85 3.2 x 2.5 x 0.9 Miniature
TCXO3225T-10MHz-A-V 10 Clipped Sinewave 1 3 -40 to +85 3.2 x 2.5 x 0.9 High Stability
TCXO3225T-10MHz-B-V 10 Clipped Sinewave 0.5 3.3 -40 to +85 3.2 x 2.5 x 0.9 High Stability
TCXO3225T-40.96MHz-A-V 40.96 Clipped Sinewave 0.5 3.3 -40 to +85 3.2 x 2.5 x 0.9 High Stability
TCXO3226S_series 9.5 to 60 CMOS 2.5 1.8, 2.5, 3.3 -40 to +105 3.2 x 2.5 x 0.95 Miniature
TCXO3275 10 Clipped Sinewave 0.5 2.85 -40 to +85 3.2 x 2.5 x 1.2 High Stability
TCXO3277 28.8 Clipped Sinewave 0.5 3 -40 to +85 3.2 x 2.5 x 1.2 High Stability
TCXO3302 20 Clipped Sinewave 2 5 -40 to +85 18.6 x 11.0 x 8.6 Clipped Sinewave
TCXO3305 20 Sinewave 0.45 5 -30 to +55 20.82 x 13.08 x 8.76 High Stability
TCXO3306-10.245 MHz 10.245 Clipped Sinewave 2 3 -40 to +85 5.0 x 3.2 x 1.2 Miniature
TCXO3401 10 to 40 HCMOS, Clipped Sinewave 0.1 5 -40 to +85 20.3 x 12.7 x 8.1 High Stability
TCXO3402 6.4 to 52 HCMOS, Clipped Sinewave 0.25 3.3 -40 to +85 7.0 x 5.0 x 2.0 Precision Reference
TCXO3403-10.000MHz-A 10 Clipped Sinewave 0.5 3.3 -40 to +85 7.0 x 5.0 x 2.0 Miniature
TCXO3403A 10 to 32 HCMOS, Clipped Sinewave 1 3.3 -40 to +85 7.0 x 5.0 x 2.0 High Performance
TCXO3403RA 10 to 50 HCMOS, Clipped Sinewave 1 3.3 -40 to +85 7.0 x 5.0 x 2.0 High Performance
TCXO3404 5 to 26 Clipped Sinewave, Square wave 0.37 3.3 -40 to +85 7.0 x 5.0 x 2.0 High Stability
TCXO3404-10.000000-3-0-1 10 CMOS 1 5 -40 to +85 7.0 x 5.0 x 2.0 High Precision
TCXO3404-12.8MHz-A 12.8 CMOS 0.5 3.3 -40 to +85 7.0 x 5.0 x 2.0 High Stability
TCXO3404-19.200000-2-1-0 19.2 Clipped Sinewave 0.5 3.3 -40 to +85 7.0 x 5.0 x 2.0 High Stability
TCXO3404-19.2MHz 19.2 CMOS 0.5 3.3 -40 to +85 7.0 x 5.0 x 2.0 High Stability
TCXO3404-19.2MHz-A 19.2 CMOS 0.5 3.3 -40 to +85 7.0 x 5.0 x 2.0 High Stability
TCXO3404-25.6MHz-A 25.6 CMOS 0.5 3.3 -40 to +85 7.0 x 5.0 x 1.9 Low Noise
TCXO3404-40MHz-A 40 Clipped Sinewave 0.5 3.3 -40 to +85 7.0 x 5.0 x 2.0 High Precision
TCXO3404B-20MHz 20 HCMOS 0.5 3.3 -40 to +85 7.0 x 5.0 x 2.0 High Stability
TCXO3405 10 to 40 Clipped Sinewave 1 2.8 -40 to +85 5.0 x 3.2 x 1.2 High Stability
TCXO3405-10.245000MHz 10.245 Clipped Sinewave 2 3 -40 to +85 5.0 x 3.2 x 1.2 High Stability
TCXO3406 15 to 40 Clipped Sinewave 1 2.5 -40 to +85 3.2 x 2.5 x 1.0 High Stability
TCXO3407 30 to 180 Sinewave 1 3.3 -40 to +85 25.5 x 22.2 x 6.7 Low Jitter
TCXO3408 200 to 1000 LVPECL 0.28 3.3 0 to +70 25.6 x 22.3 x 6.8 High Stability
TCXO3409 200 to 1000 LVPECL 1 3.3 -40 to +85 25.6 x 22.3 x 6.8 Low Jitter
TCXO3410 200 to 1000 Sinewave 1 3.3 -40 to +85 20.0 x 20.0 x 6.2 Low Noise
TCXO3411 10 to 50 HCMOS, Clipped Sinewave 2 3.3 -55 to +95 5.0 x 3.2 x 2.0 Low G Sensitivity
TCXO3412 10 to 50 HCMOS, Clipped Sinewave 2 3.3 -55 to +95 7.0 x 5.0 x 2.0 Low G Sensitivity
TCXO3412-10MHz 10 Clipped Sinewave 2 5 -55 to +95 7.0 x 5.0 x 2.54 Vibration Resistant
TCXO3413 1.6 to 156 LVCMOS 1 3.3 -40 to +85 7.0 x 5.0 x 2.3 SATCOM
TCXO3414 20 to 400 Sinewave 2 5 -40 to +85 20.75 x 20.75 x 10.75 Sinewave
TCXO3415 4 to 100 Clipped Sinewave, CMOS 1.5 3.3 -40 to +85 18.6 x 11.0 x 8.6 Rugged
TCXO3425 12.8 HCMOS 0.5 2.8, 3.3 -40 to +85 7.0 x 5.0 x 2.0 High Performance
TCXO3437 16.8 Clipped Sinewave 1.6 3 -40 to +85 5.0 x 3.2 x 1.2 High Stability
TCXO3500 10 to 100 HCMOS 0.8 3.3 -40 to +85 14.4 x 9.5 x 5.9 Low Noise
TCXO3530 13 to 52 Clipped Sinewave 2 1.8, 2.5, 2.8 -40 to +85 2.5 x 2.0 x 0.7 Miniature
TCXO3531 10 to 52 Clipped Sinewave 2 1.8, 2.5, 3 -40 to +85 3.2 x 2.5 x 0.9 GPS Disciplined
TCXO3534 6 to 190 Sinewave 0.5 3.3 -40 to +85 21.3 x 11.7 x 4.9 High Stability
TCXO3535 16.32 CMOS 0.5 3.3 -40 to +85 5.0 x 3.2 x 1.55 High Stability
TCXO3536 16.32 Clipped Sinewave 0.5 3.3 -40 to +85 5.0 x 3.2 x 1.55 High Stability
TCXO3537 40 Clipped Sinewave 0.1 3.3 -40 to +85 20.32 x 12.7 x 10.9 High Stability
TCXO3600 20 to 100 HCMOS, Clipped Sinewave 2 2.8, 3.3, 5 -40 to +85 9.3 x 7.6 x 3.8 Low Noise
TCXO3627GR-20MHz-A 20 CMOS 0.05 3.3 -55 to +85 36.1 x 26.9 x 12.4 Ultra Stable
TCXO3627BT-5MHz-A-V 5 Sinewave 1 5 -20 to +70 36.1 x 27.2 x 10.0 High Reliable
TCXO3700 6.4 to 52 HCMOS 0.8 3.3 -40 to +85 7.0 x 5.0 x 2.3 Miniature
TCXO3700-10.000000-3-1 10 LVCMOS 0.28 3.3 -40 to +85 7.0 x 5.0 x 2.3 Miniature
TCXO3700-20.000000-3-0 20 LVCMOS 0.28 3.3 -40 to +85 7.0 x 5.0 x 2.3 Miniature
TCXO4001 12.8 Clipped Sinewave 1 3 -40 to +85 3.2 x 2.5 x 1.2 Miniature
TCXO4122K-5.6MHz-A 5.6 Sinewave 0.5 13.6 -20 to +60 41.0 x 22.0 x 19.0 Custom
TCXO5300AP_3.3Vseries 10 to 40 Clipped Sinewave, CMOS 0.07 3.3 -40 to +105 5.0 x 3.2 x 1.5 Extended Temperature
TCXO5300 9.6 to 40 HCMOS, Clipped Sinewave 1.5 2.8, 3.0, 3.3, 5.0 -40 to +85 5.0 x 3.2 x 1.2 High Performance
TCXO5300AP_series 10 to 52 Clipped Sinewave, CMOS 0.05 2.7 to 5.5 -40 to +85 5.0 x 3.2 x 1.8 Ultra Stable
TCXO5300AP-10MHz-A-V 10 Clipped Sinewave 0.1 3.3 -40 to +85 5.0 x 3.2 x 1.8 High Stability
TCXO5300AP-10MHz-B-V 10 CMOS 1 2.5 to 3.7 -40 to +85 5.0 x 3.2 x 1.8 High Stability
TCXO5300AP-20MHz-A-V 20 CMOS 1 2.5 to 3.3 -40 to +85 5.0 x 3.2 x 1.8 High Stability
TCXO5300AP-31.3MHz-A-V 31.3 CMOS 0.3 3.3 -40 to +85 5.0 x 3.2 x 1.8 High Stability
TCXO5300BT-25MHz-A-V 25 CMOS 0.28 3.3 -55 to +85 5.0 x 3.2 x 1.7 High Stability
TCXO5300CHP 6.4 to 26 Clipped Sinewave 0.28 3.3 -40 to +85 5.0 x 3.2 x 2.1 GPS Disciplined
TCXO5300GR-10MHz-A 10 Clipped Sinewave 0.3 3.3 -40 to +85 5.0 x 3.2 x 2.1 Clock Reference
TCXO5300IQ-10MHz-A-V 10 HCMOS 1 3.3 -40 to +85 5.0 x 3.2 x 1.8 High Performance
TCXO5300MC 6 to 160 CMOS 25 3.3 -40 to +85 5.0 x 3.2 x 1.2 Spread Spectrum
TCXO5300QC-24MHz 24 Clipped Sinewave 0.5 3.3 -30 to +85 5.0 x 3.2 x 1.2 High Stability
TCXO5300-QCOM-24.000MHz 24 Clipped Sinewave 0.5 3.3 -30 to +85 5.0 x 3.2 x 1.2 High Stability
TCXO5300QHP 10 to 26 CMOS 0.28 3.3, 5 -40 to +85 5.0 x 3.2 x 1.2 Stratum 3
TCXO5300QHP-13MHz 13 CMOS 0.5 3.3 -40 to +85 5.0 x 3.2 x 1.2 High Precision
TCXO5300QST3-25MHz 25 CMOS 0.28 3.3 -40 to +85 5.0 x 3.2 x 1.55 High Stability
TCXO5300S_series 10 to 52 HCMOS, Clipped Sinewave 0.5 3.3, 5 -40 to +85 5.0 x 3.2 x 1.1 High Stability
TCXO5300S-10MHz-A-V 10 Clipped Sinewave 0.28 3.3 -40 to +85 5.0 x 3.2 x 1.5 High Performance
TCXO5300S-10MHz-B-V 10 CMOS 0.2 3.3 -40 to +85 5.0 x 3.2 x 1.55 High Performance
TCXO5300S-10MHz-C-V 10 Clipped Sinewave 0.28 3.3 -40 to +85 5.0 x 3.2 x 1.55 High Stability
TCXO5300S-19.2MHz-B-V 19.2 Clipped Sinewave 0.05 3.3 -10 to +70 5.0 x 3.2 x 1.55 High Performance
TCXO5300S-19.2MHz-C-V 19.2 Clipped Sinewave 0.5 3.3 -40 to +85 5.0 x 3.2 x 1.55 High Stability
TCXO5300S-20MHz-A 20 CMOS 0.1 3.3 -25 to +70 5.0 x 3.2 x 1.55 Ultra Stable
TCXO5300S-20MHz-A-V 20 CMOS 0.1 3.3 -25 to +70 5.0 x 3.2 x 1.55 Ultra Stable
TCXO5300S-26MHz-A-V 26 Clipped Sinewave 0.28 2.8 -40 to +85 5.0 x 3.2 x 1.55 High Stability
TCXO5300S-26MHz-A-V 26 CMOS 0.28 3.3 -40 to +85 5.0 x 3.2 x 1.55 High Performance
TCXO5300S-49.152MHz-A-V 49.152 CMOS 1 3.3 -40 to +85 5.0 x 3.2 x 1.55 High Stability
TCXO5300T-20MHz-A 20 CMOS 1 3.3 -30 to +70 5.0 x 3.2 x 1.2 High Stability
TCXO5300THP 5 to 26 HCMOS, Clipped Sinewave 0.28 3.3 -40 to +85 5.0 x 3.2 x 1.65 High Precision
TCXO5300THP_Rev3 5 to 26 Clipped Sinewave 0.28 3.3 -40 to +85 5.0 x 3.2 x 1.65 High Precision
TCXO5300THP-10MHz-A-V 10 Clipped Sinewave 0.5 3.3 -40 to +85 5.0 x 3.2 x 1.55 High Precision
TCXO5300THP-10MHz-C-V 10 CMOS 0.5 3.3 -40 to +85 5.0 x 3.2 x 1.55 High Performance
TCXO5300THP-10MHz-D 10 Clipped Sinewave 0.28 3.3 -40 to +85 5.0 x 3.2 x 1.55 High Performance
TCXO5300THP-10MHz-D-V 10 Clipped Sinewave 0.28 3.3 -40 to +85 5.0 x 3.2 x 1.55 High Performance
TCXO5300THP-16.368MHz 16.368 Clipped Sinewave 0.5 3.3 -30 to +70 5.0 x 3.2 x 1.65 High Precision
TCXO5300THP-19.2MHz-A 19.2 CMOS 0.5 3.3 -40 to +85 5.0 x 3.2 x 1.55 Low Noise
TCXO5300THP-20MHz-A-V 20 CMOS 0.2 3.3 -40 to +85 5.0 x 3.2 x 1.65 High Precision
TCXO5300THP-20MHz-A-V-Rev2 20 CMOS 0.2 3.3 -40 to +85 5.0 x 3.2 x 1.65 High Precision
TCXO5300THP-25MHz-A-V 25 Clipped Sinewave 0.2 3.3 -5 to +85 5.0 x 3.2 x 1.55 High Stability
TCXO5300THP-26MHz-A 26 CMOS 0.5 3.3 -40 to +85 5.0 x 3.2 x 1.65 High Precision
TCXO5300TV-16.368MHz 16.368 Clipped Sinewave 0.5 2.8 -30 to +70 5.0 x 3.2 x 1.2 GPS
TCXO5300TX-16.368MHz 16.368 Clipped Sinewave 0.5 3 -30 to +70 5.0 x 3.2 x 1.0 GPS
TCXO5300ULG-10MHz-A-V 10 CMOS 0.2 3.3 -40 to +85 5.0 x 3.2 x 2.16 High Stability
TCXO5300ULG-ET-10MHz-A-V 10 CMOS 0.2 3.3 -55 to +95 5.0 x 3.2 x 2.16 High Stability
TCXO5300Z-10.23MHz-A 10.23 CMOS 0.5 3.3 -40 to +85 5.0 x 3.2 x 1.7 High Stability
TCXO5300Z-10MHz-A-V 10 HCMOS 0.28 3.3 -40 to +85 5.0 x 3.2 x 1.7 Extended Temperature
TCXO5300Z-12.678303MHz-A 12.678303 CMOS 0.2 3.3 -20 to +55 5.0 x 3.2 x 1.7 High Stability
TCXO5300Z-15.050000MHz-A 15.05 Clipped Sinewave 0.5 3.3 -40 to +85 5.0 x 3.2 x 1.7 High Precision
TCXO5300Z-26MHz-A-V 26 CMOS 0.5 2.85 -40 to +85 5.0 x 3.2 x 1.7 High Performance
TCXO5300Z-UHS-10.0MHz 10 Clipped Sinewave 0.1 3.3 -40 to +85 5.0 x 3.2 x 1.7 High Stability
TCXO5300Z-UHS-19.2MHz 19.2 Clipped Sinewave 0.1 5 -40 to +85 5.0 x 3.2 x 1.7 High Stability
TCXO5300Z-UHS-20MHz 20 Clipped Sinewave 0.1 3.3 -40 to +85 5.0 x 3.2 x 1.7 High Stability
TCXO5301 9.6 to 40 Clipped Sinewave 1 3.3 -40 to +85 5.0 x 3.2 x 1.2 High Performance
TCXO5302BM_series 10 to 52 Clipped Sinewave, CMOS 0.05 2.5, 3.3 -40 to +105 5.0 x 3.2 x 1.85 High Precision
TCXO5320S-10MHz-D-V 10 CMOS 0.28 3.3 -40 to +85 5.0 x 3.2 x 1.55 High Stability
TCXO5300CL-24.576MHz-A-V 24.576 CMOS 1 3.3 -40 to +85 5.2 x 3.4 x 2.0 High Precision
TCXO6031RHP-16.8MHz-A 16.8 CMOS 0.5 3.3 -55 to +80 5.0 x 3.2 x 1.7 High Precision
TCXO7500AL-10MHz-A 10 CMOS 5 5 -40 to +85 7.0 x 5.0 x 1.9 High Stability
TCXO7500AO-16.384MHZ-A 16.384 CMOS 1 3.3 -40 to +85 7.0 x 5.0 x 1.9 High Stability
TCXO7500AP_3.3Vseries 10 to 40 Clipped Sinewave, CMOS 0.07 3.3 -40 to +105 7.0 x 5.0 x 2.0 Ultra Stable
TCXO7500AP_series 10 to 52 Clipped Sinewave, CMOS 0.3 2.7 to 5.5 -40 to +85 7.0 x 5.0 x 1.85 High Stability
TCXO7500AP-10MHz-A-V 10 CMOS 1 2.5, 3.3 -40 to +85 7.0 x 5.0 x 1.85 High Stability
TCXO7500AP-20MHz-A-V 20 CMOS 1 2.5, 3.3 -40 to +85 7.0 x 5.0 x 1.85 High Stability
TCXO7500BM-40MHz-A 40 CMOS 0.1 5 -20 to +70 7.0 x 5.0 x 1.9 Ultra Stable
TCXO7500DG-10.23MHz-A-V 10.23 CMOS 1 3.3 -40 to +85 7.0 x 5.0 x 1.6 High Stability
TCXO7500ETZ-10MHz-A-V 10 Clipped Sinewave 0.8 3.3 -55 to +85 7.0 x 5.0 x 1.75 Extended Temperature
TCXO7500ETZ-10MHz-A-V 10 Clipped Sinewave 0.8 3.3 -55 to +85 7.0 x 5.0 x 1.75 Extended Temperature
TCXO7500ETZ-16.8MHz-B-V 16.8 CMOS 0.8 3.3 -55 to +85 7.0 x 5.0 x 1.75 Extended Temperature
TCXO7500ETZ-20MHz-A-V 20 Clipped Sinewave 0.8 3.3 -55 to +85 7.0 x 5.0 x 1.75 Extended Temperature
TCXO7500L 12 to 800 Differential LVDS 2 3.3 -40 to +85 7.0 x 5.0 x 2.3 Low Noise
TCXO7500MC-15.5MHz-A-V 15.5 CMOS 2 3.3 -30 to +85 7.0 x 5.0 x 2.5 Standard
TCXO7500QC-16.800MHz-ET 16.8 CMOS 0.5 3.3 -55 to +85 7.0 x 5.0 x 1.75 High Precision
TCXO7500QC-50MHz-A 50 Clipped Sinewave 0.5 3.3 -55 to +95 7.0 x 5.0 x 1.75 Extended Temperature
TCXO7500QC-50MHz-A-V 50 LVCMOS 0.5 3.3 -40 to +85 7.0 x 5.0 x 1.75 High Precision
TCXO7500QC-51.2MHz-A 51.2 CMOS 0.3 3.3 -40 to +85 7.0 x 5.0 x 1.9 High Performance
TCXO7500QC-51.2MHz-A-V 51.2 CMOS 0.3 3.3 -40 to +85 7.0 x 5.0 x 1.9 High Performance
TCXO7500QC-5MHz-A 5 CMOS 0.5 3.3 0 to +70 7.0 x 5.0 x 1.75 Standard
TCXO7500QCHP-40MHz-A 40 Clipped Sinewave 0.5 3.3 -40 to +85 7.0 x 5.0 x 2.0 High Precision
TCXO7500QCHP-50MHz-A 50 CMOS 0.5 3 -40 to +85 7.0 x 5.0 x 1.75 Low Noise
TCXO7500QST3 9.8304 to 32 CMOS 0.28 3.3, 5 -40 to +85 7.0 x 5.0 x 2.0 Stratum 3
TCXO7500R-50MHz-A 50 CMOS 1.5 3.3 -40 to +85 7.0 x 5.0 x 2.5 Ultra Small
TCXO7500S-12.8MHz-A 12.8 CMOS 0.28 3.3 -40 to +85 7.0 x 5.0 x 1.9 High Performance
TCXO7500S-16.32MHz-A-V 16.32 CMOS 0.5 3.3 -40 to +85 7.0 x 5.0 x 1.9 High Performance
TCXO7500S-19.2MHz-A-V 19.2 Clipped Sinewave 0.2 3.3 -40 to +85 7.0 x 5.0 x 1.9 High Performance
TCXO7500S-20MHz-A-V 20 CMOS 0.28 1.5 -40 to +85 7.0 x 5.0 x 1.9 High Performance
TCXO7500S-25.6MHz-A-V 25.6 CMOS 0.2 3.3 -40 to +85 7.0 x 5.0 x 1.9 High Performance
TCXO7500S-25.6MHz-B-V 25.6 Clipped Sinewave 0.2 3.3 -40 to +85 7.0 x 5.0 x 1.9 High Performance
TCXO7500S-28.8MHz-A-V 28.8 CMOS 0.25 3 -40 to +85 7.0 x 5.0 x 1.9 Standard
TCXO7500S-30.72MHz-A-V 30.72 CMOS 0.25 3.3 -40 to +85 7.0 x 5.0 x 1.9 Standard
TCXO7500S-30MHz-A-V 30 CMOS 0.28 3.3 -40 to +85 7.0 x 5.0 x 1.9 High Stability
TCXO7500S-40MHz-A-V 40 CMOS 0.28 3.3 -40 to +85 7.0 x 5.0 x 1.9 High Stability
TCXO7500S-6.4MHz-A-V 6.4 CMOS 0.5 3.3 -40 to +85 7.0 x 5.0 x 1.9 High Performance
TCXO7500S-6.4MHz-B-V 6.4 CMOS 1 3.3 -40 to +85 7.0 x 5.0 x 1.9 High Performance
TCXO7500T 5 to 40 Clipped Sinewave, CMOS 0.1 3.3, 5 -40 to +85 7.0 x 5.0 x 1.9 Standard
TCXO7500T-10MHz-B 10 CMOS 0.5 3.3 -40 to +85 7.0 x 5.0 x 2.0 Standard
TCXO7500T-12.68875MHz-A 12.68875 Clipped Sinewave 0.2 3.3 -40 to +85 7.0 x 5.0 x 1.9 Standard
TCXO7500T-19.2MHz-A-V 19.2 Clipped Sinewave 0.2 3.3 -40 to +85 7.0 x 5.0 x 1.9 Standard
TCXO7500T-20MHz-A-V 20 HCMOS 0.25 3.3 -40 to +85 7.0 x 5.0 x 1.9 Standard
TCXO7500T-24.576MHz-A 24.576 Clipped Sinewave 0.5 3.3 -40 to +85 7.0 x 5.0 x 1.9 Standard
TCXO7500T-24MHz-A-V 24 CMOS 0.5 3.3 -40 to +85 7.0 x 5.0 x 1.9 High Precision
TCXO7500T-25.600MHz-A 25.6 CMOS 0.3 3.3 -40 to +75 7.0 x 5.0 x 1.9 High Stability
TCXO7500T-25.600MHz-B 25.6 Clipped Sinewave 0.25 5 -40 to +85 7.0 x 5.0 x 1.9 Standard
TCXO7500T-25.6MHz-C 25.6 CMOS 0.5 3.3 -40 to +85 7.0 x 5.0 x 1.9 Standard
TCXO7500T-28.8MHz-A-V 28.8 Clipped Sinewave 0.25 5 -40 to +85 7.0 x 5.0 x 1.9 Standard
TCXO7500T-30.720MHz-A-V 30.72 Clipped Sinewave 0.25 3.3 -40 to +85 7.0 x 5.0 x 1.9 Standard
TCXO7500T-32.000MHz-A 32 Clipped Sinewave 0.5 3.3 -40 to +85 7.0 x 5.0 x 1.9 Standard
TCXO7500T-50MHz-A-V 50 LVCMOS 0.37 3.3 -40 to +85 7.0 x 5.0 x 1.9 Standard
TCXO7500TA-20MHz-A 20 CMOS 1 3.3 -40 to +85 7.0 x 5.0 x 1.9 Standard
TCXO7500THP-19.2MHz-A 19.2 Sinewave 0.25 5 -40 to +85 7.0 x 5.0 x 2.0 High Stability
TCXO7500THP-9.6MHz-X 9.6 Clipped Sinewave 0.28 5 -40 to +85 7.0 x 5.0 x 2.0 High Stability
TCXO7500Z-12.6883750MHz-A 12.688375 CMOS 0.2 3.3 -20 to +55 7.0 x 5.0 x 1.75 Analogue
TCXO7500Z-12.688656MHz-A 12.688656 CMOS 0.2 3.3 -20 to +55 7.0 x 5.0 x 1.75 COSPAS SARSAT
TCXO7500Z-12.688750MHz-A 12.68875 CMOS 0.2 3.3 -20 to +55 7.0 x 5.0 x 1.75 Analogue
TCXO7500Z-12.8MHz-A 12.8 CMOS 0.2 3.3 -20 to +55 7.0 x 5.0 x 1.75 Analogue
TCXO7500Z-19.2MHz-A-V 19.2 Clipped Sinewave 0.2 3 -40 to +85 7.0 x 5.0 x 1.75 High Performance
TCXO7500Z-20MHz-A 20 CMOS 0.2 3.3 -40 to +55 7.0 x 5.0 x 1.75 Analogue
TCXO7500Z-25.37750MHz-A 25.3775 CMOS 0.2 3.3 -20 to +55 7.0 x 5.0 x 1.75 Analogue
TCXO7500Z-40MHz-A 40 Clipped Sinewave 0.28 3.3 -40 to +85 7.0 x 5.0 x 1.75 High Reliable
TCXO7500Z-40MHz-A-V 40 CMOS 0.5 3.3 -40 to +85 7.0 x 5.0 x 1.9 Analogue
TCXO7500Z-48MHz-A-V 48 CMOS 0.3 3.3 -40 to +85 7.0 x 5.0 x 1.75 High Stability
TCXO7500Z-50MHz-A 50 CMOS 1 3.3 -40 to +85 7.0 x 5.0 x 2.0 High Reliable
TCXO7500Z-50MHz-A-V 50 CMOS 1 3.3 -40 to +85 7.0 x 5.0 x 1.75 High Stability
TCXO7500Z-50MHz-B-V 50 Clipped Sinewave 1 3.3 -40 to +85 7.0 x 5.0 x 1.9 High Reliable
TCXO7500ZLGCS 10 to 25 Sinewave 0.5 3.3 -40 to +85 7.0 x 5.0 x 1.75 High Reliable
TCXO7500ZLGSQ 10 to 25 CMOS 0.5 3.3 -40 to +85 7.0 x 5.0 x 1.75 High Reliable
TCXO7500Z-UHS-20MHz 20 Sinewave 0.1 3.3 -40 to +85 7.0 x 5.0 x 1.75 High Stability
TCXO7501BM_series 10 to 52 Clipped Sinewave, CMOS 0.1 2.5, 3.3 -40 to +85 7.0 x 5.0 x 1.9 High Precision
TCXO7501S_series 5 to 52 Clipped Sinewave, CMOS 0.28 3.3, 5 -40 to +85 7.0 x 5.0 x 1.9 High Precision
TCXO7501TC-10M 10 Clipped Sinewave 2 5 -40 to +85 7.0 x 5.0 x 2.0 Compact
TCXO7502BM_series 10 to 52 Clipped Sinewave, CMOS 0.1 2.5, 3.3 -40 to +85 7.0 x 5.0 x 1.9 High Precision
TCXO911BTLG_series 50 to 125 CMOS 0.25 3.3 -40 to +85 11.4 x 9.6 x 6.7 High Stability
TCXO911K-10MHz-A 10 HCMOS 1 3.3 -40 to +85 11.4 x 9.6 x 2.3 High Performance
TCXO911K-20MHz-A-V_Rev2 20 Sinewave 1 3.3 -40 to +85 11.4 x 9.6 x 4.5 High Performance
TCXO911Z-28.8MHz-A 28.8 Sinewave 0.3 3.3 -40 to +85 11.4 x 9.6 x 2.4 High Stability
TCXO911Z-28.8MHz-A-V 28.8 Sinewave 0.3 3.3 -40 to +85 11.4 x 9.6 x 2.4 High Stability
TCXO912BTLG_HCMOS 50 to 150 LVHCMOS 0.5 3.3 -40 to +85 11.4 x 9.6 x 6.7 High Stability
TCXO912BTLG_Sine 50 to 150 Sinewave 0.5 3.3 -40 to +85 11.4 x 9.6 x 6.7 High Stability
TCXO2013BE-100MHz-A 100 HCMOS 1 3.3 -40 to +85 20.0 x 13.0 x 7.5 High Stability
TCXO2013BE-55MHz-A 55 Clipped Sinewave 1 5 -40 to +85 20.0 x 13.0 x 7.5 High Stability
TCXO914BE-100MHz-A 100 LVPECL 1 3.3 -40 to +85 14.4 x 9.5 x 5.5 High Stability
TCXO914K-62MHz-A-V_Rev1 62 Sinewave 1 3.3 -40 to +85 14.3 x 8.7 x 5.5 High Accuracy
TCXO914K-70MHz-A 70 HCMOS 1 5 -40 to +85 14.3 x 8.7 x 5.5 High Accurate
TCXO914K-76.8MHz-A-V 76.8 HCMOS 2 3.3 -40 to +85 14.3 x 8.7 x 5.5 High Accurate
TCXO914K-80MHz-A-V 80 HCMOS 2 3.3 -40 to +85 14.3 x 8.7 x 5.5 High Accuracy
TCXO914QST3 10 to 100 HCMOS 0.28 3.3, 5 -40 to +85 14.0 x 9.0 x 5.0 Stratum 3
TCXO914T-16.384MHz-A-V 16.384 CMOS 0.1 3.3 -40 to +85 14.99 x 9.32 x 4.0 High Performance
TCXO914U-70MHz-A 70 CMOS Square Wave 0.2 5 -40 to +85 14.22 x 9.14 x 6.48 Low Noise
TCXO914VHS-100MHz-A 100 HCMOS 0.5 5 -40 to +85 14.4 x 9.5 x 6.2 Low G-Sensitivity
TCXO914Z-101.75MHz-A-V 101.75 HCMOS 1 3.3 -40 to +85 14.0 x 9.0 x 5.0 High Stability
TCXO914Z-28.8MHz-A-V 28.8 HCMOS 0.3 3.3 -40 to +85 14.0 x 9.0 x 5.0 High Accurate
TCXO914Z-2RF-20MHz-B 20 Sinewave 0.28 3.3 -40 to +85 14.0 x 9.0 x 6.0 High Precision
TCXO914Z-2RF-20MHz-C 20 Sinewave 0.28 3.3 -40 to +85 14.0 x 9.0 x 6.0 High Precision
TCXO915AM-100Mhz-A-V 100 Sinewave 0.5 5 -40 to +85 15.0 x 9.0 x 5.0 Stable
TCXO915BTLG_HCMOS 40 to 200 LVHCMOS 0.5 3.3 -40 to +85 14.0 x 9.0 x 6.7 High Stability
TCXO915BTLG_Sine 40 to 200 Sinewave 1 3.3 -40 to +85 14.0 x 9.0 x 6.7 High Stability
TCXOB1000ET 20 to 120 Sinewave, CMOS 5 12 -55 to +125 26.16 x 26.16 x 13.46 Extended Temperature
TCXOBE-001-100MHz 100 Sinewave 1.5 5 -20 to +70 20.8 x 13.2 x 10.0 Low Noise
TCXOBE-001-80MHz 80 Sinewave 1.5 5 -20 to +70 20.8 x 13.2 x 10.0 Low Noise
TCXOBE-002-100MHz 100 Sinewave 2 5 -20 to +70 20.8 x 13.2 x 10.0 Low Noise
TCXOBEIM-100MHz-A 100 Sinewave 1 5 -40 to +85 25.4 x 19.04 without cover SMD
TCXOBEIM-100MHz-B_Rev2 100 Sinewave 2.5 5 -40 to +85 25.4 x 19.04 without cover SMD
TCXOBEIM-100MHz-C-V 100 Sinewave 2 3.3 -40 to +85 25.4 x 19.04 without cover SMD
TCXOCW914-50MHz 50 HCMOS 1 3.3 -40 to +85 13.21 x 9.02 x 5.33 Low Noise
TCXODE200V_Rev2 9.6 Clipped Sinewave 0.2 5 -40 to +85 7.0 x 5.0 x 2.0 SMD
TCXODE300V_Rev2 9.6 Clipped Sinewave 0.5 5 -40 to +85 7.0 x 5.0 x 2.0 SMD
TCXOKP119-22MHz-A 22 HCMOS 2.5 3 -40 to +85 11.4 x 9.6 x 5.0 SMD
TCXOKP1911-12.8MHz-A-V 12.8 HCMOS 2 5 -40 to +85 19.8 x 12.5 x 5.2 Wide Tuning Range
TCXOKP914-60MHz-A-V 60 Clipped Sinewave 2.5 3.3 -40 to +85 14.5 x 8.7 x 5.0 High Performance

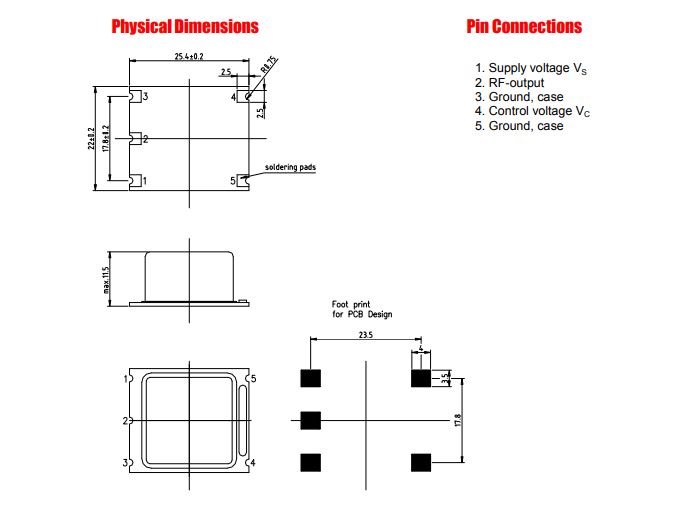

TCXOKSMD1000M 1000 Sinewave 1 10 -20 to +70 25.4 x 22.0 x 11.5 Low Noise
TCXOKSMD100M 100 Sinewave 1 5 -40 to +85 18.9 x 12.9 x 6.0 SMD
TCXOLN100M 100 Sinewave 1 5 -40 to +85 18.9 x 12.9 x 6.0 Standard
TCXOMAR01 9.6 Clipped Sinewave 0.195 5 -40 to +85 7.0 x 5.0 x 2.0 Standard
TCXO2013BE-100MHz-B 100 HCMOS 0.28 3.3 -40 to +85 20.7 x 13.06 x 7.5 High Stability
TCXO1911BM-9.6MHz-A-V 9.6 Clipped Sinewave 0.25 5 -40 to +85 19.8 x 11.5 x 5.5 High Stability
TCXOQC119-50MHz-LN 50 HCMOS 2.5 3.3 -40 to +85 11.4 x 9.6 x 1.85 Low Noise
TCXOQC914ST3-50MHz 50 HCMOS 4.6 3.3 -40 to +85 14.0 x 9.0 x 5.0 Stratum 3
TCXOT7500-10MHz-A 10 Clipped Sinewave 0.28 3.3 -40 to +85 7.0 x 5.0 x 1.9 Standard
TCXOT79-20MHz 20 HCMOS 0.5 3.3 -40 to +85 20.82 x 13.21 x 7.62 Standard
TCXOT79-50MHz 50 Sinewave 0.5 3.3 -40 to +85 20.82 x 13.21 x 7.62 DIP Package
TCXOTC-19.2MHz 19.2 HCMOS 0.5 3.3 -40 to +85 7.0 x 5.0 x 2.0 Precision Clock
TCXOVHP1000 6.4 to 26 CMOS 0.14 3.3 -40 to +85 20.7 x 13.1 x 5.85 Standard
VCTCXO1000B-40MHz 40 HCMOS 1 3.3 -40 to +85 20.8 x 13.2 x 10.0 Advanced Compensation
VCTCXO1000QST3-25MHz 25 CMOS 0.28 3.3 -40 to +85 7.0 x 5.0 x 2.0 Stratum 3
VCTCXO-2.5-3.2-LVCMOS-31.3MHz 31.3 LVCMOS 1 3.3 -40 to +85 3.2 x 2.5 x 1.6 LVCMOS
VCTCXO-2.5-3.2-LVCMOS-xMHz 10 to 245 LVCMOS 0.5 2.5, 3.3 -40 to +85 3.2 x 2.5 x 1.6 LVCMOS
VCTCXO-2.5-3.2-LVDS-xMHz 10 to 1450 LVDS 0.5 2.5, 3.3 -40 to +85 3.2 x 2.5 x 1.6 LVDS
VCTCXO-2.5-3.2-LVPECL-xMHz 10 to 1450 LVPECL 0.5 2.5, 3.3 -40 to +85 3.2 x 2.5 x 1.6 LVPECL
VCTCXO2000QST3-12.800MHz 12.8 CMOS 0.37 3.3 -40 to +85 7.0 x 5.0 x 2.0 Stratum 3
VCTCXO3125 16.8 Clipped Sinewave 1.5 3.3 -30 to +70 5.0 x 3.2 x 1.2 High Reliability
VCTCXO3404 5 to 26 Clipped Sinewave, CMOS 0.37 3.3 -40 to +85 7.0 x 5.0 x 2.0 High Reliability
VCTCXO3404A-26M 26 Clipped Sinewave 0.2 3.3 -10 to +60 7.0 x 5.0 x 2.0 Standard
VCTCXO3404F-19.44MHz-A 19.44 HCMOS 0.28 3.3 -40 to +85 7.0 x 5.0 x 2.0 SMD
VCTCXOGR120-28.8MHz 28.8 CMOS Square Wave 0.7 5 -40 to +85 22.9 x 17.8 x 6.4 Extended Temperature
VCTCXOGR22-50ppb-10MHz 10 Sinewave 0.5 5 -40 to +85 19.7 x 19.7 x 10.0 Next Generation
VCTCXOQC911-50MHz 50 Clipped Sinewave 2 5 -40 to +85 11.4 x 9.6 x 1.85 Standard
TCXO1911BM-9.6MHz-A-V 9.6 Clipped Sinewave 0.25 5 -40 to +85 19.8 x 11.5 x 5.5 Ultra Stable
TCXO3225BL-1000MHz-B-V 1000 LVDS 2 3.3 -40 to +85 3.2 x 2.5 x 1.6 Standard
TCXO3225BL-1000MHz-A-V 1000 PECL 2 3.3 -40 to +85 3.2 x 2.5 x 1.6 Standard
TCXO7500AN-WT 8 to 52 Clipped Sinewave, HCMOS 2 2.8, 3.0, 3.3 -55 to +125 7.0 x 5.0 x 2.0 Wide Temperature
TCXO5300BM-STR3-40MHz-A 40 Clipped Sinewave 0.28 3.3 -40 to +85 5.00 x 3.20 x 1.85 SMD
TCXO5032AT-20MHz-A 20 HCMOS 2.5 3.3 -30 to +85 5.0 x 3.2 x 1.5 High Precision
TCXO7500BT-LG-20MHz-A 20 Clipped Sinewave 1 3.3 -40 to +85 7.0 x 5.0 x 1.75 Low G-Sensitivity
TCXO5300BT-HS_CS 5 to 100 Clipped Sinewave 0.05 to 1.0 2.5, 2.8, 3.0, 3.3 -40 to +85 5.0 x 3.2 x 1.7 High Stability
TCXO5300BT-HS_CMOS 5 to 100 CMOS 0.05 to 1.0 2.5, 2.8, 3.0, 3.3 -40 to +85 5.0 x 3.2 x 1.7 High Stability
TCXO5300BT-HS-10MHz_CS-2232 10 Clipped Sinewave 0.1 3.3 -40 to +85 5.0 x 3.2 x 1.7 High Stability
TCXO5300BT-HS-10MHz_CS-1232 10 Clipped Sinewave 0.1 3.3 -20 to +70 5.0 x 3.2 x 1.7 High Stability
TCXO7501BL-30.72MHz-A 30.72 CMOS 2 3.3 -40 to +85 7.0 x 5.0 x 2.5 High Stability
TCXO5300BT-HS-10MHz_CS-1332 10 Clipped Sinewave 0.2 3.3 -20 to +70 5.0 x 3.2 x 1.7 High Stability
TCXO5300BT-HS-10MHz_CS-2332 10 Clipped Sinewave 0.2 3.3 -40 to +85 5.0 x 3.2 x 1.7 High Stability
TCXO7500BM-40MHz-C 40 Clipped Sinewave 0.2 3.3 -40 to +85 5.0 x 3.2 x 1.9 Ultra Stable

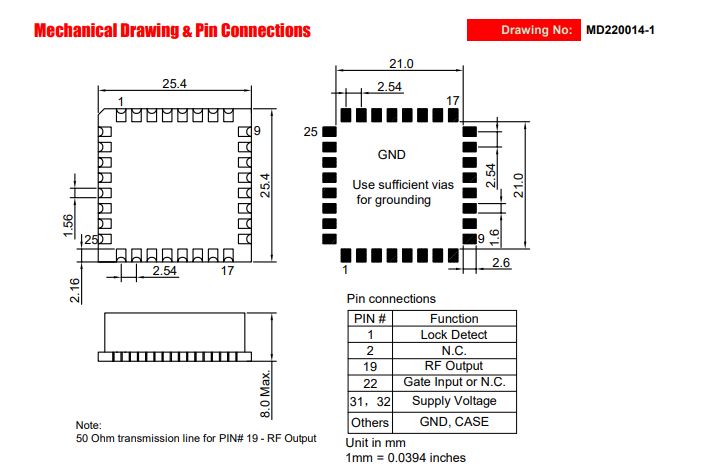

GTCXO2525BF-1030MHz-A 1030 Sinewave 1 5 -40 to +85 25.4 x 25.4 x 8.0 Gated High Stability

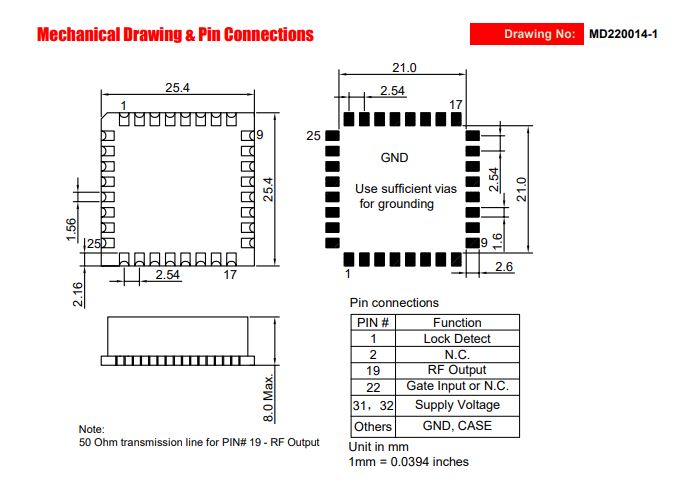

GTCXO2525BF-1090MHz-A 1090 Sinewave 1 5 -40 to +85 25.4 x 25.4 x 8.0 Gated High Stability

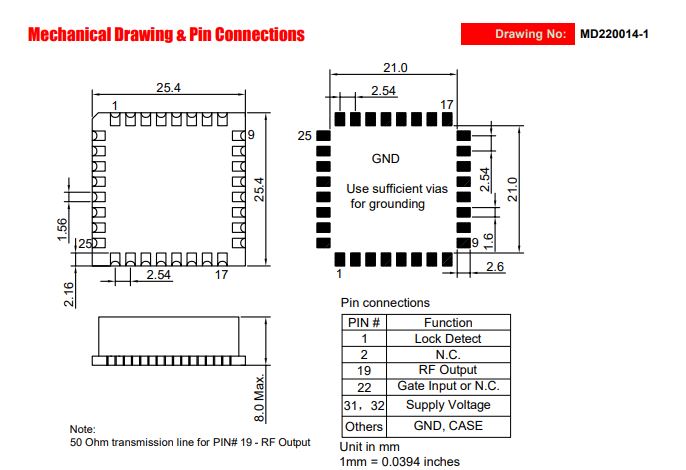

GTCXO2525BF-1160MHz-A 1160 Sinewave 1 5 -40 to +55 25.4 x 25.4 x 8.0 Gated High Stability
TCXO3225BM-1500MHz-A 1500 LVPECL 2 3.3 -10 to +70 3.2 x 2.5 x 1.6 Standard
TCXO3225BM-122.80MHz-A 122.8 CMOS 2.5 3.3 -30 to +85 3.2 x 2.5 x 1.6 Standard
TCXO914BE-200MHz-A-V 200 HCMOS 1 3.3 -10 to +85 14.3 x 8.7 x 5.5 HCMOS
TCXO914BE-200MHz-A 200 HCMOS 1 3.3 -10 to +85 14.3 x 8.7 x 5.5 HCMOS
TCXO5300BM-14.85MHz-A-V 14.85 Clipped Sinewave 2.5 3.3 -20 to +70 5.0 x 3.2 x 1.1 Standard
TCXO7501BL-38MHz-A-V 38 CMOS 1 3.3 -40 to +70 7.0 x 5.0 x 2.5 SMD
TCXO7500BT-16.8MHz-A-V 16.8 LVCMOS 0.5 3.3 -40 to +85 7.0 x 5.0 x 1.75 High Precision
TCXO5300BT-HS-10MHz_CS-1432 10 Clipped Sinewave 0.25 3.3 -20 to +70 5.0 x 3.2 x 1.7 High Stability
TCXO5300BT-HS-10MHz_CS-2432 10 Clipped Sinewave 0.25 3.3 -40 to +85 5.0 x 3.2 x 1.7 High Stability
TCXO5300BT-HS-10MHz_CS-1322 10 Clipped Sinewave 0.2 2.8 -20 to +70 5.0 x 3.2 x 1.7 High Stability
TCXO5300BT-HS-10MHz_CS-2322 10 Clipped Sinewave 0.2 2.8 -40 to +85 5.0 x 3.2 x 1.7 High Stability
TCXO5300BT-HS-10MHz_CS-1422 10 Clipped Sinewave 0.25 2.8 -20 to +70 5.0 x 3.2 x 1.7 High Stability
TCXO5300BT-HS-10MHz_CS-2422 10 Clipped Sinewave 0.25 2.8 -40 to +85 5.0 x 3.2 x 1.7 High Stability
TCXO7500BT-STR3-25MHz-A 25 CMOS 0.28 3.3 -40 to +85 7.0 x 5.0 x 1.75 High Reliable
TCXO7500BM-40MHz-D 40 CMOS 0.28 3.3 -40 to +85 7.0 x 5.0 x 1.9 Standard
TCXO2520BM-25MHz-A 25 CMOS 2.5 3.3 -40 to +85 2.50 x 2.00 x 0.85 SMD
TCXO5300BT-25MHz-B-V 25 CMOS 0.5 3.3 -40 to +85 5.0 x 3.2 x 1.7 SMD
TCXO5300BT-HS-10MHz_CS-1312 10 Clipped Sinewave 0.2 2.5 -20 to +70 5.0 x 3.2 x 1.7 High Stability
TCXO5300BT-HS-10MHz_CS-1412 10 Clipped Sinewave 0.25 2.5 -20 to +70 5.0 x 3.2 x 1.7 High Stability
TCXO5300BT-HS-10MHz_CS-2312 10 Clipped Sinewave 0.2 2.5 -40 to +85 5.0 x 3.2 x 1.7 High Stability
TCXO5300BT-HS-10MHz_CS-2412 10 Clipped Sinewave 0.25 2.5 -40 to +85 5.0 x 3.2 x 1.7 High Stability
TCXO1314BM-LN-38.4MHz-A-V 38.4 CMOS 0.28 3.3 -40 to +85 14.5 x 13.2 x 6.5 High Stability
