压控晶振产品汇总 (VCXO)    当前位置:首页 >公司产品 >压控晶振 (VCXO) >压控晶振产品汇总 (VCXO)
产品型号 频率
(MHz)
输出类型 频率稳定度
(ppm)
供电电压
(V)
工作温度范围
(°C)
封装尺寸
长 x 宽 x 高
(mm)
产品类别 规格书 产品图片

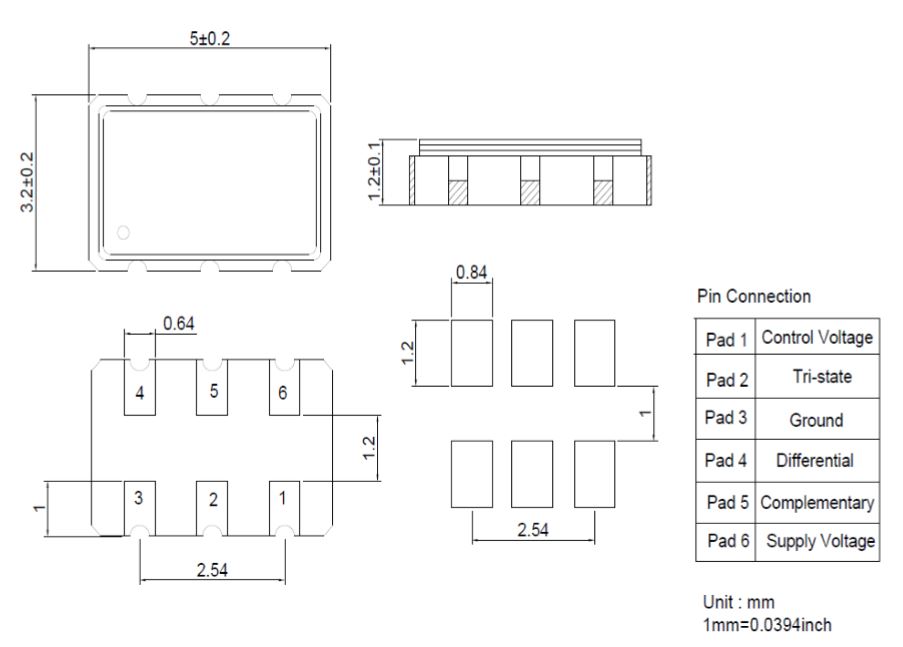

VCXO5300R-LVDS 10 to 1450 LVDS 50 3.3 -40 to +85 5.0 x 3.2 x 1.2 Low Jitter

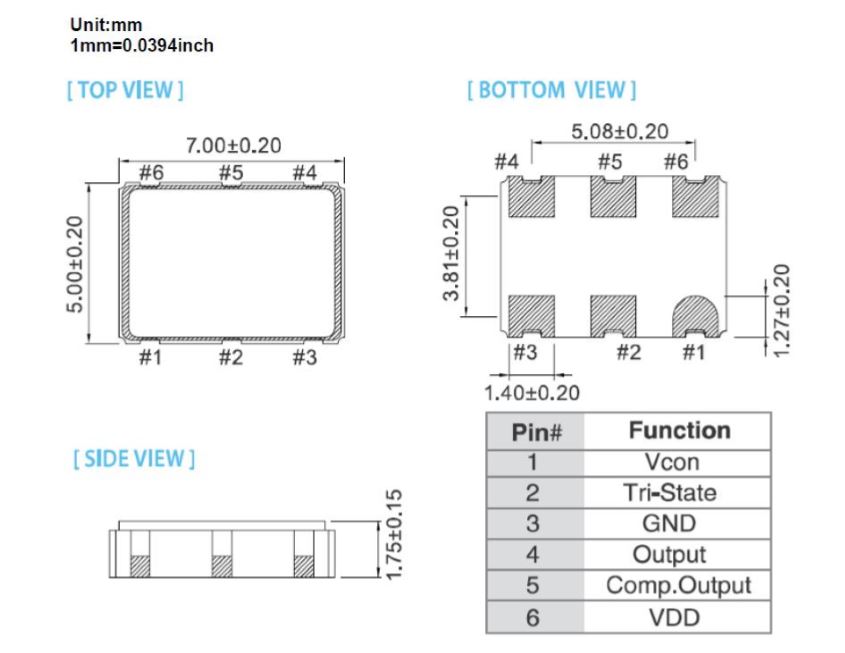

VCXO7500R-LVDS 10 to 1450 LVDS 50 3.3 -40 to +85 7.0 x 5.0 x 1.8 Low Jitter
VCXO7500S-LVPECL 100 to 800 LVPECL 25 3.3 -40 to +85 7.0 x 5.0 x 1.8 Low Jitter
VCXO5300S-CMOS 1.5 to 170 CMOS 25 3.3 -40 to +85 5.0 x 3.2 x 1.3 6-pad Standard
VCXO5300S-LPLV 20.0 to 175 LVDS, LVPECL 25 3.3 -40 to +85 5.0 x 3.2 x 1.3 6-pad Standard

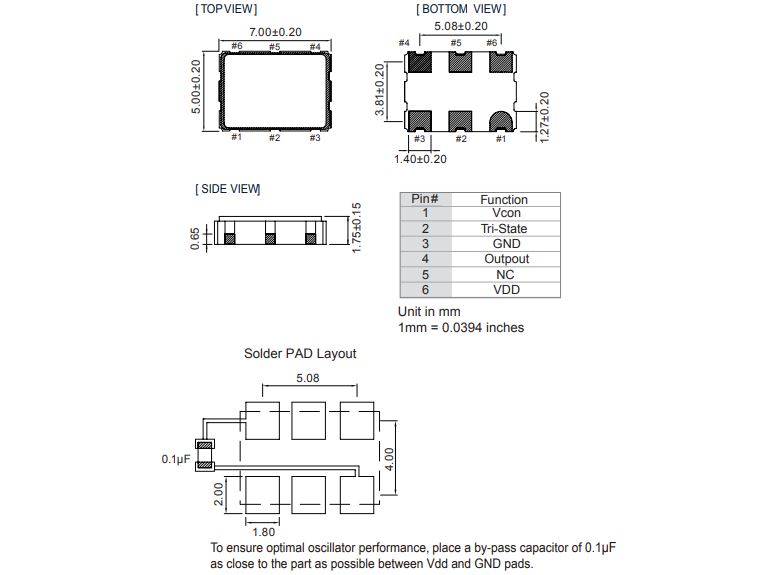

VCXO7500S_series 1.5 to 170 CMOS 25, 50 3.3 -10 to +85 7.0 x 5.0 x 1.75 SMD

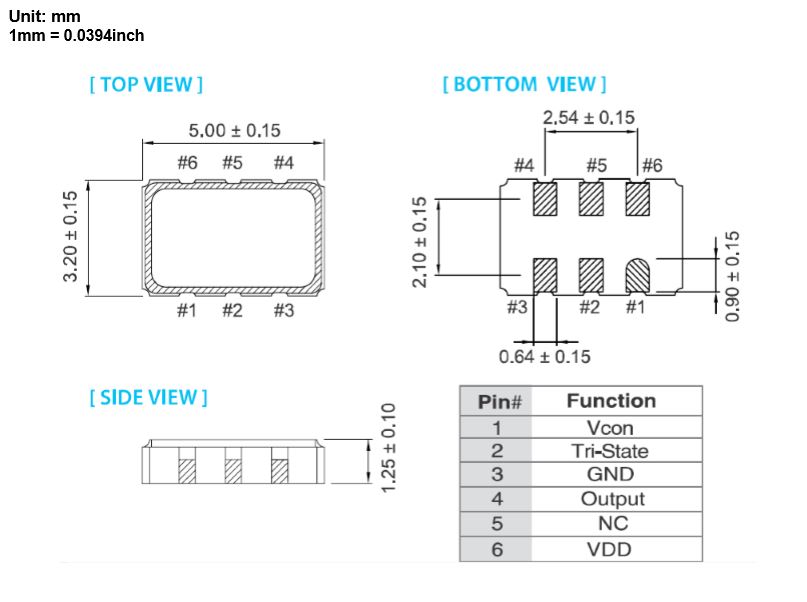

VCXO5300BM-170MHz-A-V 170 CMOS 25 3.3 -40 to +85 5.0 x 3.2 x 1.25 Low Phase Noise
VCXO7500BM-120MHz-A-V 120 CMOS 50 3.3 -40 to +85 7.0 x 5.0 x 1.45 Low Phase Noise
VCXO7500BM-122.88MHz-A-V 122.88 CMOS 50 3.3 -40 to +85 7.0 x 5.0 x 1.45 Low Phase Noise
VCXO7501BM-120MHz-A-V 120 CMOS 30 3.3 -40 to +85 7.0 x 5.0 x 1.7 Low Phase Noise
VCXO7501BM-122.88MHz-A-V 122.88 CMOS 30 3.3 -40 to +85 7.0 x 5.0 x 1.75 Low Phase Noise

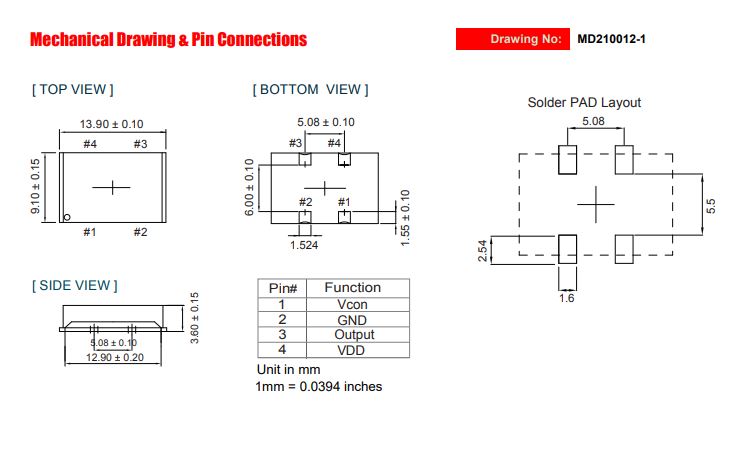

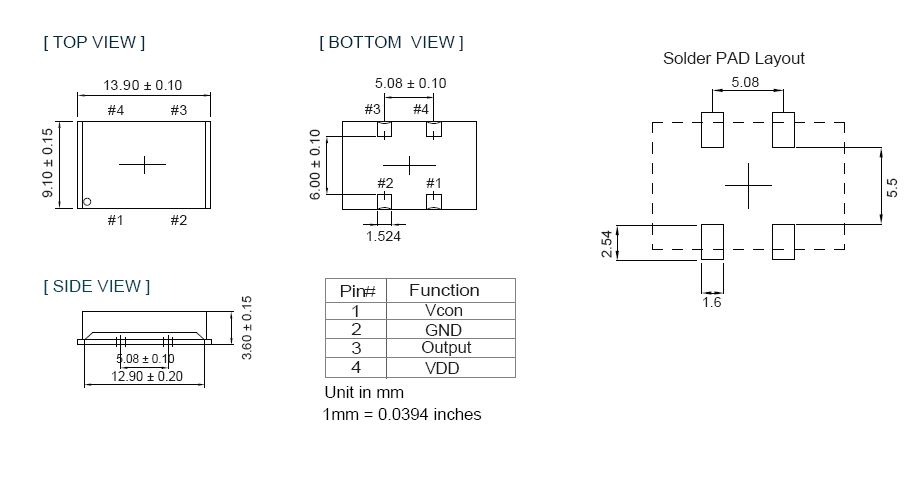

VCXO914BM-122.88MHz-A-V 122.88 CMOS 25 3.3 -20 to +70 13.9 x 9.1 x 3.6 Low Noise
VCXO7500BL-122.88MHz-A-V 122.88 PECEL 25 3.3 -40 to +85 7.0 x 5.0 x 1.8 Low Jitter
VCXO914BM-100MHz-B 100 Sinewave 35 5 -40 to +85 13.9 x 9.1 x 3.6 Low Noise
VCXO5300AX 10-170 HCMOS/TTL ±50 3.3 / 5.0 -40 to +85 5.0x 3.2 x 1.3 Low Noise and High Performance
VCXO1490AX 8MHz -1.5GHz LVDS/PECL ±50 3.3 / 5.0 -40 to +85 14.3 x 8.7 x 5.7 Low Noise and High Performance
