| 产品型号 | 规格书 | 产品图片 | 供电电压 (V) |
频率 (MHz) |
日老化率 (ppb/day) |
工作温度范围 (°C) |
相位噪声@10kHz(dBc/Hz) | 封装尺寸长 x 宽 x 高(mm) | 输出波形 | 频率稳定性与工作温度 | 稳定功率 |

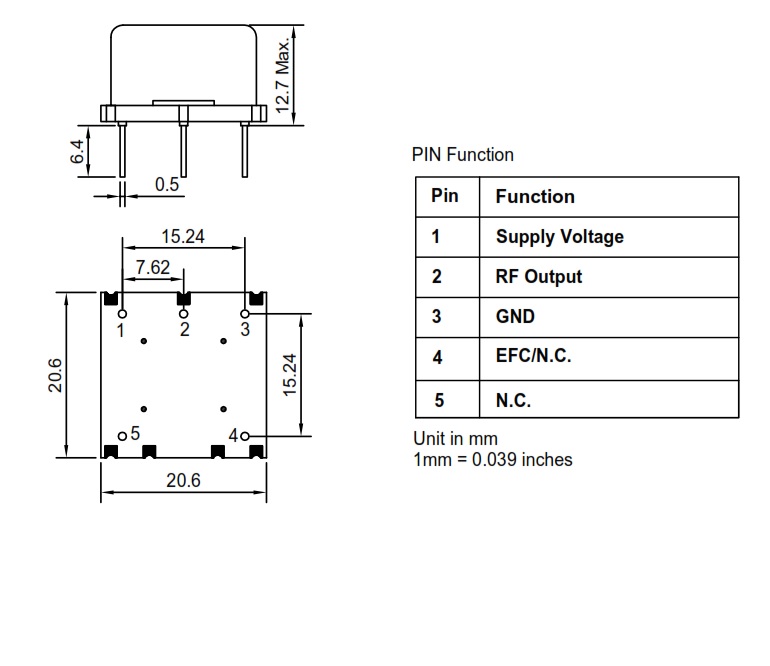

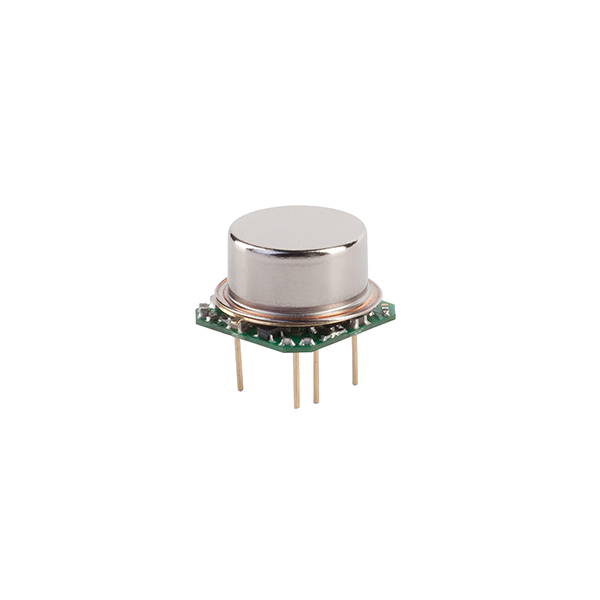

| OCXO2020AX-10MHz-B-V |
|
|
5.0V | 10MHz | ±1.0ppb/day | -20°C to +70°C | -155dBc/Hz | 20.6x20.6x12.7mm | Sinewave | ±20ppb | 1.5W Typ. |

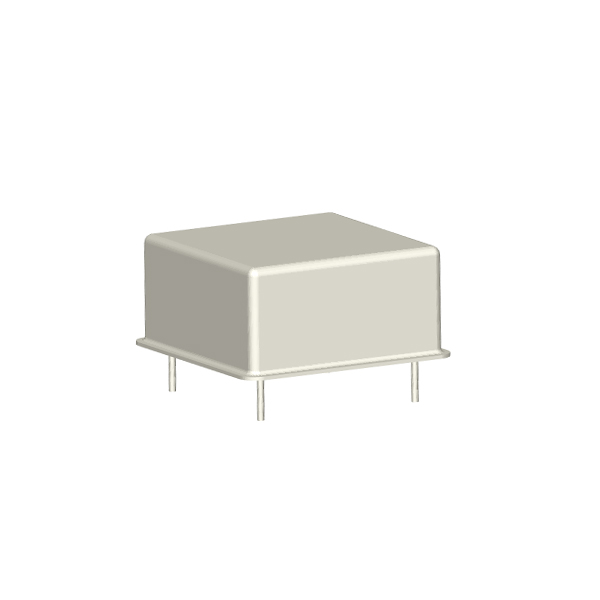

| OCXO2525CL-LN-120MHz-A-V |
|
|
12V | 120MHz | ±2ppb/day | -40°C to +85°C | -170dBc/Hz | 25.5x25.5x15mm | Sinewave | 50ppb | 1.5W |
| OCXO2020AW-LN-10MHz-A-V |
|
|
5.0V | 10MHz | 0.2ppb/day | -20°C to +70°C | -168dBc/Hz | 20.2x20.2x12.6mm | Sinewave | ±10ppb | 1200mW/MAX |
| OCXO2522AX |
|
|
3.3/5.0V | 10-120MHz | ±1.0ppb/day | -40°C to +85°C | -150dBc/Hz | 25.4x22x12.7mm | Sinewave or COMS/TTL | ±20.0ppb | 1.5W Typ |
| OCXO3627AX |
|
|
12.0/5.0V | 10-100MHz | ±1.0ppb/day | -40°C to +85°C | -155dBc/Hz | 36x27x12.7mm | Sinewave or COMS/TTL | ±20.0ppb | 2.0W Typ |
| OCXO2525N-17MHz-A |
|
|
3.3V | 17MHz | ±1.0ppb/day | -10°C to +70°C | -150dBc/Hz | 25.4x25.4x12.7mm | HCMOS | ±10ppb | 2.2W |
| OCXO3307AW-100MHz-688122 |
|
|
3.3V | 100MHz | ±3ppb/day | -40°C to +85°C | -165dBc/Hz | 20x15x9.5mm | Sinewave | ±50ppb | 0.12W |
| OCXO3627AM-12.8MHz-A-V |
|
|
5.0V | 12.8MHz | 5ppb/day | -40°C to +85°C | -120dBc/Hz | 36x27x12.7mm | Square wave | ±25ppb | 1.25W |
| OCXO3307CV-10MHz-A-V |
|
|
5.0V | 10MHz | ±0.3ppb/day | -40°C to +85°C | -167dBc/Hz | 20.5x15.3x9.0mm | Sinewave | ±5ppb | 0.25W |
| OCXO2020CV-40MHz-A-V |
|
|
5.0V | 40MHz | ±1.0ppb/day | -40°C to +85°C | -150dBc/Hz | 20.2x20.2x14.1mm | Sinewave | ±2ppb | 1.25W |
| OCXO2525CL-100MHz-A-V |
|
|
5V | 100 | ±3ppb/day | -40°C to +85°C | -155dBc/Hz | 25x25x12.7mm | Sinewave | ±20ppb | 1W |
| OCXO3317AW-100MHz-6-7-7-2-2 |
|
|
5.0V | 100MHz | ±2ppb/day | -40°C to +85°C | -165dBc/Hz | 16x15.3x11.6mm | Sinewave | ±100ppb | 0.2W |
| OCXO3627AR-40MHz-A-V |
|
|
5.0V | 40MHz | 2ppb/day | -20°C to +70°C | -155dBc/Hz | 36x27x15mm | CMOS | ±10ppb | 1.5W |
| OCXO1615C-SMD-100MHz-6-100-7-1-2 |
|
|
5.0V | 100 | ±2ppb/day | -40°C to +85°C | -165dBc/Hz | 16x15.24x9.5mm | Sinewave | ±100ppb | 0.25W |
| OCXO3307CV-28.8MHz-A-V |
|
|
5.0V | 28.8MHz | ±1.0ppb/day | -40°C to +85°C | -165dBc/Hz | 20.5x15.3x9.5mm | Sinewave | ±5ppb | 0.25W |
| OCXO3308CV-100MHz-A-V |
|
|
5.0V | 100MHz | ±2ppb/day | -40°C to +85°C | -165dBc/Hz | 20.5x15.3x9.5mm | Sinewave | ±10ppb | 0.25W |
| OCXO3307AW-10MHz-252112 |
|
|
3.3 | 10MHz | ±0.2ppb/day | -10°C to +60°C | -160dBc/Hz | 20.5x15.3x9.5mm | HCMOS | ±10ppb | 0.165W |
| OCXO3322AW02-50MHz-62121 |
|
|
5.0V | 50MHz | ±0.1ppb/day | -40°C to +85°C | -155dBc/Hz | 20.5x15.3x9.5mm | HCMOS | ±10ppb | 0.25W |
| OCXO2525CL-100MHz-B-V |
|
|
5.0V | 100MHz | ±3ppb/day | -40°C to +85°C | -155dBc/Hz | 25x25x12.7mm | Sinewave | ±50ppb | 1W |
| OCXO2525C_Rev2-6-6-6-1-2-100MHz |
|
|
5V | 100MHz | ±2ppb/day | -40°C to +85°C | -165dBc/Hz | 25.9x25.8x13.25mm | Sinewave | ±10ppb | 1.2W |
| OCXO3627CO-10MHz-B-V |
|
|
5V | 10MHz | ±0.5ppb/day | -20°C to +70°C | -150dBc/Hz | 36x27x15mm | Sinewave | ±10ppb | 1.5W |
| OCXO3627CV-10MHz-A-V |
|
|
5V | 10MHz | ±0.5ppb/day | -40°C to +85°C | -160dBc/Hz | 35.4x26.7x15.8mm | Sinewave | ±5ppb | 1.2W |
| OCXO2020AM-40.96MHz-A-V |
|
|
5.0V | 40.96MHz | ±10ppb/day | -20°C to +70°C | -160dBc/Hz | 20.2x20.2x10mm | Sinewave | ±5ppb | 1.5W |
| OCXO2525CL-32MHz-A |
|
|
3.3V | 32MHz | ±3ppb/day | -40°C to +70°C | -165dBc/Hz | 25x25x13mm | LVCMOS | ±2ppb | 1.32W |
| OCXO3627AM-32MHz-A-V |
|
|
3.3V | 32MHz | ±2ppb/day | -30°C to +85°C | -155dBc/Hz | 36x27x15mm | CMOS | ±2ppb | 0.99W |
