| 产品型号 | 规格书 | 产品图片 | 中心频率 (MHz) |
工作温度范围 (°C) |
封装尺寸 长 x 宽 x 高 (mm) |
插损(dB） | 纹波最大值(dB) | 通带 (±MHz) |
| SF1365AO-70MHz-A |
|
|
70 | -10°C to +70°C | 13.3 x 6.5 x 1.85 | 7.5 | 1 | 3.55 |
| SF1965AO-70MHz-A |
|
|
70 | 0°C to 70℃ | 1 9 x 6.5 | 15 | 1 | 3.2 |

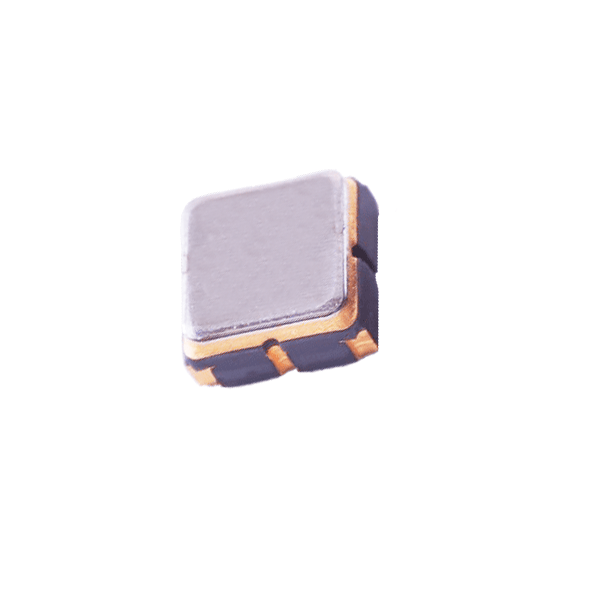

| SF3030AO-300MHz-A |
|
|
300 | -40°C to +85°C | 3 x 3 x 1.4 | 1.4 | / | 5 |
| SF1365AO-113MHz-A |
|
|
113 | -40°C to +85°C | 13.3 x 6.5 x 1.85 | 8 | 3 | 12 |
| SF1365AO- 127.5MHz-A |
|
|
127.5 | -40°C to +85°C | 13.3 x 6.5 x 1.85 | 8 | 3 | 21 |
| SF7500AO-332MHz-A |
|
|
332 | -40°C to +85°C | 7 x 5 x 1.82 | 8 | 3 | 7.5 |
| SF3030AO-1288MHz-A |
|
|
1288 | -40°C to +85°C | 3 x 3 x 1.4 | 3.4 | 3 | 1.73 |
| SF3030AO-1030MHz-A |
|
|
1030 | -55°C to +85°C | 3 x 3 x 1.4 | 3 | 2 | 10 |
| SF3030AO-1030MHz-B |
|
|
1030 | -40°C to +85°C | 3 x 3 x 1.4 | 2.7 | 2.2 | 6 |
| SF3030AO-1030MHz-C |
|
|
1030 | -20°C to +60°C | 3 x 3 x 1.4 | 3 | 1.2 | 2 |
| SF3030AO-1037.5MHz-A |
|
|
1037.5 | -30°C to +85°C | 3 x 3 x 1.4 | 2.5 | 1.5 | 25 |
| SF3030AO-1045MHz-A |
|
|
1045 | -40°C to +85°C | 3 x 3 x 1.4 | 4.8 | 2 | 10 |
| SF3030AO-1055MHz-A |
|
|
1055 | -55°C to +85°C | 3 x 3 x 1.4 | 3.8 | 1.5 | 44 |
| SF3030AO-1056MHz-A |
|
|
1056 | -30°C to +85°C | 3 x 3 x 1.4 | 2.6 | 1.5 | 30 |
| SF3030AO-1056MHz-B |
|
|
1056 | -55°C to +100°C | 3 x 3 x 1.4 | 2.6 | 2 | 30 |
| SF3030AO-1059MHz-A |
|
|
1059 | -40°C to +85°C | 3 x 3 x 1.4 | 1.7 | 2 | 16 |
| SF3030AO-1095MHz-A |
|
|
1095 | -55°C to +85°C | 3 x 3 x 1.4 | 3.8 | 1.5 | 44 |
| SF3030AO-1133MHz-A |
|
|
1133 | -55°C to +85°C | 3 x 3 x 1.4 | 3.4 | 2.2 | 35 |
| SF3030AO-1135MHz-A |
|
|
1135 | -55°C to +85°C | 3 x 3 x 1.4 | 3.8 | 1.5 | 44 |
| SF3030AO-1191.795MHz-A |
|
|
1191.795 | -55°C to +95°C | 3 x 3 x 1.4 | 2.4 | 2.8 | 32 |
| SF3030AO-1199MHz-A |
|
|
1199 | -40°C to +85°C | 3 x 3 x 1.4 | 4.6 | 3.5 | 108 |
| SF3030AO-1212MHz-A |
|
|
1212 | -40°C to +85°C | 3 x 3 x 1.4 | 1.9 | / | 55 |
| SF3030AO-1214.5MHz-A |
|
|
1214.5 | -40°C to +105°C | 3 x 3 x 1.4 | 2.5 | 2.8 | 47 |
| SF3030AO-1216.8MHz-A |
|
|
1216.8 | -40°C to +85°C | 3 x 3 x 1.4 | 3.5 | 1 | 1.6 |
| SF3030AO-1217MHz-A |
|
|
1217 | -30°C to +80°C | 3 x 3 x 1.4 | 3.1 | 3 | 44 |
| SF3030AO-1227.6MHz-A |
|
|
1227.6 | -40 to +85 | 3 x 3 x 1.4 | 2.5 | 1.6 | 2.4 |
| SF3030AO-1234.5MHz-A |
|
|
1234.5 | -40 to +105 | 3 x 3 x 1.4 | 2.8 | 2 | 39 |
| SF3030AO-1237.5MHz-A |
|
|
1237.5 | -30 to +80 | 3 x 3 x 1.4 | 2.8 | 1.7 | 24 |
| SF3030AO-1247.5MHz-A |
|
|
1247.5 | -55°C to +60°C | 3 x 3 x 1.4 | 2.6 | 1.45 | 19 |
| SF3030AO-1395MHz-A |
|
|
1395 | -40°C to +85°C | 3 x 3 x 1.4 | 3.3 | 1.8 | 90 |
| SF3030AO-1397.5MHz-A |
|
|
1397.5 | 0°C to +50°C | 3 x 3 x 1.4 | 2.7 | 1 | 5 |
| SF3030AO-1230MHz-A |
|
|
1230 | -40°C to +85°C | 3 x 3 x 1.4 | 2.8 | 4.4 | 40 |
| SF3030AO-1435MHz-A |
|
|
1435 | -40°C to +85°C | 3 x 3 x 1.4 | 4.2 | 3 | 50 |
| SF3030AO-1438MHz-A |
|
|
1438 | -40°C to +85°C | 3 x 3 x 1.4 | 4.2 | 3 | 50 |
| SF3030AO-1450MHz-A |
|
|
1450 | 0°C to +50°C | 3 x 3 x 1.4 | 2.5 | 1 | 5 |
| SF3030AO-1461.5MHz-A |
|
|
1461.5 | 0°C to +50°C | 3 x 3 x 1.4 | 2.8 | 1 | 5 |
| SF3030AO-1480MHz-A |
|
|
1480 | -40°C to +85°C | 3 x 3 x 1.4 | 3.2 | 1.8 | 90 |
| SF3030AO-1486.5MHz-A |
|
|
1486.5 | 0°C to +50°C | 3 x 3 x 1.4 | 3 | 1 | 5 |
| SF3030AO-1489MHz-A |
|
|
1489 | 0°C to +85°C | 3 x 3 x 1.4 | 2.75 | 1 | 5 |
| SF3030AO-1540MHz-A |
|
|
1540 | -20°C to +70°C | 3 x 3 x 1.4 | 3 | 2 | 13 |
| SF3030AO-1675MHz-A |
|
|
1675 | -40°C to +85°C | 3 x 3 x 1.4 | 3.7 | 1.8 | 100 |
| SF3030AO-1702.5MHz-A |
|
|
1702.5 | -40°C to +85°C | 3 x 3 x 1.4 | 2.2 | 1.0 | 15 |
| SF3030AO-1700MHz-A |
|
|
1700 | -40°C to +85°C | 3 x 3 x 1.4 | 4.3 | 2.5 | 30 |
| SF3030AO-1725MHz-A |
|
|
1725 | -40°C to +85°C | 3 x 3 x 1.4 | 1.8 | 1.8 | 20 |
| SF3030AO-1720MHz-A |
|
|
1720 | -40°C to +85°C | 3 x 3 x 1.4 | 1.7 | 2 | 24 |
| SF3030AO-1546.5MHz-A |
|
|
1546.5 | -40°C to +85°C | 3 x 3 x 1.4 | 2.1 | 2 | 57 |
| SF3030AO-1765MHz-A |
|
|
1765 | -20°C to +75°C | 3 x 3 x 1.4 | 2 | 1.8 | 30 |
| SF3030AO-1755MHz-A |
|
|
1755 | -40°C to +85°C | 3 x 3 x 1.4 | 2 | 1.8 | 40 |
| SF3030AO-1732.5MHz-A |
|
|
1732.5 | -30°C to +85°C | 3 x 3 x 1.4 | 2.5 | 2 | 45 |
| SF3030AO-1760MHz-A |
|
|
1760 | -40°C to +85°C | 3 x 3 x 1.4 | 2.4 | 3 | 50 |
| SF3030AO-1572.5MHz-A |
|
|
1572.5 | -20°C to +70°C | 3 x 3 x 1.4 | 1.85 | 2 | 30 |
| SF3030AO-1575.5MHz-A |
|
|
1575.5 | -55°C to +85°C | 3 x 3 x 1.4 | 3 | 1.2 | 13 |
| SF3030AO-1581MHz-A |
|
|
1581 | -20°C to +70°C | 3 x 3 x 1.4 | 2.6 | 2.7 | 42 |
| SF3030AO-1802.5MHz-A |
|
|
1802.5 | -40°C to +85°C | 3 x 3 x 1.4 | 3.4 | 1.5 | 95 |
| SF3030AO-1618MHz-A |
|
|
1618 | -40°C to +85°C | 3 x 3 x 1.4 | 3 | 1.5 | 17 |
| SF3030AO-1827.5MHz-A |
|
|
1827.5 | -40°C to +85°C | 3 x 3 x 1.4 | 2 | 2 | 45 |
| SF3030AO-1770MHz-A |
|
|
1770 | -40°C to +85°C | 3 x 3 x 1.4 | 2.2 | 3 | 30 |
| SF3030AO-1586MHz-A |
|
|
1586 | -20°C to +70°C | 3 x 3 x 1.4 | 1.2 | 2.5 | 42 |
| SF3030AO-1587.1MHz-A |
|
|
1587.1 | -40°C to +85°C | 3 x 3 x 1.4 | 2.4 | 1.2 | 55 |
| SF3030AO-1587MHz-A |
|
|
1587 | -60°C to +85°C | 3 x 3 x 1.4 | 3 | 2.2 | 51 |
| SF3030AO-1589.5MHz-A |
|
|
1589.5 | -40°C to +85°C | 3 x 3 x 1.4 | 2.7 | 2 | 49 |
| SF3030AO-1601MHz-A |
|
|
1601 | -55°C to +85°C | 3 x 3 x 1.4 | 3.4 | 1.5 | 16 |
| SF3030AO-1615.68MHz-A |
|
|
1615.68 | -55°C to +125°C | 3 x 3 x 1.4 | 2.2 | 2 | 8.16 |
| SF3030AO-1636.375MHz-A |
|
|
1636.375 | -20°C to +70°C | 3 x 3 x 1.4 | 2.6 | 2 | 12 |
| SF3030AO-1620MHz-A |
|
|
1620 | -50°C to +70°C | 3 x 3 x 1.4 | 1 | 1.5 | 10 |
| SF3030AO-1832.5MHz-A |
|
|
1832.5 | -30°C to +85°C | 3 x 3 x 1.4 | 1.8 | 2.3 | 55 |
| SF3030AO-1840MHz-A |
|
|
1840 | -40°C to +85°C | 3 x 3 x 1.4 | 1.8 | 1.8 | 20 |
| SF3030AO-1850MHz-A |
|
|
1850 | -40°C to +85°C | 3 x 3 x 1.4 | 1.8 | 1.5 | 40 |
| SF3030AO-1860MHz-A |
|
|
1860 | -20°C to +70°C | 3 x 3 x 1.4 | 1.9 | 2.2 | 35 |
| SF3030AO-1638MHz-A |
|
|
1638 | -40°C to +85°C | 3 x 3 x 1.4 | 3.6 | 2.2 | 30 |
| SF3030AO-1663MHz-A |
|
|
1663 | -40°C to +85°C | 3 x 3 x 1.4 | 3.5 | 2.2 | 30 |
| SF3030AO-1642.5MHz-A |
|
|
1642.5 | -20°C to +75°C | 3 x 3 x 1.4 | 1.8 | 2 | 35 |
| SF3030AO-1885MHz-A |
|
|
1885 | -30°C to +85°C | 3 x 3 x 1.4 | 2.4 | 2.5 | 70 |
| SF3030AO-1925MHz-A |
|
|
1925 | -20°C to +70°C | 3 x 3 x 1.4 | 1.3 | 1.3 | 10 |
| SF3030AO-1865MHz-A |
|
|
1865 | -40°C to +85°C | 3 x 3 x 1.4 | 2.1 | 3 | 30 |
| SF3030AO-1905MHz-A |
|
|
1905 | -40°C to +85°C | 3 x 3 x 1.4 | 2.7 | 1.6 | 50 |
| SF3030AO-1962.5MHz-A |
|
|
1962.5 | -20°C to +70°C | 3 x 3 x 1.4 | 2.6 | 2.2 | 65 |
| SF3030AO-1932.5MHz-A |
|
|
1932.5 | -20°C to +70°C | 3 x 3 x 1.4 | 1.7 | 1.3 | 15 |
| SF3030AO-1942MHz-A |
|
|
1942 | -50°C to +70°C | 3 x 3 x 1.4 | 3.3 | 3 | 50 |
| SF3030AO-1955MHz-A |
|
|
1955 | -40°C to +85°C | 3 x 3 x 1.4 | 1.7 | 3 | 30 |
| SF3030AO-1965MHz-A |
|
|
1965 | -30°C to +85°C | 3 x 3 x 1.4 | 2.4 | 2.5 | 70 |
| SF3030AO-1967.5MHz-A |
|
|
1967.5 | -20°C to +75°C | 3 x 3 x 1.4 | 2.7 | 2 | 35 |
| SF3030AO-1972.5MHz-A |
|
|
1972.5 | -20°C to +75°C | 3 x 3 x 1.4 | 1.8 | 2 | 15 |
| SF3030AO-2062.5MHz-A |
|
|
2062.5 | -20°C to +70°C | 3 x 3 x 1.4 | 2.8 | 2.5 | 75 |
| SF3030AO-2062.5MHz-A |
|
|
2062.5 | -20°C to +70°C | 3 x 3 x 1.4 | 2.8 | 2.5 | 75 |
| SF3030AO-2017MHz-A |
|
|
2017 | -30°C to +85°C | 3 x 3 x 1.4 | 1.9 | 2 | 19 |
| SF3030AO-1995MHz-A |
|
|
1995 | -40°C to +85°C | 3 x 3 x 1.4 | 2.4 | 3.5 | 30 |
| SF3030AO-2007.5MHz-A |
|
|
2007.5 | -40°C to +85°C | 3 x 3 x 1.4 | 2.3 | 1.6 | 25 |
