产品型号 | 频率 (MHz) |
通带 (±KHz) |
通带衰减 (dB) |
阻带 (±KHz) |
阻带衰减 (dB) |
插损(dB) | 纹波最大值(dB) | 封装尺寸长 x 宽 x 高(mm) | 规格书 | 产品图片 |
DEI9594-1.40MHz | 1.4 | ±3.0 | 3 | ±8.1 | 60 | 4 | 1 | 75.5 x 25.4 x 28.5 | ||
DEI5299-3.60MHz | 3.6 | ±1.8 | 6 | ±43 | 60 | 4 | 1 | 50.1 x 18.8 x 19.8 | ||
DEI2716-3.75MHz | 3.75 | ±1.5 | 3 | ±8 | 60 | 5 | 1 | 76.2 x 40.7 x 15.9 | ||
DEI9647-4.30MHz | 4.3 | ±20 | 6 | ±35 | 60 | 6 | 1 | 42.0 x 22.5 x 20.0 | ||
DEI9744-5.25MHz | 5.25 | ±3.5 | 2.5 | ±30 | 60 | 4.5 | 1.5 | 38.1 x 19.1 x 20.0 | ||

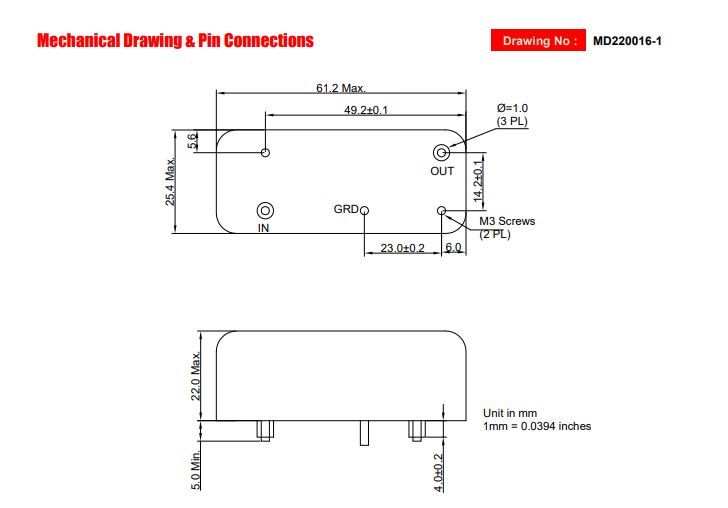

DEI5073-7.168MHz | 7.168 | ±0.6 | 3 | ±1.5 | 60 | 5 | 1 | 61.2 x 25.4 x 23.9 | ||
DEI9595-9.00MHz | 9 | ±2.8 | 6 | ±10 | 50 | 5 | 2 | 41.7 x 19.3 x 15.9 | ||
DEI9756-10.00MHz | 10 | ±1.5 | 6 | ±6 | 80 | 4 | 1 | 38.4 x 18.2 x 15.9 | ||
DEI9596-10.00MHz | 10 | ±15 | 6 | ±30 | 60 | 3 | 1 | 44.5 x 5.9 x 16.0 | ||
DEI9797-10.685MHz | 10.685 | ±6.5 | 3 | ±15 | 30 | 2 | 2 | 38.4 x 18.2 x 15.9 | ||
DEI9787-10.70MHz | 10.7 | ±4 | 3 | ±8 | 60 | 4 | 1 | 19.0 x 12.6 x 15.1 | ||
DEI9788-10.70MHz | 10.7 | ±8 | 3 | ±16 | 60 | 8 | 1 | 19.0 x 12.6 x 15.1 | ||
DEI9622-10.70MHz | 10.7 | ±10 | 6 | ±25 | 80 | 6 | 0.5 | 60.2 x 25.4 x 19.1 | ||
DEI9794-10.70MHz | 10.7 | ±15 | 3 | ±150 | 60 | 4 | 0.5 | 42.0 x 22.9 x 15.3 | ||
DEI9620-10.70MHz | 10.7 | ±100 | 3 | ±300 | 70 | 10 | 1 | 59.3 x 25.4 x 19.1 | ||
DEI9871-10.70MHz | 10.7 | ±25 | 7 | ±100 | 65 | 8 | 0.1 | 85.0 x 17.2 x 23.0 | ||
DEI9623-11.00MHz | 11 | ±9 | 3 | ±100 | 60 | 4.5 | 2 | 24.0 x 17.0 x 15.8 | ||
DEI9822-11.00MHz | 11 | ±12 | 3 | ±25 | 41 | 4 | 2 | 38.4 x 18.2 x 15.9 | ||
DEI9675-11.50MHz | 11.5 | ±8 | 3 | ±19 | 60 | 4 | 2 | 40.0 x 20.0 x 13.0 | ||
DEI9778-11.50MHz | 11.5 | ±18 | 6 | ±45 | 60 | 3.2 | 0.5 | 44.5 x 44.5 x 1.7 | ||
DEI9580-11.50MHz | 11.5 | ±31 | 3 | ±75 | 60 | 5 | 1.5 | 37.0 x 26.5 x 19.1 | ||
DEI2969-11.50MHz | 11.5 | ±41 | 6 | ±80 | 60 | 5 | 0.5 | 55.6 x 26.0 x 19.1 | ||
DEI5181-12.50MHz | 12.5 | ±9 | 3 | ±45 | 40 | 3.5 | 0.2 | 25.4 x 19.1 x 10.7 | ||
DEI9939-12.50MHz | 12.5 | ±10.5 | 3 | ±28 | 60 | 2.5 | 0.5 | 41.5 x 16.2 x 10.7 | ||
DEI5475-12.50MHz | 12.5 | ±10.5 | 3 | ±28 | 60 | 2.5 | 0.5 | 33.0 x 19.1 x 10.7 | ||
DEI5532-12.50MHz | 12.5 | ±10.5 | 3 | ±28 | 60 | 2.5 | 0.5 | 33.0 x 19.1 x 10.7 | ||
DEI9699-14.50MHz | 14.5 | ±8 | 3 | ±21.5 | 45 | 3.5 | 0.5 | 38.4 x 18.2 x 15.9 | ||
DEI9698-14.50MHz | 14.5 | ±9 | 3 | ±22.5 | 45 | 3.5 | 0.5 | 38.4 x 18.2 x 15.9 | ||
DEI9762-14.50MHz | 14.5 | ±12 | 3 | ±34 | 80 | 3.5 | 0.5 | 40.0 x 20.0 x 11.0 | ||
DEI9800-14.525MHz | 14.525 | ±12 | 3 | ±34 | 80 | 3.5 | 0.5 | 40.0 x 20.0 x 11.0 | ||
DEI5298-15.00MHz | 15 | ±2.5 | 3 | ±19 | 80 | 4 | 1 | 50.5 x 19.3 x 19.3 | ||
DEI9597-15.00MHz | 15 | ±18 | 3 | ±100 | 60 | 4 | 1 | 38.4 x 18.0 x 15.0 | ||
DEI9598-17.00MHz | 17 | ±25 | 3 | ±62.5 | 30 | 4 | 1.6 | 25.4 x 15.8 x 11.2 | ||
DEI2698-18.10MHz | 18.1 | ±3.0 | 3 | ±75 | 80 | 4 | 1 | 38.4 x 19.3 x 13.0 | ||
DEI9599-20.00MHz | 20 | ±1.8 | 6 | ±20 | 70 | 4 | 1 | 57.2 x 19.5 x 19.1 | ||
DEI9600-20.00MHz | 20 | ±1.5 | 3 | ±36 | 60 | 5 | 1 | 53.4 x 19.45 x 16.5 | ||
DEI4758-20.025MHz | 20.025 | ±20 | 6 | ±19.6 | 60 | 6 | 1 | 38.4 x 18.2 x 13.0 | ||
DEI4759-20.05MHz | 20.05 | ±3.5 | 2.5 | ±33 | 60 | 4.5 | 1.5 | 44.5 x 5.9 x 16.0 | ||
DEI4316-20.40MHz | 20.4 | ±0.6 | 3 | ±160 | 50 | 5 | 1 | 38.4 x 18.2 x 13.0 | ||
DEI9808-20.70MHz | 20.7 | ±2.8 | 6 | ±8.75 | 45 | 5 | 2 | 11.0 x 8.5 x 6.0 | ||
DEI9850-20.70MHz | 20.7 | ±1.5 | 6 | ±8.75 | 45 | 4 | 1 | 11.0 x 8.5 x 6.0 | ||
DEI9116-21.40MHz | 21.4 | ±3.5 | 3 | ±6.5 | 60 | 4.5 | 2 | 41.5x16.2x12.0 | ||
DEI9117-21.40MHz | 21.4 | ±12.0 | 3 | ±23 | 70 | 3.5 | 2 | 41.5x16.2x12.0 | ||
DEI9835-21.40MHz | 21.4 | ±15 | 6 | ±8.75 | 45 | 3 | 1 | 11.0 x 8.5 x 6.0 | ||
DEI9842-21.40MHz | 21.4 | ±6.5 | 3 | ±6.7 | 45 | 2 | 2 | 38.4 x 18.2 x 13.0 | ||
DEI9766-21.40MHz | 21.4 | ±4 | 3 | ±17.5 | 65 | 4 | 1 | 11.0 x 8.5 x 11.5 | ||
DEI9839-21.40MHz | 21.4 | ±8 | 3 | ±20 | 60 | 8 | 1 | 25.0 x 14.0 x 10.0 | ||
DEI9831-21.40MHz | 21.4 | ±10 | 6 | ±100 | 70 | 6 | 0.5 | 38.4 x 18.2 x 13.0 | ||
DEI9783-21.40MHz | 21.4 | ±15 | 3 | ±30 | 60 | 4 | 0.5 | 38.4 x 18.2 x 13.0 | ||
DEI9750-21.40MHz | 21.4 | ±100 | 3 | ±150 | 60 | 10 | 1 | 38.4 x 18.2 x 13.0 | ||
DEI9838-21.40MHz | 21.4 | ±25 | 7 | ±150 | 60 | 8 | 0.1 | 38.4 x 18.2 x 13.0 | ||
DEI5538-21.40MHz | 21.4 | ±9 | 3 | ±370 | 60 | 4.5 | 2 | 44.5 x 16.0 x 15.3 | ||
DEI9928-21.45MHz | 21.45 | ±15 | 3 | ±35 | 65 | 3 | 2 | 11.0 x 8.5 x 6.0 | ||
DEI9916-21.4865MHz | 21.4865 | ±3.75 | 3 | ±8.75 | 45 | 3.5 | 2 | 11.0 x 8.5 x 6.0 | ||
DEI9917-21.4865MHz | 21.4865 | ±10 | 3 | ±24.5 | 45 | 3 | 2 | 11.0 x 8.5 x 6.0 | ||
DEI9840-21.65MHz | 21.65 | ±12 | 3 | ±80 | 60 | 4 | 2 | 25.0 x 14.0 x 10.0 | ||
DEI9870-22.50MHz | 22.5 | ±8 | 3 | ±100 | 60 | 4 | 2 | 25.0 x 14.0 x 10.0 | ||
DEI5300-25.50MHz | 25.5 | ±18 | 6 | ±90 | 70 | 3.2 | 0.5 | 19.1 x 17.8 x 12.7 | ||
DEI5382-27.0208MHz | 27.0208 | ±25 | 3 | ±10 | 30 | 6 | 0.5 | 50.3 x 17.2 x 6.6 | ||
DEI5377-30.00MHz | 30 | ±28 | 1.5 | ±70 | 60 | 4 | 1.5 | 50.8 x 20.3 x 12.7 | ||
DEI9843-30.00MHz | 30 | ±31 | 3 | ±11.5 | 70 | 5 | 1.5 | 15.6 x 6.4 x 16.0 | ||
DEI9827-30.00MHz | 30 | ±41 | 6 | ±50 | 15 | 5 | 0.5 | 15.6 x 6.4 x 16.0 | ||
DEI9833-30.00MHz | 30 | ±9 | 3 | ±70 | 20 | 3.5 | 0.2 | 25.0 x 15.0 x 10.5 | ||
DEI5380-32.768MHz | 32.768 | ±3.8 | 6 | ±16 | 40 | 6 | 0.5 | 28.0 x 15.2 x 12.0 | ||
DEI9967-37.50MHz | 37.5 | ±35 | 6 | ±150 | 45 | 3 | 1.5 | 30.0 x 15.0 x 5.0 | ||
DEI9769-37.50MHz | 37.5 | ±10.5 | 3 | ±140 | 50 | 2.5 | 0.5 | 25.0 x 14.0 x 10.0 | ||
DEI9785-40.04MHz | 40.04 | ±10.5 | 3 | ±40 | 50 | 2.5 | 0.5 | 23.6 x 13.0 x 15.3 | ||
DEI9868-40.455MHz | 40.455 | ±10.5 | 3 | ±16.5 | 60 | 2.5 | 0.5 | 60.0 x 25.4 x 12.4 | ||
DEI9869-40.455MHz | 40.455 | ±8 | 3 | ±100 | 50 | 3.5 | 0.5 | 60.0 x 25.4 x 12.4 | ||
DEI9857-42.00MHz | 42 | ±9 | 3 | ±500 | 50 | 3.5 | .5 | 25.0 x 14.0 x 10.0 | ||
DEI9858-43.50MHz | 43.5 | ±12 | 3 | ±27 | 40 | 3.5 | .5 | 25.0 x 14.0 x 10.0 | ||
DEI9927-43.50MHz | 43.5 | ±180 | 1 | ±430 | 40 | 6 | .5 | 38.0 x 16.5 x 9.0 | ||
DEI5364-45.00MHz | 45 | ±55 | 3 | ±300 | 40 | 3.5 | 1 | 48.3 x 17.2 x 9.0 | ||
DEI9786-46.08MHz | 46.08 | ±12 | 3 | ±?50 | 40 | 3.5 | .5 | 25.0 x 14.0 x 10.0 | ||
DEI5354-56.96MHz | 56.96 | ±16 | 1 | ±85 | 30 | 4 | 0.5 | 38.0 x 25.0 x 10.0 | ||
DEI5383-60.00MHz | 60 | ±45 | 3 | ±115 | 60 | 4 | 1 | 50.8 x 5.5 x 15.5 | ||
DEI5356-63.078MHz | 63.078 | ±6 | 3 | ±25 | 60 | 6 | 0.5 | 55.0 x 20.0 x 22.0 | ||
DEI5347-69.50MHz | 69.5 | ±175 | 3 | ±500 | 20 | 7.5 | / | 32.0 x 12.7 x 10.0 | ||
DEI9970-70.00MHz | 70 | ±100 | 3 | ±200 | 28 | 6 | 0.5 | 39.0 x 15.5 x 15.5 | ||
DEI9971-70.00MHz | 70 | ±52.5 | 3 | ±200 | 27 | 4 | / | 39.0 x 15.5 x 15.5 | ||
DEI9998-70.00MHz | 70 | ±30 | 1 | ±50 | 7 | 6 | 0.7 | 25.0 x 14.0 x 8.0 | ||
DEI5348-70.00MHz | 70 | ±175 | 3 | ±500 | 20 | 7 | / | 32.0 x 12.7 x 10.0 | ||
DEI5346-70.25MHz | 70.25 | ±12.5 | 1 | ±110 | 45 | 3.5 | / | 32.0 x 12.7 x 10.0 | ||
DEI9856-73.50MHz | 73.5 | ±2.5 | 3 | ±60 | 30 | 4 | 1 | 18.5 x 10.5 x 4.0 | ||
DEI5353-75.00MHz | 75 | ±11 | 6 | ±100 | 40 | 6 | 1 | 36.0 x 13.0 x 12.0 | ||
DEI9862-80.15MHz | 80.15 | ±18 | 3 | ±12.5 | 30 | 4 | 1 | 38.4 x 18.2 x 13.0 | ||
DEI9948-86.5125MHz | 86.5125 | ±7.5 | 3 | ±12.5 | 10 | 6 | 2 | 25.0 x 14.0 x 10.0 | ||
DEI9826-91.4649MHz | 91.4649 | ±25 | 3 | ±50 | 30 | 4 | 1.6 | 38.4 x 18.2 x 16.0 | ||
DEI9776-94.05MHz | 94.05 | ±65 | 3 | ±450 | 50 | 9 | 1.5 | 56.0 x 19.0 x 9.5 | ||
DEI9828-100.7983MHz | 100.7983 | ±25 | 3 | ±30 | 20 | 4 | 1.6 | 25.0 x 14.0 x 10.0 | ||
DEI9818-109.35MHz | 109.35 | ±25 | 3 | ±45 | 50 | 4 | 1.6 | 35.6 x 11.5 x 11.5 | ||
DEI9747-109.35MHz | 109.35 | ±5 | 1 | ±45 | 50 | 6.5 | 1 | 36.0 x 11.5 x 8.0 | ||
DEI9931-124.80MHz | 124.8 | ±26 | 3 | ±50 | 8 | 6.5 | .5 | 36.0 x 16.5 x 13.5 | ||
DEI5372-141.558MHz | 141.558 | ±8 | 3 | ±50 | 40 | 4.5 | 1 | 43.2 x 16.5 x 14.0 | ||
DMCF10A001-10.70MHz | 10.7 | ±3.75 | 3 | ±8.75 | 70 | 4 | 2 | 38.4 x 18.2 x 15.9 | ||
DMCF10A002-10.70MHz | 10.7 | ±6.0 | 3 | ±14 | 70 | 3.5 | 2 | 38.4 x 18.2 x 15.9 | ||
DMCF10A003-10.70MHz | 10.7 | ±7.5 | 3 | ±17.5 | 70 | 3.5 | 2 | 38.4 x 18.2 x 15.9 | ||
DMCF10A004-10.70MHz | 10.7 | ±15 | 3 | ±35.00 | 70 | 4 | 2 | 38.4 x 18.2 x 15.9 | ||
DMCF10B001-10.70MHz | 10.7 | ±3.75 | 3 | ±8.75 | 70 | 4 | 2 | 38.4 x 18.2 x 15.9 | ||
DMCF10B002-10.70MHz | 10.7 | ±6.0 | 3 | ±14 | 70 | 4 | 2 | 38.4 x 18.2 x 15.9 | ||
DMCF10B003-10.70MHz | 10.7 | ±7.5 | 3 | ±17.5 | 70 | 4 | 2 | 38.4 x 18.2 x 15.9 | ||
DMCF10B004-10.70MHz | 10.7 | ±15 | 3 | ±35.00 | 70 | 4 | 2 | 38.4 x 18.2 x 15.9 | ||
DMCF10C001-10.70MHz | 10.7 | ±3.75 | 3 | ±9.0 | 70 | 4 | 2 | 38.4 x 18.2 x 15.9 | ||
DMCF10C002-10.70MHz | 10.7 | ±6.0 | 3 | ±14 | 70 | 3.5 | 2 | 38.4 x 18.2 x 15.9 | ||
DMCF10C003-10.70MHz | 10.7 | ±7.5 | 3 | ±17.5 | 70 | 3.5 | 2 | 38.4 x 18.2 x 15.9 | ||
DMCF10C004-10.70MHz | 10.7 | ±15 | 3 | ±35.00 | 70 | 4 | 2 | 38.4 x 18.2 x 15.9 | ||
DMCF10E001-10.70MHz | 10.7 | ±3.75 | 3 | ± 14 | 40 | 2.5 | 1 | 21.6 x 9.4 x 27.0 | ||
DMCF10E002-10.70MHz | 10.7 | ±3.75 | 3 | ±8.75 | 45 | 3.5 | 2 | 15.0 x 12.0 x 8.0 | ||
DMCF10E003-10.70MHz | 10.7 | ±3.75 | 3 | ±8.75 | 60 | 4 | 2 | 18.5 x 12.0 x 11.5 | ||
DMCF10E004-10.70MHz | 10.7 | ±6 | 3 | ± 20 | 40 | 2.5 | 1 | 21.6 x 9.4 x 27.0 | ||
DMCF10E005-10.70MHz | 10.7 | ±6 | 3 | ±14 | 45 | 3 | 2 | 15.0 x 12.0 x 8.0 | ||
DMCF10E006-10.70MHz | 10.7 | ±6 | 3 | ±14 | 60 | 3.5 | 2 | 18.5 x 12.0 x 11.5 | ||
DMCF10E007-10.70MHz | 10.7 | ±7.5 | 3 | ± 25 | 40 | 2 | 1 | 21.6 x 9.4 x 27.0 | ||
DMCF10E008-10.70MHz | 10.7 | ±7.5 | 3 | ±17.5 | 45 | 3 | 2 | 15.0 x 12.0 x 8.0 | ||
DMCF10E009-10.70MHz | 10.7 | ±7.5 | 3 | ±15 | 60 | 3.5 | 2 | 18.5 x 12.0 x 11.5 | ||
DMCF10E010-10.70MHz | 10.7 | ±10 | 3 | ± 35 | 40 | 3 | 2 | 21.6 x 9.4 x 27.0 | ||
DMCF10E011-10.70MHz | 10.7 | ±10 | 3 | ±24.5 | 45 | 3 | 2 | 15.0 x 12.0 x 8.0 | ||
DMCF10E012-10.70MHz | 10.7 | ±10 | 3 | ±24.5 | 60 | 3.5 | 2 | 18.5 x 12.0 x 11.5 | ||
DMCF10E013-10.70MHz | 10.7 | ±15 | 3 | ± 50 | 40 | 2.5 | 1 | 21.6 x 9.4 x 27.0 | ||
DMCF10E014-10.70MHz | 10.7 | ±15 | 3 | ±50 | 60 | 3 | 2 | 15.0 x 12.0 x 8.0 | ||
DMCF10E015-10.70MHz | 10.7 | ±15 | 3 | ±30 | 60 | 3.5 | 2 | 18.5 x 12.0 x 11.5 | ||
DMCF21A001-21.40MHz | 21.4 | ±3.75 | 3 | ±8.75 | 70 | 4 | 2 | 25.0 x 14.0 x 10.0 | ||
DMCF21A002-21.40MHz | 21.4 | ±6.0 | 3 | ±14 | 70 | 3.5 | 2 | 25.0 x 14.0 x 10.0 | ||
DMCF21A003-21.40MHz | 21.4 | ±7.5 | 3 | ±17.5 | 70 | 3.5 | 2 | 25.0 x 14.0 x 10.0 | ||
DMCF21A004-21.40MHz | 21.4 | ±15 | 3 | ±35.00 | 70 | 4 | 2 | 25.0 x 14.0 x 10.0 | ||
DMCF21B001-21.40MHz | 21.4 | ±3.75 | 3 | ±8.75 | 70 | 4 | 2 | 25.0 x 14.0 x 10.0 | ||
DMCF21B002-21.40MHz | 21.4 | ±6.0 | 3 | ±14 | 70 | 3.5 | 2 | 25.0 x 14.0 x 10.0 | ||
DMCF21B003-21.40MHz | 21.4 | ±7.5 | 3 | ±17.5 | 70 | 3.5 | 2 | 25.0 x 14.0 x 10.0 | ||
DMCF21B004-21.40MHz | 21.4 | ±15 | 3 | ±35.00 | 70 | 4 | 2 | 25.0 x 14.0 x 10.0 | ||
DMCF21C001-21.40MHz | 21.4 | ±3.75 | 3 | ±8.75 | 70 | 4 | 2 | 25.0 x 14.0 x 10.0 | ||
DMCF21C002-21.40MHz | 21.4 | ±6.0 | 3 | ±14 | 70 | 3.5 | 2 | 25.0 x 14.0 x 10.0 | ||
DMCF21C003-21.40MHz | 21.4 | ±7.5 | 3 | ±17.5 | 70 | 3.5 | 2 | 25.0 x 14.0 x 10.0 | ||
DMCF21C004-21.40MHz | 21.4 | ±15 | 3 | ±35.00 | 70 | 4 | 2 | 25.0 x 14.0 x 10.0 | ||
DMCF21D001-21.40MHz | 21.4 | ±3.75 | 3 | ± 14 | 40 | 2.5 | 1 | 15.6 x 6.4 x 16.0 | ||
DMCF21D002-21.40MHz | 21.4 | ±3.75 | 3 | ±8.75 | 45 | 3.5 | 2 | 11.0 x 8.5 x 6.0 | ||
DMCF21D003-21.40MHz | 21.4 | ±3.75 | 3 | ±8.75 | 60 | 4 | 2 | 11.0 x 8.5 x 6.0 | ||
DMCF21D004-21.40MHz | 21.4 | ±6 | 3 | ± 20 | 40 | 2.5 | 1 | 15.6 x 6.4 x 16.0 | ||
DMCF21D005-21.40MHz | 21.4 | ±6 | 3 | ±14 | 45 | 3 | 2 | 11.0 x 8.5 x 6.0 | ||
DMCF21D006-21.40MHz | 21.4 | ±6 | 3 | ±14 | 60 | 3.5 | 2 | 11.0 x 8.5 x 6.0 | ||
DMCF21D007-21.40MHz | 21.4 | ±7.5 | 3 | ± 25 | 40 | 2.5 | 1 | 15.6 x 6.4 x 16.0 | ||
DMCF21D008-21.40MHz | 21.4 | ±7.5 | 3 | ±17.5 | 45 | 2.5 | 2 | 11.0 x 8.5 x 6.0 | ||
DMCF21D009-21.40MHz | 21.4 | ±7.5 | 3 | ±15 | 60 | 3 | 2 | 11.0 x 8.5 x 6.0 | ||
DMCF21D010-21.40MHz | 21.4 | ±10 | 3 | ± 35 | 40 | 2.5 | 1 | 15.6 x 6.4 x 16.0 | ||
DMCF21D011-21.40MHz | 21.4 | ±10 | 3 | ±24.5 | 45 | 3 | 2 | 11.0 x 8.5 x 6.0 | ||
DMCF21D012-21.40MHz | 21.4 | ±10 | 3 | ±24.5 | 60 | 3.5 | 2 | 11.0 x 8.5 x 6.0 | ||
DMCF21D013-21.40MHz | 21.4 | ±15 | 3 | ± 50 | 40 | 2 | 1 | 15.6 x 6.4 x 16.0 | ||
DMCF21D014-21.40MHz | 21.4 | ±15 | 3 | ±35 | 45 | 2.5 | 2 | 11.0 x 8.5 x 6.0 | ||
DMCF21D015-21.40MHz | 21.4 | ±15 | 3 | ±35 | 65 | 3.5 | 2 | 11.0 x 8.5 x 6.0 | ||
DMCF45C001-45.00MHz | 45 | ±3.75 | 3 | ±12.5 | 30 | 4 | 1 | 15.6 x 6.4 x 16.0 | ||
DMCF45C002-45.00MHz | 45 | ±7.5 | 3 | ±30 | 35 | 3 | 1 | 15.6 x 6.4 x 16.0 | ||
DMCF45C003-45.00MHz | 45 | ±10.0 | 3 | ±40 | 35 | 3 | 1 | 15.6 x 6.4 x 16.0 | ||
DMCF45C004-45.00MHz | 45 | ±15.0 | 3 | ±50 | 30 | 3 | 1 | 15.6 x 6.4 x 16.0 | ||
DMCF45F001-45.00MHz | 45 | ±3.75 | 3 | ±12.5 | 30 | 4 | 1 | 15.6 x 6.4 x 16.0 | ||
DMCF45F002-45.00MHz | 45 | ±7.5 | 3 | ±25.0 | 30 | 3 | 1 | 15.6 x 6.4 x 16.0 | ||
DMCF45F003-45.00MHz | 45 | ±10 | 3 | ±48.0 | 40 | 3 | 1 | 15.6 x 6.4 x 16.0 | ||
DMCF45F004-45.00MHz | 45 | ±15.0 | 3 | ±50 | 30 | 3 | 1 | 15.6 x 6.4 x 16.0 | ||
DEI9724-1.40MHz | 1.4 | - 350, - 2700 | 6 | + 500, + 3400 | 60 | 6 | 2 | 76.2 x 27.0 x 30.5 | ||
DEI9725-1.40MHz | 1.4 | + 350, + 2700 | 6 | - 500, -3400 | 25, 60 | 6 | 3 | 76.2 x 27.0 x 30.5 | ||
DEI9733-1.40MHz | 1.4 | ± 100 | 2 | ± 300, ± 1200 | 60 | 4 | 2 | 76.2 x 27.0 x 30.5 | ||
DEI9588-1.65MHz | 1.65 | - 350, -2500 | 6 | + 1500, - 4000 | 60 | 3 | 1.5 | 65.6 x 44.5 x 33.3 | ||
DEI9589-1.65MHz | 1.65 | + 350, + 2500 | 6 | + 2100, - 5000 | 60 | 3 | 1.5 | 65.6 x 44.5 x 33.3 | ||
DEI3919-1.75MHz | 1.75 | + 300, + 3400 | 2 | - 300, + 4500 | 35 | 6 | 1.5 | 95.2 x 50.8 x 25.4 | ||
DEI9829-4.80MHz | 4.8 | - 300, - 3100 | 6 | + 400, - 3900 | 60 | 3.5 | 2 | 36.1 x 27.2 x 19.0 | ||
DEI9590-5.00MHz | 5 | + 250, + 2800 | 6 | - 1500, + 4500 | 50 | 6 | 2 | 57.2 x 25.4 x 19.1 | ||
DEI9591-5.20MHz | 5.2 | + 300, + 3400 | 1.5 | - 1000, + 4570 | 60 | 5 | 0.5 | 57.2 x 25.4 x 19.1 | ||
DEI9745-5.25MHz | 5.25 | + 350, + 3400 | 2.5 | - 1000, + 5000 | 60 | 4.5 | 1 | 57.5 x 19.4 x 24.2 | ||
DEI9746-5.251MHz | 5.251 | ± 120 | 3 | ± 2000 | 60 | 4.5 | 0.5 | 25.6 x 19.3 x 24.2 | ||
DEI9592-6.12MHz | 6.12 | + 300, + 3850 | 2 | - 400, + 6000 | 60, 40 | 1.5 | 0.5 | 65.1 x 30.2 x 23.0 | ||
DEI9789-8.40MHz | 8.4 | + 350, + 3400 | 2.5 | - 1000, + 5000 | 60 | 4.5 | 1.5 | 40.0 x 20.0 x 14.0 | ||
DEI9593-10.50MHz | 10.5 | + 350, + 3000 | 2 | - 1500, + 5000 | 60 | 5 | 2 | 58.8 x 19.1 x 19.1 | ||
DEI9594-10.50MHz | 10.5 | - 300, - 3000 | 2 | + 1500, - 5000 | 60 | 4 | 1 | 58.8 x 19.1 x 19.1 | ||
DEI8739-10.70MHz | 10.7 | - 400, - 2700 | 3 | + 650, - 3400 | 60 | 6 | 2 | 50.0 x 40.0 x 20.0 | ||
DEI9740-10.70MHz | 10.7 | + 400, + 2700 | 3 | - 650, + 3400 | 60 | 6 | 2 | 50.0 x 40.0 x 20.0 | ||
DEI9812-21.40MHz | 21.4 | - 400, - 2600 | 6 | + 700, - 4000 | 40 | 4 | 2 | 38.4 x 18.2 x 15.9 | ||

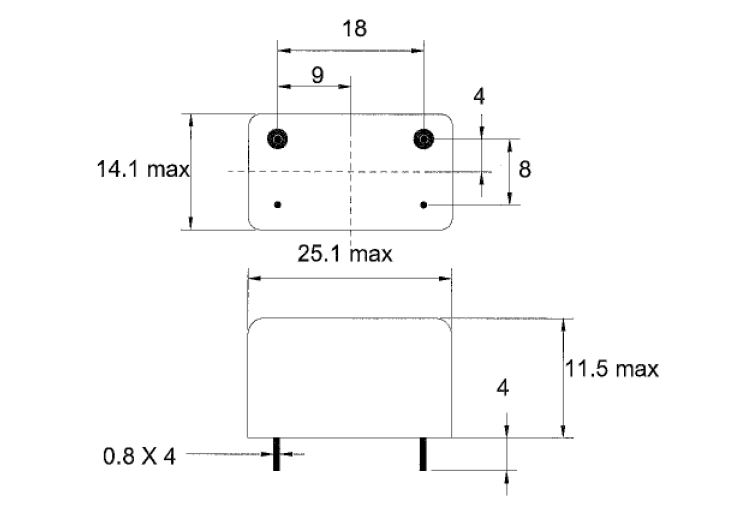

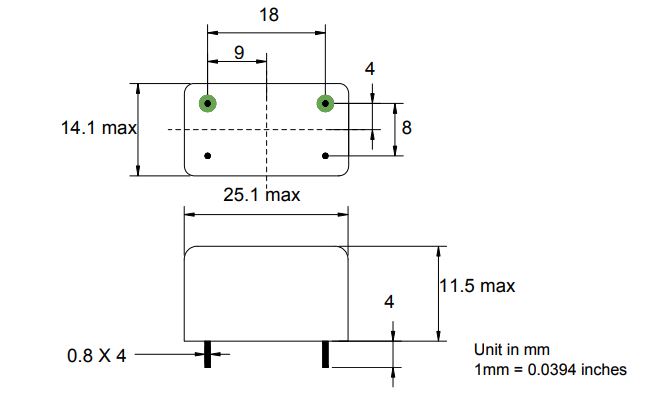

DEI5752-124.8MHz | 124.8 | 35 | 3 | 150 | -40 | 4 | 0.5 | 25.1 x 14.1 x 11.5 | ||

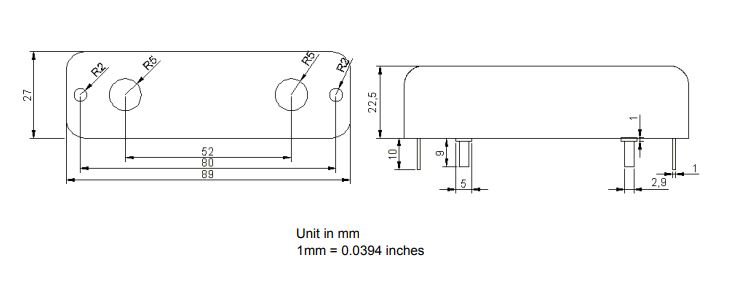

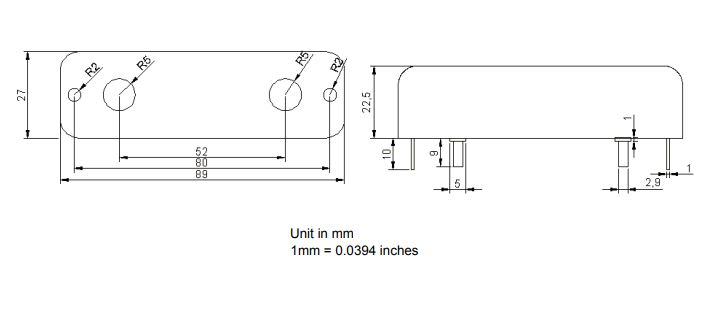

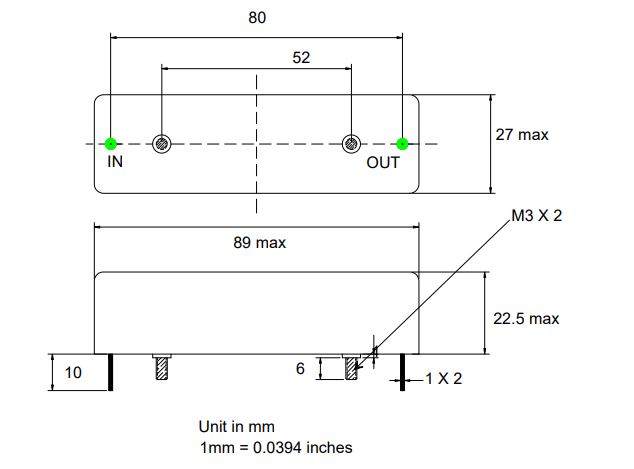

DEI5764-1.4MHz | 1.4 | 1.5 | 3 | 4.2 | 50 | 5 | 1 | 89.0 x 27.0 x 22.5 | ||
DEI5763-1.4MHz | 1.4 | 0.3, 3 | 3 | 4 | 45 | 5 | 1 | 89.0 x 27.0 x 22.5 | ||
DEI5773-1.4MHz | 1.4 | 0.5 | 3 | 1.5 | 60 | 5 | 2 | 89.0 x 27.0 x 22.5 | ||

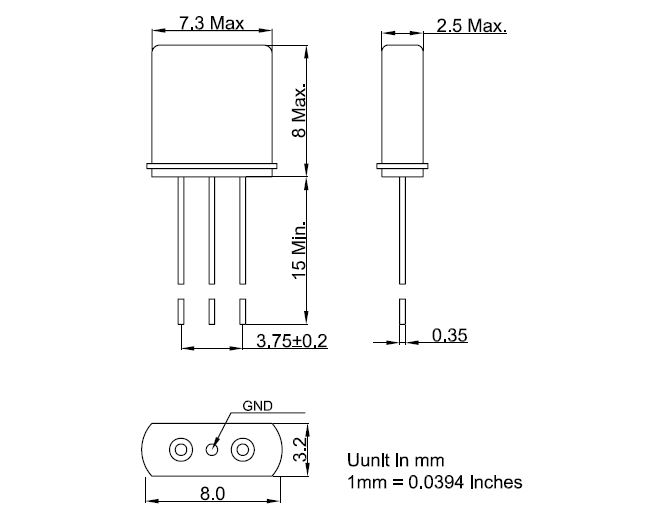

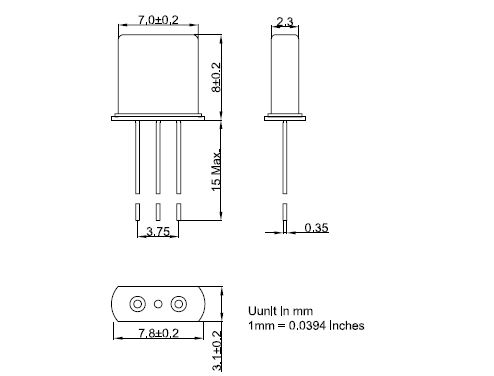

MCFUM-1CH-45MHz-A | 45 | 15 | 3 | 50 | -80 | 3 | 1 | 7.3 x 2.5 x 8.0 | ||
MCFUM-1BL-45MHz-A | 45 | 15 | 3 | 50 | -30 | 3 | 1 | 7.0 x 2.3 x 8.0 | ||

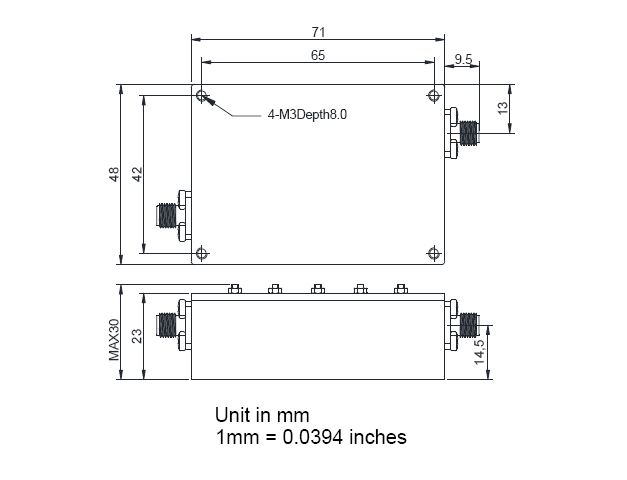

DEI5794-1621.25MHz | 1621.25 | / | / | / | 45 | 4 | 1.3 | 71.0 x 48.0 x 30.0 | ||

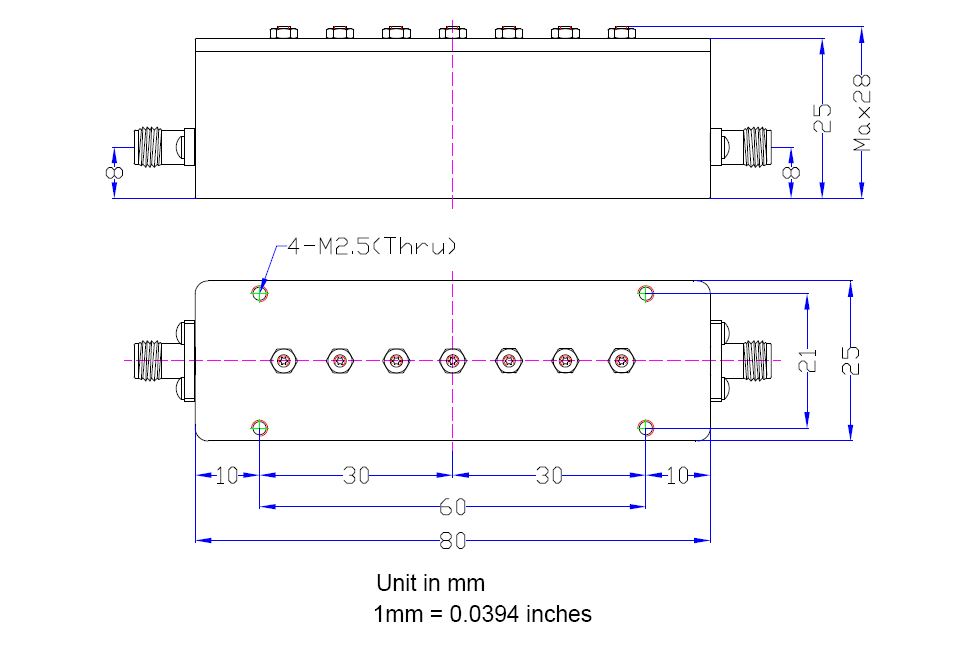

DEI8025-1767.5MHz | 1767.5 | / | / | / | 50 | 0.5 | 0.1 | 80.0 x 25.0 x 28.0 | ||

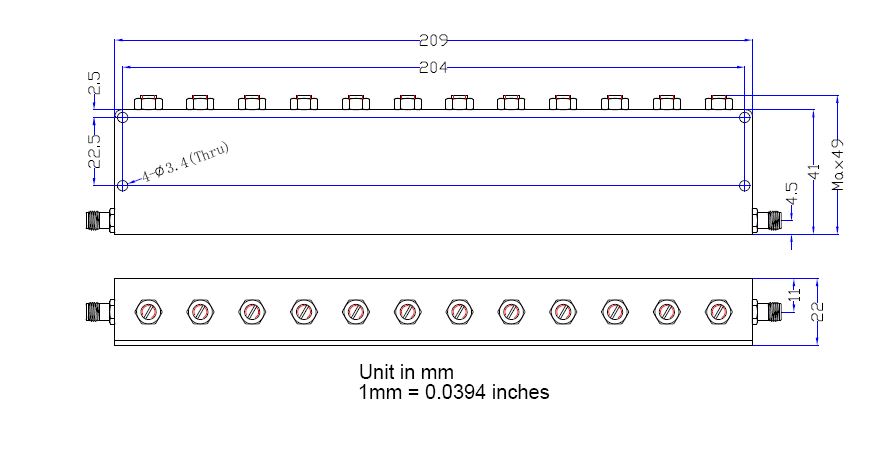

NF20941BA-2315.9MHz-2349.1MHz-A | 2315.9 to 2349.1 | / | 45 | / | / | 1 | / | 209.0 x 41.0 x 22.0 | ||

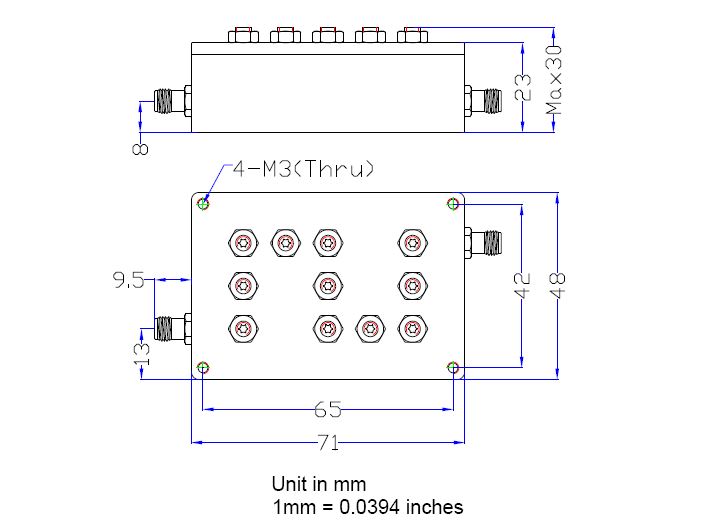

DEI5795-1621.25MHz | 1621.25 | 10500 | / | / | 45 | 4 | 1.3 | 71.0 x 48.0 x 30.0 | ||

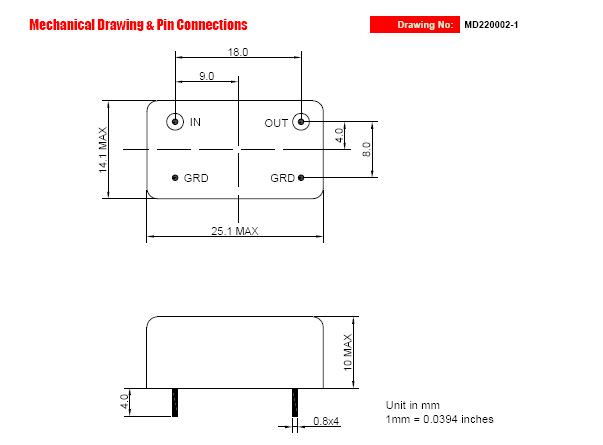

DEI5813-127.50MHz | 127.5 | 25 | 3 | 150 | -40 | 4 | 0.5 | 25.1 x 14.1 x 11.5 | ||
DEI5779-21.4MHz | 21.4 | 12.5 | 3 | 30 | -70 | 4 | 1.5 | 25.1 x 14.1 x 10.0 | ||
DEI5841-28.012MHz | 28.012 | 10 | 3 | 30 | 70 | 5 | 1 | 40.0 x 18.0 x 11.0 | ||

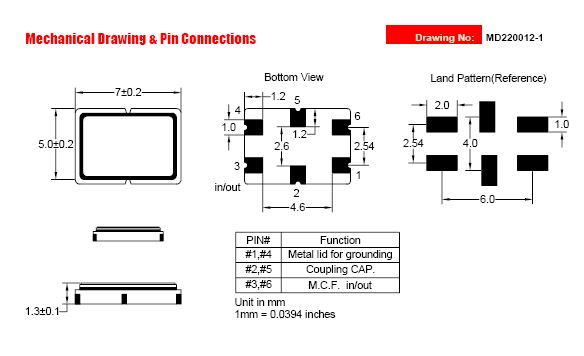

CF7500AO-45MHz-A | 45 | 6 | 3 | 12.5 | 15 | 3 | 1 | 7.0 x 5.0 x 1.3 | ||
DEI9248A-7.168MHz | 7.168 | 0.15 to 0.8 | 3 | 1 | 70 | 6 | 0.5 | 61.2 x 25.4 x 22.0 | ||
DEI5849-21.4MHz | 21.4 | 20 | 3 | 40 | -30 | 4.5 | 0.5 | 36.0 x 16.5 x 14.0 | ||
DEI5855-10MHz | 10 | 1.5 | 3 | 6 | -60 | 4 | 1 | 38.4 x 18.2 x 13.0 | ||

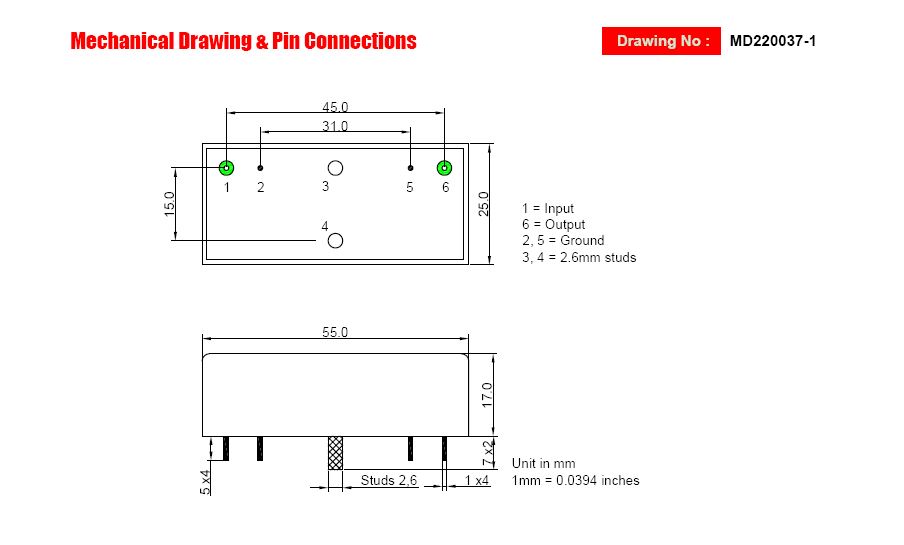

DEI5856-455KHz | 0.455 | 950 | 3 | 2 | -66 | 6 | 2 | 55.0 x 25.0 x 17.0 | ||

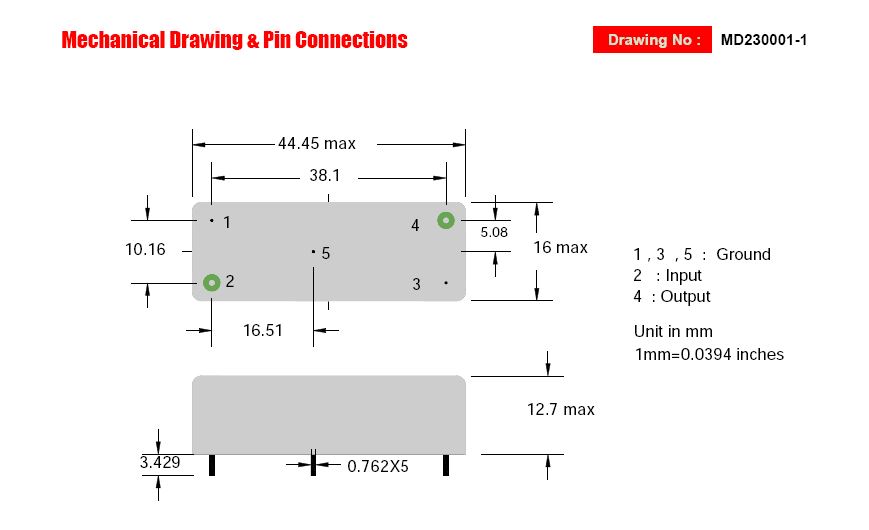

DEI5674-75MHz | 75 | 13 | 3 | 300 | 60 | 6 | 1 | 44.45 x 16.00 x 12.70 | ||
DEI5675-75MHz | 75 | 10 | 3 | 1000 | -60 | 4 | 1 | 34x14x11mm | ||
CF7500AO-50MHz-A | 50 | ±7.5(3dB通带) | 3 | 18 dB min@+/- 25 KHz | 18 | 2.0 | 1 | 7x5x1.27mm | ||
DEI9387-70MHz | 70 | ±100 | 3 | ±300 | 40 | 5 | 1 | 30.5×13×10 | ||
DEI5675-75MHz-VIB | 75 | 10 | 3 | 1000 | -60 | 4 | 1 | 34x14x11mm |
