恒温晶振 (OCXO) 温补晶振 (TCXO) 压控晶振 (VCXO) 晶体振荡器 (XO) 晶体谐振器(Crystal) 晶体滤波器(Crystal Filters) LC滤波器模块(LC Filter) 带阻滤波器(Bandstop Filter) 声表面波滤波器（SAW Filter） 腔体滤波器(Cavity Filter) 放大器(Amplifier) 滤波器组模块(Filter Bank) 压控振荡器(VCO) 时钟模块 (Timing Module) 锁相介质振荡器(PLDRO) 锁相环(PLL)
| 产品型号 | 规格书 | 产品图片 | 供电电压 (V) |
频率 (MHz) |
底部相位噪声 典型值 (dBc/Hz) @100KHz |
工作温度范围 (°C) |
封装尺寸 长 x 宽 x 高 (mm) |
年老化率（PPM） | 稳态 | 输出波形 | 频率稳定性与工作温度 |

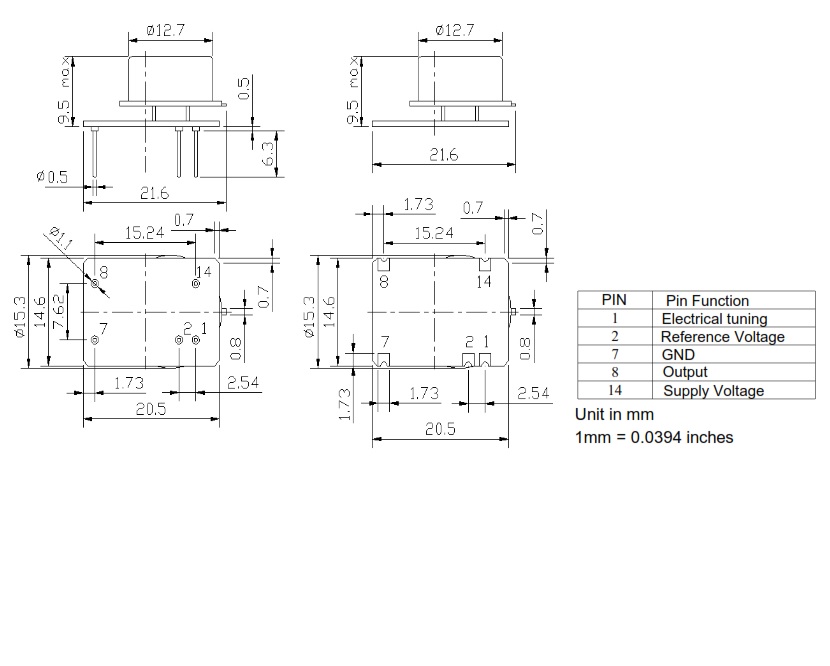

| OCXO3307AW |
|
|
3.3V or 5.0V | 8-150MHz | -172dBc/Hz | -60°C to +85°C | 21.6x15.3x9.5mm | 0.015ppm per year | 180mW Typ | HCMOS(TTL) or Sinewave | ±1.0ppb |
| OCXO3307AW-10MHz-J-V |
|
|
3.3V | 10MHz | -168dBc/Hz | -40°C to +85°C | 20.5x15.3x9.5mm | 0.02ppm per year | 35mA Typ | HCMOS | ±3.0ppb |
| OCXO3318AW-50MHz-2-6-5-7-1-1 |
|
|
3.3V | 50MHz | -165dBc/Hz | -40°C to +85°C | 16x15.24x9.5mm | ±0.2ppm per year | 50mA Max. | HCMOS | ±30ppb |
| OCXO3307AW-64MHz-A-V |
|
|
3.3V | 64MHz | -168dBc/Hz | -40°C to +85°C | 20.5x15.3x9.5mm | ±0.2ppm per year | 50mA Max. | Sinewave | ±100ppb |
| OCXO3313CV-100MHz-B-V |
|
|
3.3V | 100MHz | -163dBc/Hz | 0°C to +50°C | 16x15.3x9.5mm | ±0.3ppm per year | 60mA Max. | HCMOS | ±50ppb |
| OCXO2115CV-LP |
|
|
3.3V or 5.0V | 8-150MHz | -172dBc/Hz@100KHz | -40°C to +85°C | 20.5x15.3x9.5mm | ±0.03ppb per day | 130mW Typ | Sinewave / HCOMS | ±2ppb |
| OCXO1615CVS-LP |
|
|
3.3V or 5.0V | 8-150MHz | -172dBc/Hz@100KHz | -40°C to +85°C | 16x15.2x9.5mm | ±0.03ppb per day | 130mW Typ | Sinewave | ±2ppb |
| OCXO1615CVL-LP |
|
|
3.3V or 5.0V | 8-150MHz | -172dBc/Hz@100KHz | -40°C to +85°C | 16x15.3x7.5mm | ±0.03ppb per day | 130mW Typ | Sinewave | ±2ppb |
| OCXO1615CV-LP |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | -40°C to +85°C | 16x15.3x9.5mm | ±0.03ppb per day | 130mW Typ | Sinewave / HCMOS | ±2ppb |
| OCXO2115CVL-LP |
|
|
3.3V or 5.0V | 8-150MHz | -172dBc/Hz@100KHz | -40°C to +85°C | 20.5x15.3x7.5mm | ±0.03ppb per day | 130mW Typ | Sinewave / HCMOS | ±2ppb |
| OCXO2115CVD-LP |
|
|
3.3V or 5.0V | 8-150MHz | -172dBc/Hz@100KHz | -40°C to +85°C | 20.5x15.3x9.5mm | ±0.03ppb per day | 130mW Typ | Sinewave / HCMOS | ±2ppb |
| OCXO2522CVS-LP |
|
|
3.3V or 5.0V | 8-150MHz | -172dBc/Hz@100KHz | -40°C to +85°C | 25.4x22x11mm | ±0.03ppb per day | 130mW Typ | Sinewave / HCMOS | ±0.5ppb |
| OCXO1615CVD-LP |
|
|
3.3V or 5.0V | 8-150MHz | -172dBc/Hz@100KHz | -40°C to +85°C | 16x15.3x9.5mm | ±0.03ppb per day | 130mW Typ | Sinewave / HCMOS | ±2ppb |
| OCXO2115CVS-LP |
|
|
3.3V or 5.0V | 8-150MHz | -172dBc/Hz@100KHz | -40°C to +85°C | 20.5x15.3x9.5mm | ±0.03ppb per day | 130mW Typ | Sinewave / HCMOS | ±2ppb |
| OCXO1615CV-LP-120MHz-55622 |
|
|
5V | 120MHz | -165dBc/Hz@100KHz | -40°C to +85°C | 16x15.3x9.5mm | ±2ppb per day | 250mW Max | HCMOS | ±50ppb |
| OCXO1615CV-LP-11111 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.03ppb per day | 130mW Typ | Sinewave | ±2ppb |
| OCXO1615CV-LP-12111 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.03ppb per day | 130mW Typ | Sinewave | ±10ppb |
| OCXO1615CV-LP-13111 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.03ppb per day | 130mW Typ | Sinewave | ±20ppb |
| OCXO1615CV-LP-14111 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.03ppb per day | 130mW Typ | Sinewave | ±30ppb |
| OCXO1615CV-LP-15111 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.03ppb per day | 130mW Typ | Sinewave | ±50ppb |
| OCXO1615CV-LP-16111 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.03ppb per day | 130mW Typ | Sinewave | ±100ppb |
| OCXO1615CV-LP-11211 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.05ppb per day | 130mW Typ | Sinewave | ±2ppb |
| OCXO1615CV-LP-11311 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.1ppb per day | 130mW Typ | Sinewave | ±2ppb |
| OCXO1615CV-LP-11411 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.2ppb per day | 130mW Typ | Sinewave | ±2ppb |
| OCXO1615CV-LP-11511 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.5ppb per day | 130mW Typ | Sinewave | ±2ppb |
| OCXO1615CV-LP-11611 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±2ppb per day | 130mW Typ | Sinewave | ±2ppb |
| OCXO1615CV-LP-12211 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.05ppb per day | 130mW Typ | Sinewave | ±10ppb |
| OCXO1615CV-LP-12311 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.1ppb per day | 130mW Typ | Sinewave | ±10ppb |
| OCXO1615CV-LP-13411 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.2ppb per day | 130mW Typ | Sinewave | ±20ppb |
| OCXO1615CV-LP-13311 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.1ppb per day | 130mW Typ | Sinewave | ±20ppb |
| OCXO1615CV-LP-12611 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±2ppb per day | 130mW Typ | Sinewave | ±10ppb |
| OCXO1615CV-LP-12511 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.5ppb per day | 130mW Typ | Sinewave | ±10ppb |
| OCXO1615CV-LP-12411 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.2ppb per day | 130mW Typ | Sinewave | ±10ppb |
| OCXO1615CV-LP-13211 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.05ppb per day | 130mW Typ | Sinewave | ±20ppb |
| OCXO1615CV-LP-13611 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±2ppb per day | 130mW Typ | Sinewave | ±20ppb |
| OCXO1615CV-LP-13511 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.5ppb per day | 130mW Typ | Sinewave | ±20ppb |
| OCXO1615CV-LP-20MHz-55622 |
|
|
5V | 20MHz | -168dBc/Hz@100KHz | -40°C to +85°C | 16x15.3x9.5mm | ±0.3ppb per day | 250mW Max | HCMOS | ±50ppb |
| OCXO1615CV-LP-14211 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.05ppb per day | 130mW Typ | Sinewave | ±30ppb |
| OCXO1615CV-LP-14311 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.1ppb per day | 130mW Typ | Sinewave | ±30ppb |
| OCXO1615CV-LP-14411 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.2ppb per day | 130mW Typ | Sinewave | ±30ppb |
| OCXO1615CV-LP-14511 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.5ppb per day | 130mW Typ | Sinewave | ±30ppb |
| OCXO1615CV-LP-14611 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±2ppb per day | 130mW Typ | Sinewave | ±30ppb |
| OCXO1615CV-LP-15211 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.05ppb per day | 130mW Typ | Sinewave | ±50ppb |
| OCXO1615CV-LP-15311 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.1ppb per day | 130mW Typ | Sinewave | ±50ppb |
| OCXO1615CV-LP-15411 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.2ppb per day | 130mW Typ | Sinewave | ±50ppb |
| OCXO1615CVS-LP-10MHz-54511 |
|
|
3.3V | 10MHz | -168dBc/Hz@100KHz | -40°C to +85°C | 16x15.2x9.5mm | ±0.5ppb per day | 165mW Max | Sinewave | ±30ppb |
| OCXO1615CV-LP-16511 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.5ppb per day | 130mW Typ | Sinewave | ±100ppb |
| OCXO1615CV-LP-16411 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.2ppb per day | 130mW Typ | Sinewave | ±100ppb |
| OCXO1615CV-LP-16611 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±2ppb per day | 130mW Typ | Sinewave | ±100ppb |
| OCXO1615CV-LP-11121 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.03ppb per day | 130mW Typ | Sinewave | ±2ppb |
| OCXO1615CV-LP-15511 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.5ppb per day | 130mW Typ | Sinewave | ±50ppb |
| OCXO1615CV-LP-15611 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±2ppb per day | 130mW Typ | Sinewave | ±50ppb |
| OCXO1615CV-LP-16211 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.05ppb per day | 130mW Typ | Sinewave | ±100ppb |
| OCXO1615CV-LP-16311 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.1ppb per day | 130mW Typ | Sinewave | ±100ppb |
| OCXO1615CV-LP-12121 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.03ppb per day | 130mW Typ | Sinewave | ±10ppb |
| OCXO1615CV-LP-13121 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.03ppb per day | 130mW Typ | Sinewave | ±20ppb |
| OCXO1615CV-LP-14121 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.03ppb per day | 130mW Typ | Sinewave | ±30ppb |
| OCXO1615CV-LP-15121 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.03ppb per day | 130mW Typ | Sinewave | ±50ppb |
| OCXO1615CV-LP-16121 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.03ppb per day | 130mW Typ | Sinewave | ±100ppb |
| OCXO1615CV-LP-11221 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.05ppb per day | 130mW Typ | Sinewave | ±2ppb |
| OCXO1615CV-LP-11321 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.1ppb per day | 130mW Typ | Sinewave | ±2ppb |
| OCXO1615CV-LP-11421 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.2ppb per day | 130mW Typ | Sinewave | ±2ppb |
| OCXO1615CV-LP-11521 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.5ppb per day | 130mW Typ | Sinewave | ±2ppb |
| OCXO1615CV-LP-11621 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±2ppb per day | 130mW Typ | Sinewave | ±2ppb |
| OCXO1615CV-LP-12221 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.05ppb per day | 130mW Typ | Sinewave | ±10ppb |
| OCXO1615CV-LP-12321 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.1ppb per day | 130mW Typ | Sinewave | ±10ppb |
| OCXO1615CV-LP-12421 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.2ppb per day | 130mW Typ | Sinewave | ±10ppb |
| OCXO1615CV-LP-12521 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.5ppb per day | 130mW Typ | Sinewave | ±10ppb |
| OCXO1615CV-LP-12621 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±2ppb per day | 130mW Typ | Sinewave | ±10ppb |
| OCXO1615CV-LP-13221 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.05ppb per day | 130mW Typ | Sinewave | ±20ppb |
| OCXO1615CV-LP-13321 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.1ppb per day | 130mW Typ | Sinewave | ±20ppb |
| OCXO1615CV-LP-13421 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.2ppb per day | 130mW Typ | Sinewave | ±20ppb |
| OCXO1615CV-LP-13521 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.5ppb per day | 130mW Typ | Sinewave | ±20ppb |
| OCXO1615CV-LP-13621 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±2ppb per day | 130mW Typ | Sinewave | ±20ppb |
| OCXO1615CV-LP-15521 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.5ppb per day | 130mW Typ | Sinewave | ±50ppb |
| OCXO1615CV-LP-15621 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±2ppb per day | 130mW Typ | Sinewave | ±50ppb |
| OCXO1615CV-LP-16221 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.05ppb per day | 130mW Typ | Sinewave | ±100ppb |
| OCXO1615CV-LP-16321 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.1ppb per day | 130mW Typ | Sinewave | ±100ppb |
| OCXO1615CV-LP-14621 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±2ppb per day | 130mW Typ | Sinewave | ±30ppb |
| OCXO1615CV-LP-15221 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.05ppb per day | 130mW Typ | Sinewave | ±50ppb |
| OCXO1615CV-LP-15321 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.1ppb per day | 130mW Typ | Sinewave | ±50ppb |
| OCXO1615CV-LP-15421 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.2ppb per day | 130mW Typ | Sinewave | ±50ppb |
| OCXO2115CV-LP-100MHz-A-V |
|
|
3.3V | 100MHz | -165dBc/Hz@100KHz | -55°C to +85°C | 120.5x15.3x9.5mm | ±0.3ppm per year | 165mW Typ | Sinewave | ±50ppb |
| OCXO1615CVS-LP-10MHz-A-V |
|
|
3.3V | 10MHz | -167dBc/Hz@100KHz | -55°C to +85°C | 16x15.24x9.5mm | ±0.03ppm per year | 165mW Max | Sinewave | ±10ppb |
| OCXO1615CV-LP-16421 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.2ppb per day | 130mW Typ | Sinewave | ±100ppb |
| OCXO1615CV-LP-16521 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.5ppb per day | 130mW Typ | Sinewave | ±100ppb |
| OCXO1615CV-LP-16621 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±2ppb per day | 130mW Typ | Sinewave | ±100ppb |
| OCXO1615CV-LP-11112 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.03ppb per day | 130mW Typ | HCMOS | ±2ppb |
| OCXO1615CV-LP-14221 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.05ppb per day | 130mW Typ | Sinewave | ±30ppb |
| OCXO1615CV-LP-14421 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.2ppb per day | 130mW Typ | Sinewave | ±30ppb |
| OCXO1615CV-LP-14321 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.1ppb per day | 130mW Typ | Sinewave | ±30ppb |
| OCXO1615CV-LP-14521 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.5ppb per day | 130mW Typ | Sinewave | ±30ppb |
| OCXO1615CV-LP-12112 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.03ppb per day | 130mW Typ | HCMOS | ±10ppb |
| OCXO1615CV-LP-13112 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.03ppb per day | 130mW Typ | HCMOS | ±20ppb |
| OCXO1615CV-LP-14112 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.03ppb per day | 130mW Typ | HCMOS | ±30ppb |
| OCXO1615CV-LP-15112 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.03ppb per day | 130mW Typ | HCMOS | ±50ppb |
| OCXO1615CV-LP-16112 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.03ppb per day | 130mW Typ | HCMOS | ±100ppb |
| OCXO1615CV-LP-11212 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.05ppb per day | 130mW Typ | HCMOS | ±2ppb |
| OCXO1615CV-LP-11312 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.1ppb per day | 130mW Typ | HCMOS | ±2ppb |
| OCXO1615CV-LP-11412 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.2ppb per day | 130mW Typ | HCMOS | ±2ppb |
| OCXO1615CV-LP-11512 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.5ppb per day | 130mW Typ | HCMOS | ±2ppb |
| OCXO1615CV-LP-11612 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±2ppb per day | 130mW Typ | HCMOS | ±2ppb |
| OCXO1615CV-LP-12212 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.05ppb per day | 130mW Typ | HCMOS | ±10ppb |
| OCXO1615CV-LP-10MHz-53512 |
|
|
3.3V | 10MHz | -163dBc/Hz@100KHz | -40°C to +85°C | 16x15.3x9.5mm | ±0.5ppb per day | 115.5mW Typ | HCMOS | ±20ppb |
| OCXO1615CV-LP-12312 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.1ppb per day | 130mW Typ | HCMOS | ±10ppb |
| OCXO1615CV-LP-12412 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.2ppb per day | 130mW Typ | HCMOS | ±10ppb |
| OCXO1615CV-LP-12512 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.5ppb per day | 130mW Typ | HCMOS | ±10ppb |
| OCXO1615CV-LP-12612 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±2ppb per day | 130mW Typ | HCMOS | ±10ppb |
| OCXO1615CV-LP-13212 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.05ppb per day | 130mW Typ | HCMOS | ±20ppb |
| OCXO1615CVD-LP-10MHz-62522 |
|
|
5V | 10MHz | -172dBc/Hz@100KHz | 0°C to +70°C | 16x15.3x9.5mm | ±0.5ppb per day | 250mW Max | HCMOS | ±10ppb |
| OCXO1615CV-LP-13312 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.1ppb per day | 130mW Typ | HCMOS | ±20ppb |
| OCXO1615CV-LP-13412 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.2ppb per day | 130mW Typ | HCMOS | ±20ppb |
| OCXO1615CV-LP-13512 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.5ppb per day | 130mW Typ | HCMOS | ±20ppb |
| OCXO3313CV-100MHz-C-V |
|
|
5V | 10MHz | -165dBc/Hz@100KHz | -40°C to +85°C | 20.5x15.3x9.5mm | ±2ppb per day | 250mW Max | Sinewave | ±100ppb |
| OCXO1615CV-LP-13612 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±2ppb per day | 130mW Typ | HCMOS | ±20ppb |
| OCXO3313C-100MHz-687221 |
|
|
5V | 10MHz | -165dBc/Hz@100KHz | -40°C to +85°C | 16x15.3x9.5mm | ±2ppb per day | 250mW Max | Sinewave | ±100ppb |
| OCXO1615CV-LP-14312 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.1ppb per day | 130mW Typ | HCMOS | ±30ppb |
| OCXO1615CV-LP-14212 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.05ppb per day | 130mW Typ | HCMOS | ±30ppb |
| OCXO1615CV-LP-14412 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.2ppb per day | 130mW Typ | HCMOS | ±30ppb |
| OCXO1615CV-LP-14512 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.5ppb per day | 130mW Typ | HCMOS | ±30ppb |
| OCXO1615CV-LP-14612 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±2ppb per day | 130mW Typ | HCMOS | ±30ppb |
| OCXO1615CV-LP-15212 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.05ppb per day | 130mW Typ | HCMOS | ±50ppb |
| OCXO1615CV-LP-15312 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.1ppb per day | 130mW Typ | HCMOS | ±50ppb |
| OCXO1615CV-LP-15412 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.2ppb per day | 130mW Typ | HCMOS | ±50ppb |
| OCXO1615CV-LP-15512 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.5ppb per day | 130mW Typ | HCMOS | ±50ppb |
| OCXO1615CV-LP-15612 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±2ppb per day | 130mW Typ | HCMOS | ±50ppb |
| OCXO1615CV-LP-16212 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.05ppb per day | 130mW Typ | HCMOS | ±100ppb |
| OCXO1615CV-LP-16312 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.1ppb per day | 130mW Typ | HCMOS | ±100ppb |
| OCXO1615CV-LP-16512 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.5ppb per day | 130mW Typ | HCMOS | ±100ppb |
| OCXO1615CV-LP-16612 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±2ppb per day | 130mW Typ | HCMOS | ±100ppb |
| OCXO1615CV-LP-11122 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.03ppb per day | 130mW Typ | HCMOS | ±2ppb |
| OCXO1615CV-LP-16412 |
|
|
3.3V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.2ppb per day | 130mW Typ | HCMOS | ±100ppb |
| OCXO1615CV-LP-12122 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.03ppb per day | 130mW Typ | HCMOS | ±10ppb |
| OCXO1615CV-LP-14122 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.03ppb per day | 130mW Typ | HCMOS | ±30ppb |
| OCXO1615CV-LP-13122 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.03ppb per day | 130mW Typ | HCMOS | ±20ppb |
| OCXO1615CV-LP-15122 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.03ppb per day | 130mW Typ | HCMOS | ±50ppb |
| OCXO1615CV-LP-11522 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.5ppb per day | 130mW Typ | HCMOS | ±2ppb |
| OCXO1615CV-LP-11622 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±2ppb per day | 130mW Typ | HCMOS | ±2ppb |
| OCXO1615CV-LP-12322 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.1ppb per day | 130mW Typ | HCMOS | ±10ppb |
| OCXO1615CV-LP-12222 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.05ppb per day | 130mW Typ | HCMOS | ±10ppb |
| OCXO1615CV-LP-12422 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.2ppb per day | 130mW Typ | HCMOS | ±10ppb |
| OCXO1615CV-LP-12522 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.5ppb per day | 130mW Typ | HCMOS | ±10ppb |
| OCXO1615CV-LP-12622 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±2ppb per day | 130mW Typ | HCMOS | ±10ppb |
| OCXO1615CV-LP-13222 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.05ppb per day | 130mW Typ | HCMOS | ±20ppb |
| OCXO1615CV-LP-13322 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.1ppb per day | 130mW Typ | HCMOS | ±20ppb |
| OCXO1615CV-LP-13422 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.2ppb per day | 130mW Typ | HCMOS | ±20ppb |
| OCXO1615CV-LP-13522 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.5ppb per day | 130mW Typ | HCMOS | ±20ppb |
| OCXO1615CV-LP-13622 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±2ppb per day | 130mW Typ | HCMOS | ±20ppb |
| OCXO1615CV-LP-14222 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.05ppb per day | 130mW Typ | HCMOS | ±30ppb |
| OCXO1615CV-LP-14322 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.1ppb per day | 130mW Typ | HCMOS | ±30ppb |
| OCXO1615CV-LP-14422 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.2ppb per day | 130mW Typ | HCMOS | ±30ppb |
| OCXO1615CV-LP-14522 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.5ppb per day | 130mW Typ | HCMOS | ±30ppb |
| OCXO1615CV-LP-14622 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±2ppb per day | 130mW Typ | HCMOS | ±30ppb |
| OCXO1615CV-LP-15222 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.05ppb per day | 130mW Typ | HCMOS | ±50ppb |
| OCXO1615CV-LP-15322 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.1ppb per day | 130mW Typ | HCMOS | ±50ppb |
| OCXO1615CV-LP-15422 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.2ppb per day | 130mW Typ | HCMOS | ±50ppb |
| OCXO1615CV-LP-15522 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.5ppb per day | 130mW Typ | HCMOS | ±50ppb |
| OCXO1615CV-LP-16222 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.05ppb per day | 130mW Typ | HCMOS | ±100ppb |
| OCXO1615CV-LP-15622 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±2ppb per day | 130mW Typ | HCMOS | ±50ppb |
| OCXO1615CV-LP-16322 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.1ppb per day | 130mW Typ | HCMOS | ±100ppb |
| OCXO1615CV-LP-16422 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.2ppb per day | 130mW Typ | HCMOS | ±100ppb |
| OCXO1615CV-LP-16622 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±2ppb per day | 130mW Typ | HCMOS | ±100ppb |
| OCXO1615CV-LP-16522 |
|
|
5V | 8-150MHz | -172dBc/Hz@100KHz | 0°C to +50°C | 16x15.3x9.5mm | ±0.5ppb per day | 130mW Typ | HCMOS | ±100ppb |
| OCXO2020BM-LP-16.384MHz-A-V |
|
|
3.3V | 16.384MHz | / | -40°C to +85°C | 20.6x20.6x15.5mm | ±0.5ppb per day | 75mW Max | CMOS | ±10ppb |
| OCXO1615CV-LP-10MHz-23511 |
|
|
3.3V | 10MHz | -165dBc/Hz@100KHz | -10°C to +60°C | 16x15.3x9.5mm | ±0.5ppb per day | 130mW Typ | Sinewave | ±20ppb |
| OCXO1615CV-LP-10MHz-23521 |
|
|
5V | 10MHz | -165dBc/Hz@100KHz | -10°C to +60°C | 16x15.3x9.5mm | ±0.5ppb per day | 130mW Typ | Sinewave | ±20ppb |
| OCXO1615CV-LP-10MHz-23512 |
|
|
3.3V | 10MHz | -165dBc/Hz@100KHz | -40°C to +85°C | 16x15.3x9.5mm | ±0.5ppb per day | 130mW Typ | HCMOS | ±20ppb |
| OCXO1615CV-LP-10MHz-23522 |
|
|
5V | 10MHz | -165dBc/Hz@100KHz | -40°C to +85°C | 16x15.3x9.5mm | ±0.5ppb per day | 130mW Typ | HCMOS | ±20ppb |
| OCXO1615CVL-LP-10MHz-23511 |
|
|
3.3V | 10MHz | -165dBc/Hz@100KHz | -10°C to +60°C | 16x15.3x7.5mm | ±0.5ppb per day | 130mW Typ | Sinewave | ±20ppb |
| OCXO1615CVL-LP-10MHz-23521 |
|
|
5V | 10MHz | -165dBc/Hz@100KHz | -10°C to +60°C | 16x15.3x7.5mm | ±0.5ppb per day | 130mW Typ | Sinewave | ±20ppb |
| OCXO1615CVL-LP-10MHz-23512 |
|
|
3.3V | 10MHz | -165dBc/Hz@100KHz | -40°C to +85°C | 16x15.3x7.5mm | ±0.5ppb per day | 130mW Typ | HCMOS | ±20ppb |
| OCXO1615CVL-LP-10MHz-23522 |
|
|
5V | 10MHz | -165dBc/Hz@100KHz | -40°C to +85°C | 16x15.3x7.5mm | ±0.5ppb per day | 130mW Typ | HCMOS | ±20ppb |
| OCXO1615CV-LP-16.384MHz-23511 |
|
|
3.3V | 16.384MHz | -165dBc/Hz@100KHz | -10°C to +60°C | 16x15.3x9.5mm | ±0.5ppb per day | 130mW Typ | Sinewave | ±20ppb |
| OCXO1615CV-LP-16.384MHz-23521 |
|
|
5V | 16.384MHz | -165dBc/Hz@100KHz | -10°C to +60°C | 16x15.3x9.5mm | ±0.5ppb per day | 130mW Typ | Sinewave | ±20ppb |
| OCXO1615CV-LP-16.384MHz-57311 |
|
|
3.3V | 16.384MHz | -165dBc/Hz@100KHz | -40°C to +85°C | 16x15.3x9.5mm | ±0.1ppb per day | 130mW Typ | Sinewave | ±5ppb |
| OCXO1615CV-LP-16.384MHz-57321 |
|
|
5V | 16.384MHz | -165dBc/Hz@100KHz | -40°C to +85°C | 16x15.3x9.5mm | ±0.1ppb per day | 130mW Typ | Sinewave | ±5ppb |
| OCXO1615CV-LP-16.384MHz-23512 |
|
|
3.3V | 16.384MHz | -165dBc/Hz@100KHz | -40°C to +85°C | 16x15.3x9.5mm | ±0.5ppb per day | 130mW Typ | HCMOS | ±20ppb |
| OCXO1615CV-LP-16.384MHz-23522 |
|
|
5V | 16.384MHz | -165dBc/Hz@100KHz | -40°C to +85°C | 16x15.3x9.5mm | ±0.5ppb per day | 130mW Typ | HCMOS | ±20ppb |
| OCXO1615CV-LP-16.384MHz-57312 |
|
|
3.3V | 16.384MHz | -165dBc/Hz@100KHz | -40°C to +85°C | 16x15.3x9.5mm | ±0.1ppb per day | 130mW Typ | HCMOS | ±5ppb |
| OCXO1615CV-LP-16.384MHz-57322 |
|
|
5V | 16.384MHz | -165dBc/Hz@100KHz | -40°C to +85°C | 16x15.3x9.5mm | ±0.1ppb per day | 130mW Typ | HCMOS | ±5ppb |
| OCXO1615CVS-LP-20MHz-55512 |
|
|
3.3V | 20MHz | -163dBc/Hz@100KHz | -40°C to +85°C | 16x15.24x9.5mm | ±0.5ppb per day | 165mW Max | HCMOS | ±50ppb |
| OCXO1615CVL-LP-16.384MHz-23511 |
|
|
3.3V | 16.384MHz | -165dBc/Hz@100KHz | -10°C to +60°C | 16x15.3x7.5mm | ±0.5ppb per day | 130mW Typ | Sinewave | ±20ppb |
| OCXO1615CVL-LP-16.384MHz-23521 |
|
|
5V | 16.384MHz | -165dBc/Hz@100KHz | -10°C to +60°C | 16x15.3x7.5mm | ±0.5ppb per day | 130mW Typ | Sinewave | ±20ppb |
| OCXO1615CVL-LP-16.384MHz-23512 |
|
|
3.3V | 16.384MHz | -165dBc/Hz@100KHz | -40°C to +85°C | 16x15.3x7.5mm | ±0.5ppb per day | 130mW Typ | HCMOS | ±20ppb |
| OCXO1615CVL-LP-16.384MHz-23522 |
|
|
5V | 16.384MHz | -165dBc/Hz@100KHz | -40°C to +85°C | 16x15.3x7.5mm | ±0.5ppb per day | 130mW Typ | HCMOS | ±20ppb |
| OCXO1615CV-LP-10MHz-57311 |
|
|
3.3V | 10MHz | -165dBc/Hz@100KHz | -40°C to +85°C | 16x15.3x9.5mm | ±0.1ppb per day | 130mW Typ | Sinewave | ±5ppb |
| OCXO1615CV-LP-10MHz-57321 |
|
|
5V | 10MHz | -165dBc/Hz@100KHz | -40°C to +85°C | 16x15.3x9.5mm | ±0.1ppb per day | 130mW Typ | Sinewave | ±5ppb |
| OCXO1615CV-LP-10MHz-57312 |
|
|
3.3V | 10MHz | -165dBc/Hz@100KHz | -40°C to +85°C | 16x15.3x9.5mm | ±0.1ppb per day | 130mW Typ | HCMOS | ±5ppb |
| OCXO1615CV-LP-10MHz-57322 |
|
|
5V | 10MHz | -165dBc/Hz@100KHz | -40°C to +85°C | 16x15.3x9.5mm | ±0.1ppb per day | 130mW Typ | HCMOS | ±5ppb |
| OCXO2115CV-LP-24MHz-55511 |
|
|
3.3V | 24MHz | -165dBc/Hz@100KHz | -40°C to +85°C | 20.5x15.3x7.5mm | ±0.5ppb per day | 165mW Max | Sinewave | ±50ppb |
| OCXO3307AW-125MHz-679222 |
|
|
5V | 125MHz | -165dBc/Hz@100KHz | -40°C to +85°C | 20.5x15.3x9.5mm | ±5ppb per day | 250mW Max | Sinewave | ±30ppb |
| OCXO1615CV-LP-10MHz-23411 |
|
|
3.3V | 10MHz | -165dBc/Hz@100KHz | -10°C to +60°C | 16x15.3x9.5mm | ±0.2ppb per day | 130mW Typ | Sinewave | ±20ppb |
扫描二维码关注微信公众号
您可以获得：
1.更高效的沟通体验
2.更快捷的报价通知
3.更方便的接询单体验
