| 产品型号 | 规格书 | 产品图片 | 供电电压 (V) |
频率 (MHz) |
底部相位噪声 典型值 (dBc/Hz) @100KHz |
输出功率(dBm) | 调谐电压(Vdc) | 电流(mA) | 工作温度范围(°C) | 封装尺寸长 x 宽 x 高(mm) |

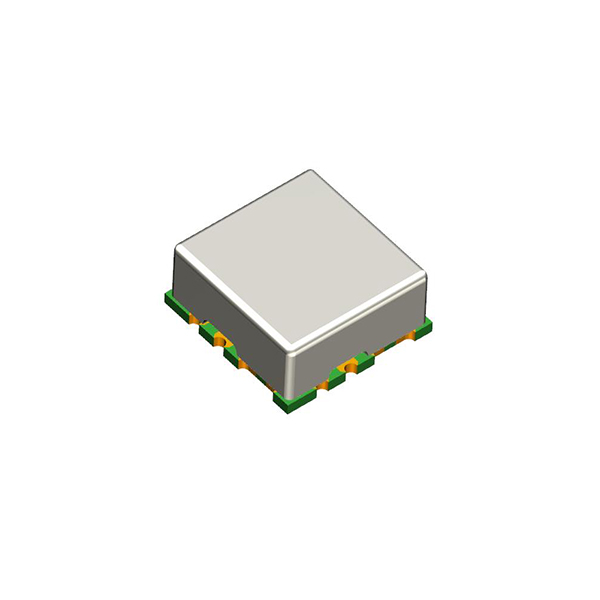

| VCO1212BQ-2000MHz-3800MHz-B |
|
|
5.0V | 2000-3800MHz | -106dBc/Hz@100KHz | +8.5dBm Max | 0.5-16V | 70mA Max | -40°C--+85°C | 12.7x12.7x3.9mm |

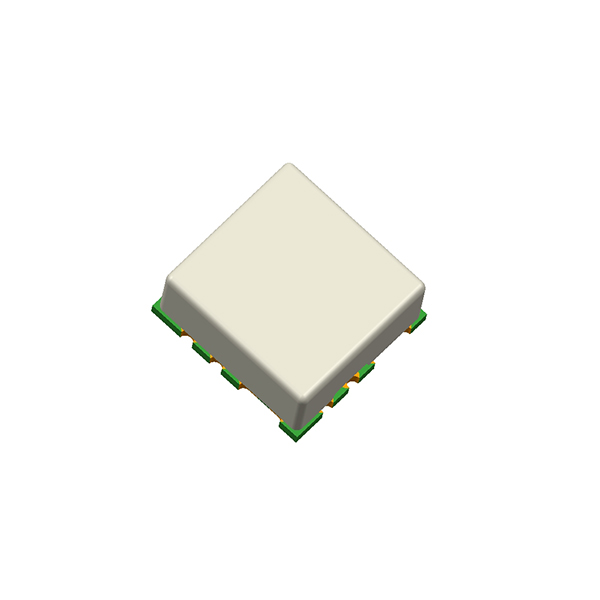

| VCO1212BQ-1030MHz-1060MHz-A |
|
|
5.0V | 1030-1060MHz | -107dBc/Hz@100KHz | +7.0dBm Max | 0.5-4.5V | 25mA Typ | -40°C--+85°C | 12.7x12.7x3.9mm |
| VCO1212BQ-1850MHz-2050MHz-A |
|
|
5.0V | 1850-2050MHz | -105dBc/Hz@10KHz | +5.0dBm Typ | 1.0-14V | 30mA Typ | -40°C--+85°C | 12.7x12.7x5.9mm |
| VCO1212BQ-5000MHz-5500MHz-A |
|
|
5.0V | 5000-5500MHz | -76dBc/Hz@10KHz | +4.0dBm Max | 0-10V | 30mA Max | -40°C--+85°C | 12.7x12.7x3.9mm |
| VCO1212BQ-5500MHz-6000MHz-A |
|
|
5.0V | 5500-6000MHz | -74dBc/Hz@10KHz | +4.0dBm Max | 0-10V | 30mA Max | -40°C--+85°C | 12.7x12.7x3.9mm |
| VCO1212BQ-1085MHz-1320MHz-A |
|
|
5.0V | 1085-1320MHz | -111dBc/Hz@100KHz | +7.5dBm Max | 0.5-4.5V | 30mA Max | -40°C--+85°C | 12.7x12.7x3.9mm |
| VCO1212BQ-120MHz-130MHz-A |
|
|
5.0V | 120-130MHz | -123dBc/Hz@100KHz | +7.5dBm Max | 1.0-4.0V | 20mA Max | -40°C--+85°C | 12.7x12.7x3.9mm |
| VCO1212BQ-1390MHz-1410MHz-A |
|
|
8V | 1390-1410MHz | -140dBc/Hz@100KHz | 7dBm Typ | 0-12V | 50mA Max | -40°C--+85°C | 12.7x12.7x5.9mm |
| VCO1212BQ-734MHz-804MHz-A |
|
|
5.0V | 734-804MHz | -108dBc/Hz@10KHz | +6.0dBm Max | 0-5.0V | 25mA Max | -40°C--+85°C | 12.7x12.7x3.9mm |
| VCO1212BQ-830MHz-970MHz-A |
|
|
5.0V | 830-970MHz | -102dBc/Hz@10KHz | +7.0dBm Max | 0-5V | 25mA Max | -30°C--+80°C | 12.7x12.7x3.9mm |
| VCO1212BQ-1700MHz-2150MHz-A |
|
|
5.0V | 1700-2150MHz | -88dBc/Hz@10KHz | +6.0dBm Typ | 0-16V | 35mA Max | -40°C--+85°C | 12.7x12.7x3.9mm |
| VCO1212BQ-1000MHz-1500MHz-A |
|
|
5.0V | 1000-1500MHz | -98dBc/Hz@100KHz | +9.0dBm Max | 0-20V | 35mA Max | -40°C--+85°C | 12.7x12.7x3.9mm |
| VCO1212BQ-1500MHz-2150MHz-A |
|
|
5.0V | 1500-2150MHz | -112dBc/Hz@100KHz | +9.0dBm Max | 0-20V | 35mA Max | -40°C--+85°C | 12.7x12.7x3.9mm |
| VCO1212BQ-800MHz-1600MHz-A |
|
|
5.0V | 800-1600MHz | -115dBc/Hz@100KHz | +6.0dBm Typ | 0-18V | 50mA Max | -40°C--+85°C | 12.7x12.7x3.9mm |
| VCO1212BQ-4540MHz-4860MHz-A |
|
|
5.0V | 4540-4860MHz | -110dBc/Hz@100KHz | +3dBm Typ | 0-8V | 40mA Max | -40°C--+85°C | 12.7x12.7x3.9mm |
| VCO1212BQ-882MHz-915MHz-A |
|
|
5.0V | 882-915MHz | -106dBc/Hz@10KHz | +6.5dBm Max | 0.5-4.5V | 25mA Max | -40°C--+85°C | 12.7x12.7x3.9mm |
| VCO1212BQ-702MHz-735MHz-A |
|
|
5.0V | 702-735MHz | -107dBc/Hz@10KHz | +6.5dBm Max | 0.5-4.5V | 25mA Max | -40°C--+85°C | 12.7x12.7x3.9mm |
| VCO1212BQ-4540MHz-4860MHz-B |
|
|
5.0V | 4540-4860MHz | -107dBc/Hz@100KHz | +3.0dBm Max | 0-6V | 40mA Max | -40°C--+80°C | 12.7x12.7x3.9mm |
| VCO1212BQ-240MHz-760MHz-A |
|
|
5.0V | 240-760MHz | -106dBc/Hz@10KHz | +8dBm Typ | 0.5-24V | 23mA Typ | -40°C--+85°C | 12.7x12.7x3.9mm |
| VCO1212BQ-3125MHz-3275MHz-A |
|
|
6V | 3125-3275MHz | -107dBc/Hz@10KHz | +7dBm Typ | 0.5-4.5V | 40mA Typ | -40°C--+85°C | 12.7x12.7x5.9mm |
| VCO1212BQ-169MHz-179MHz-A |
|
|
3V | 169-179MHz | -137dBc/Hz@100KHz | +2.5dBm Typ | 0.5-4.5V | 8.5mA Typ | -40°C--+80°C | 12.7x12.7x3.9mm |
| VCO1212BQ-440MHz-460MHz-A |
|
|
5.0V | 440-460MHz | -135dBc/Hz@100KHz | +5.0dBm Typ | 0.5-4.5V | 27mA Typ | -40°C--+85°C | 12.7x12.7x3.9mm |
| VCO1212BQ-845MHz-875MHz-A |
|
|
5.0V | 845-875MHz | -133dBc/Hz@100KHz | +3.5dBm Typ | 1-4V | 15mA Typ | -40°C--+85°C | 12.7x12.7x3.9mm |
| VCO1212BQ-658MHz-757MHz-A |
|
|
8V | 658-757MHz | -135dBc/Hz@100KHz | +5.0dBm Typ | 1-12V | 27mA Typ | -40°C--+85°C | 12.7x12.7x3.9mm |
| VCO1212BQ-5500MHz-5815MHz-A |
|
|
5.0V | 5500-5815MHz | -113dBc/Hz@100KHz | 0dBm Typ | 0.5-4.5V | 30mA Typ | -30°C--+70°C | 12.7x12.7x3.9mm |
| VCO1212BQ-1900MHz-4100MHz-A |
|
|
5.0V | 1900-4100MHz | -111dBc/Hz@100KHz | +5.0dBm Typ | 0.5-18V | 55mA Typ | -20°C--+70°C | 12.7x12.7x3.9mm |
| VCO1212BQ-1345MHz-1375MHz-A |
|
|
5.0V | 1345-1375MHz | -128dBc/Hz@100KHz | -1dBm Typ | 0.5-4.5V | 22mA Typ | -40°C--+85°C | 12.7x12.7x3.9mm |
| VCO1212BQ-1048MHz-1058MHz-A |
|
|
5.0V | 1048-1058MHz | -129dBc/Hz@100KHz | +3dBm Typ | 0.5-4.5V | 21mA Typ | -40°C--+85°C | 12.7x12.7x3.9mm |
| VCO1212BQ-2000MHz-2100MHz-A |
|
|
5.0V | 2000-2100MHz | -127dBc/Hz@100KHz | 0dBm Typ | 0.5-4.5V | 27mA Typ | -40°C--+80°C | 12.7x12.7x3.9mm |
| VCO1212BQ-2033MHz-2286MHz-A |
|
|
5.0V | 2033-2286MHz | -124dBc/Hz@100KHz | 0dBm Typ | 1-22V | 25mA Typ | -40°C--+85°C | 12.7x12.7x3.9mm |
| VCO1212BQ-2996MHz-3032MHz-A |
|
|
5.0V | 2996-3032MHz | -118dBc/Hz@100KHz | +1dBm Typ | 0-5V | 40mA Max | -40°C--+85°C | 12.7x12.7x3.9mm |
| VCO1212BQ-2300MHz-2450MHz-A |
|
|
5.0V | 2300-2450MHz | -125dBc/Hz@100KHz | +4dBm Typ | 0.5-4.5V | 30mA Max | -40°C--+85°C | 12.7x12.7x5.9mm |
| VCO1212BQ-2740MHz-2940MHz-A |
|
|
5.0V | 2740-2940MHz | -120dBc/Hz@100KHz | +8dBm Typ | 0.5-4.5V | 27mA Typ | -40°C--+85°C | 12.7x12.7x3.9mm |
| VCO1212QB-1800MHz-3200MHz-A |
|
|
5.0V | 1800-3200MHz | -100dBc/Hz@10KHz | +4dBm Typ | 0-13V | 70mA Max | -40°C--+85°C | 12.7x12.7x3.9mm |
| VCO1212QB-1800MHz-3200MHz-B |
|
|
5.0V | 1800-3200MHz | -105dBc/Hz@10KHz | +4dBm Typ | 0-20V | 70mA Max | -40°C--+85°C | 12.7x12.7x3.9mm |
| VCO1212BQ-876MHz-915MHz-A |
|
|
5.0V | 876-915MHz | -135dBc/Hz@100KHz | 0dBm Typ | 0.5-4.5V | 25mA Max | -40°C--+85°C | 12.7x12.7x3.9mm |
| VCO1212BQ-3010MHz-3080MHz-A |
|
|
5.0V | 3010-3080MHz | -124dBc/Hz@100KHz | +3dBm Typ | 0.5-4.5V | 27mA Max | -40°C--+85°C | 12.7x12.7x3.9mm |
| VCO1212BQ-1369MHz-1484MHz-A |
|
|
6V | 1369-1484MHz | -131dBc/Hz@100KHz | +7dBm Typ | 0.5-4.5V | 27mA Typ | -40°C--+85°C | 12.7x12.7x3.9mm |
| VCO1212BQ-1570MHz-1630MHz-A |
|
|
5.0V | 1570-1630MHz | -135dBc/Hz@100KHz | +7dBm Typ | 0.5-4.5V | 25mA Typ | -40°C--+85°C | 12.7x12.7x3.9mm |
| VCO1212BQ-1780MHz-A |
|
|
8V | 1780MHz | -143dBc/Hz@100KHz | +7dBm Typ | 0.5-4.5V | 28mA Typ | -40°C--+85°C | 12.7x12.7x5.9mm |
| VCO1212BQ-532MHz-595MHz-A |
|
|
5.0V | 532-595MHz | -123dBc/Hz@100KHz | +3dBm Typ | 0.2-4.8V | 25mA Max | -40°C--+85°C | 12.7x12.7x3.9mm |
| VCO1212BQ-532MHz-595MHz-B |
|
|
5.0V | 532-595MHz | -125dBc/Hz@100KHz | +3dBm Typ | 0-10V | 25mA Max | -40°C--+85°C | 12.7x12.7x3.9mm |
| VCO1212BQ-1800MHz-A |
|
|
6V | 1800MHz | -144dBc/Hz@100KHz | +6dBm Typ | 0.5-4.5V | 27mA Typ | -40°C--+85°C | 12.7x12.7x3.9mm |
| VCO1212BQ-1800MHz-1900MHz-A |
|
|
5.0V | 1800-1900MHz | -129dBc/Hz@100KHz | +7dBm Typ | 0-4.5V | 21mA Typ | -40°C--+85°C | 12.7x12.7x3.9mm |
| VCO1212BQ-2390MHz-2680MHz-A |
|
|
6V | 2390-2680MHz | -125dBc/Hz@100KHz | +7dBm Typ | 1-10V | 28mA Typ | -40°C--+85°C | 12.7x12.7x3.9mm |
| VCO1212BQ-902MHz-922MHz-A |
|
|
8V | 902-922MHz | -145dBc/Hz@100KHz | +5.0dBm Typ | 0.5-10V | 26mA Typ | -40°C--+85°C | 12.7x12.7x5.9mm |
| VCO1212BQ-1248MHz-A |
|
|
5.0V | 1248MHz | -143dBc/Hz@100KHz | +7dBm Typ | 0.5-4.5V | 24mA Typ | -40°C--+85°C | 12.7x12.7x3.9mm |
| VCO1212BQ-2525MHz-2800MHz-A |
|
|
6V | 2525-2800MHz | -127dBc/Hz@100KHz | +5.0dBm Typ | 1-12V | 27mA Typ | -40°C--+85°C | 12.7x12.7x3.9mm |
| VCO1212BQ-2500MHz-2950MHz-A |
|
|
6V | 2500-2950MHz | -125dBc/Hz@100KHz | +7dBm Typ | 0-15V | 27mA Typ | -40°C--+85°C | 12.7x12.7x3.9mm |
| VCO1212BQ-2800MHz-A |
|
|
8V | 2800MHz | -138dBc/Hz@100KHz | +7dBm Typ | 0.5-4.5V | 30mA Typ | -40°C--+85°C | 12.7x12.7x3.9mm |
| VCO1212BQ-3400MHz-A |
|
|
5.0V | 3400MHz | -120dBc/Hz@100KHz | 0dBm Typ | 0.5-4.5V | 27mA Max | -40°C--+85°C | 12.7x12.7x3.9mm |
| VCO1212BQ-2025MHz-2400MHz-A |
|
|
6V | 2025-2400MHz | -126dBc/Hz@100KHz | +5.0dBm Typ | 1-14V | 28mA Typ | -40°C--+85°C | 12.7x12.7x3.9mm |
| VCO1212BQ-2160MHz-2360MHz-A |
|
|
5.0V | 2160-2360MHz | -126dBc/Hz@100KHz | +5.0dBm Typ | 0.5-4.5V | 26mA Typ | -40°C--+85°C | 12.7x12.7x3.9mm |
| VCO1212BQ-1800MHz-B |
|
|
6V | 1800MHz | -130dBc/Hz@100KHz | +6.0dBm Typ | 0.5-4.5V | 40mA Max | -40°C--+85°C | 12.7x12.7x5.9mm |
| VCO1212BQ-125MHz-135MHz-A |
|
|
5.0V | 125-135MHz | -133dBc/Hz@100KHz | +11dBm Typ | 0.5-4.5V | 15mA Typ | -40°C--+85°C | 12.7x12.7x3.9mm |
| VCO1212BQ-91.5MHz-A |
|
|
5.0V | 91.5MHz | -140dBc/Hz@100KHz | +5.0dBm Typ | 0.5-2.2V | 7mA Typ | -40°C--+85°C | 12.7x12.7x3.9mm |
